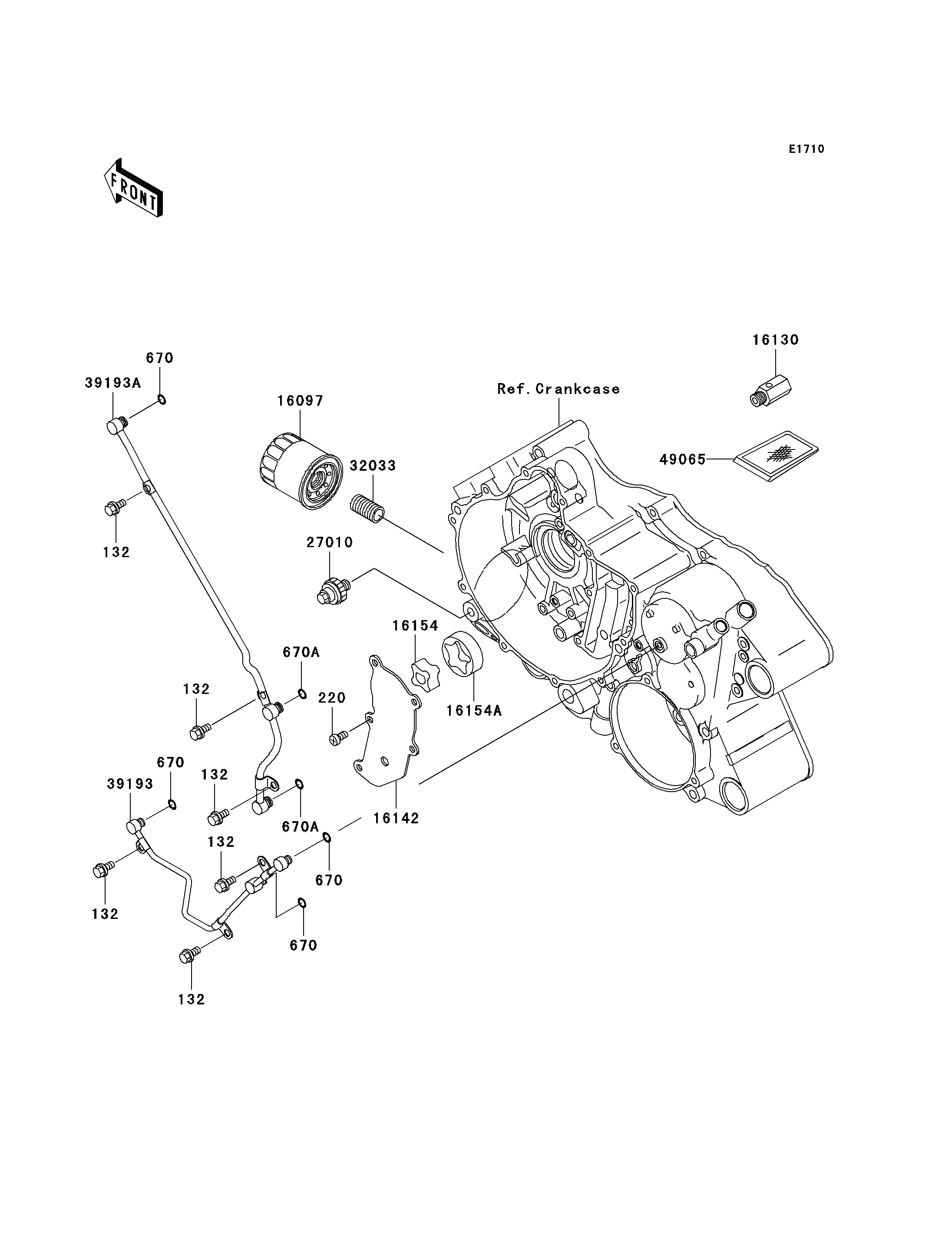

2003 Prairie 360 - Oil Pump/Oil Filter
132
132
132
132
132
132
220
670
670
670
670
670A
670A
16097
16130
16142
16154
16154A
27010
32033
39193
39193A
49065
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132Y0612 | 6 | ||
| SCREW-PAN-CROS,6X12 | 220 | 220B0612 | 5 | ||
| O RING | 670 | 670D1505 | 4 | ||
| O RING,7MM | 670A | 670D1507 | 2 | ||
| FILTER-ASSY-OIL | 16097 | 16097-1072 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1058 | 1 | ||
| COVER-PUMP,OIL | 16142 | 16142-1170 | 1 | ||
| ROTOR-PUMP,INNER | 16154 | 16154-1128 | 1 | ||
| ROTOR-PUMP,OUTER | 16154A | 16154-1129 | 1 | ||
| SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
| PIPE,OIL FILTER | 32033 | 32033-1535 | 1 | ||
| PIPE-OIL,CRANKCASE | 39193 | 39193-1060 | 1 | ||
| PIPE-OIL,CRANKSHAFT | 39193A | 39193-1068 | 1 | ||
| FILTER-OIL | 49065 | 49065-1086 | 1 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| O RING | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| O RING,7MM | |
| REF # | 670A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FILTER-ASSY-OIL | |
| REF # | 16097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-RELIEF | |
| REF # | 16130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP,OIL | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR-PUMP,INNER | |
| REF # | 16154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR-PUMP,OUTER | |
| REF # | 16154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,OIL PRESSURE | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE,OIL FILTER | |
| REF # | 32033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-OIL,CRANKCASE | |
| REF # | 39193 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-OIL,CRANKSHAFT | |
| REF # | 39193A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-OIL | |
| REF # | 49065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
