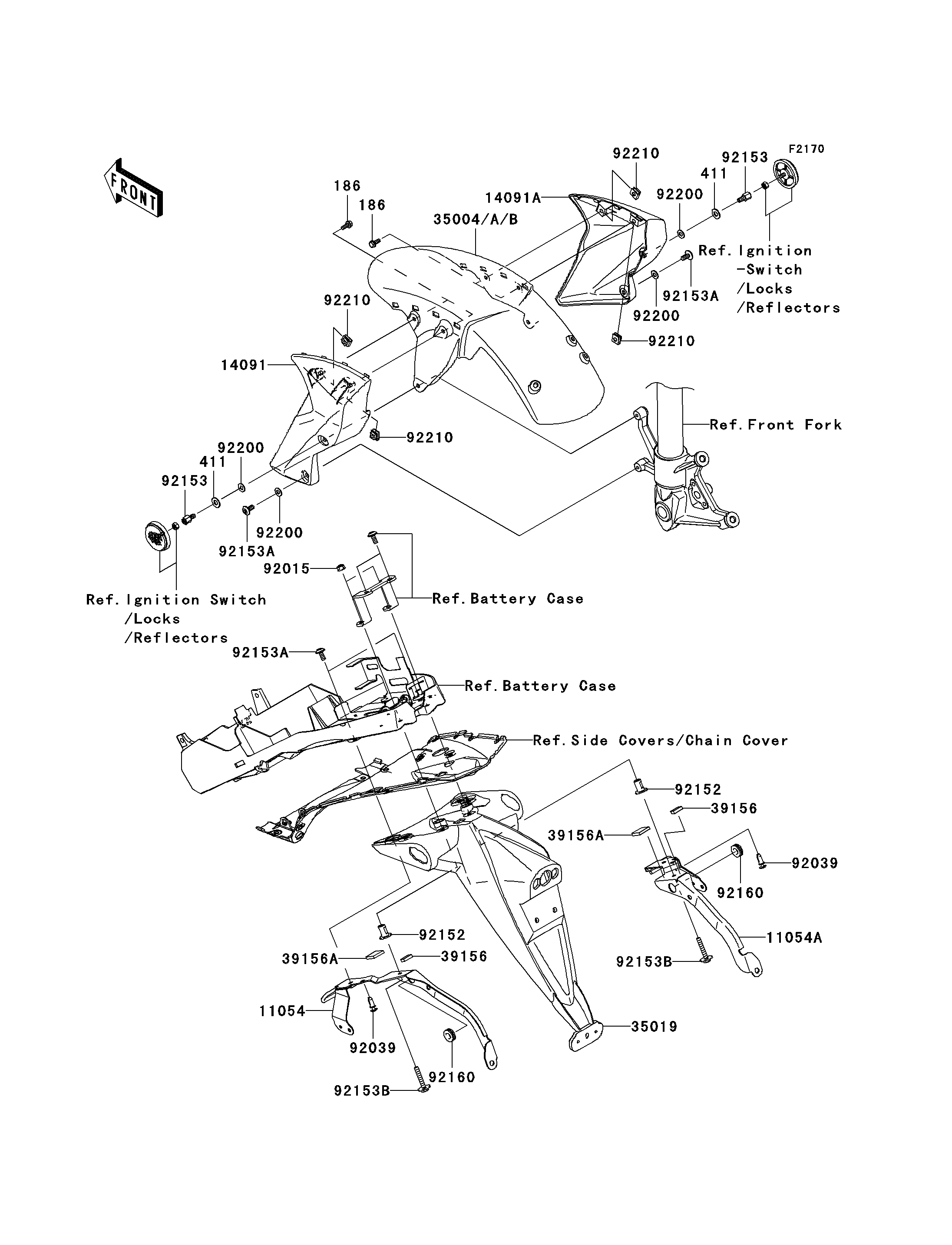

2007 Z1000 - Fenders

DOWNLOAD PDF
SELECT A NEW PART
186
186
411
411
11054
11054A
14091
14091A
35004
35019
39156
39156
39156A
39156A
92015
92039
92039
92152
92152
92153
92153
92153A
92153A
92153A
92153B
92153B
92160
92160
92200
92200
92200
92200
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WP,5X14 186 186BA0514 4
WASHER-PLAIN,6MM,BLACK 411 411F0600 2
BRACKET,FLAP,LH 11054 11054-1923 1
BRACKET,FLAP,RH 11054A 11054-1924 1
COVER,FRONT FENDER,LH,F.BLACK 14091 14091-0565-6Z 1
COVER,FRONT FENDER,RH,F.BLACK 14091A 14091-0566-6Z 1
FENDER-FRONT,M.BLACK 35004 35004-0070-17K 1
FLAP 35019 35019-0047 1
PAD 39156 39156-0284 2
PAD 39156A 39156-0285 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
RIVET 92039 92039-1286 2
COLLAR 92152 92152-0577 2
BOLT,6MM 92153 92153-0335 2
BOLT,SOCKET,6X14 92153A 92153-1612 4
BOLT,6X35 92153B 92153-1873 2
DAMPER 92160 92160-1278 2
WASHER,6.5X14X1 92200 92200-1388 4
NUT,5MM 92210 92210-1266 4
