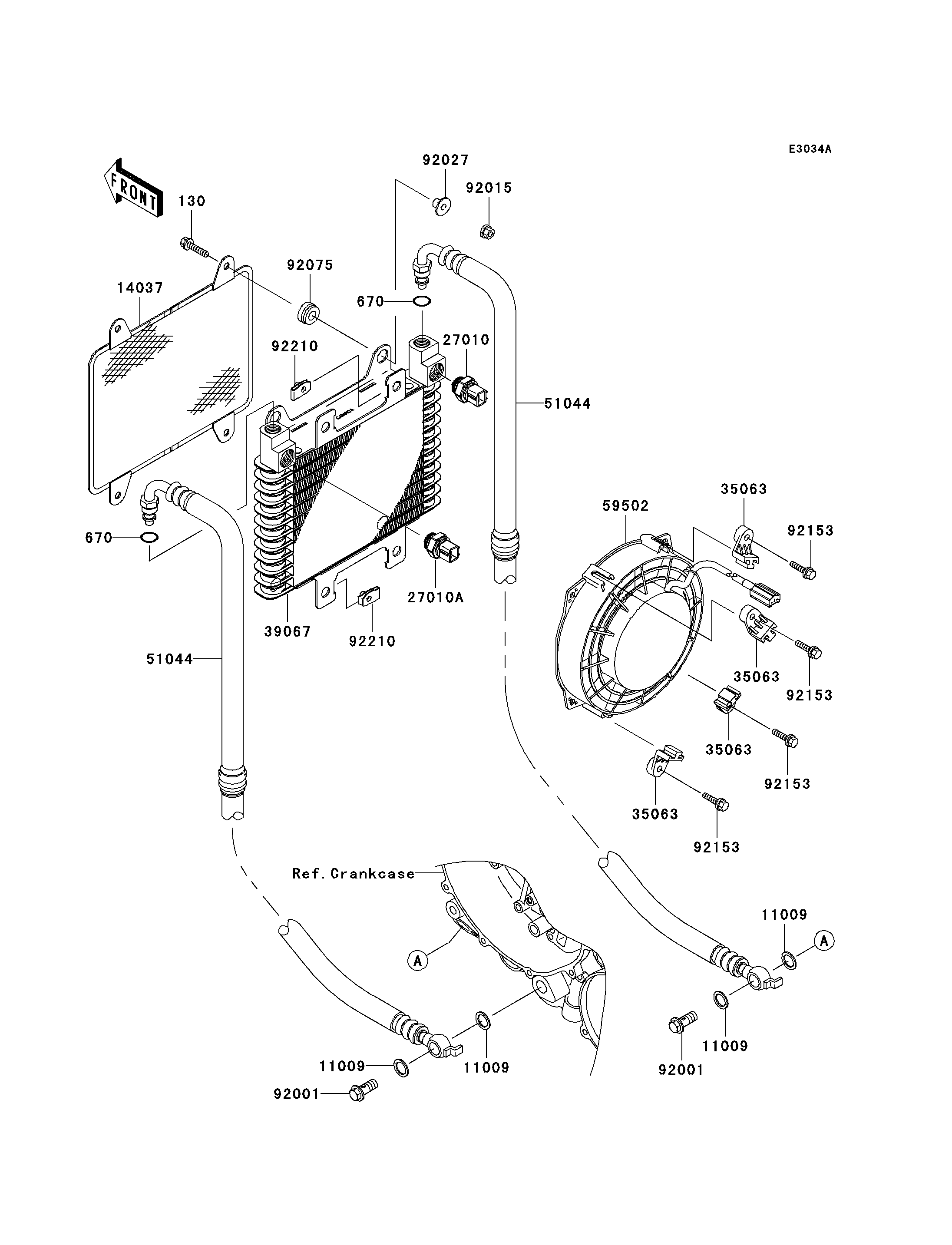

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 4
O RING,8MM 670 670D1508 2
GASKET,14X19.5X1.4 11009 11009-1461 4
SCREEN,OIL COOLER 14037 14037-1313 1
SWITCH,OIL COOLER,RH 27010 27010-0005 1
SWITCH,OIL COOLER,LH 27010A 27010-0006 1
STAY 35063 35063-1212 4
COOLER-OIL 39067 39067-0002 1
TUBE-ASSY,L=1080 51044 51044-1227 2
FAN-ASSY 59502 59502-1138 1
BOLT,14X28.5 92001 92001-1930 2
NUT,FLANGED,6MM 92015 92015-1193 4
COLLAR 92027 92027-1767 4
DAMPER 92075 92075-277 4
BOLT,6X22 92153 92153-1087 4
NUT 92210 92210-1331 4
