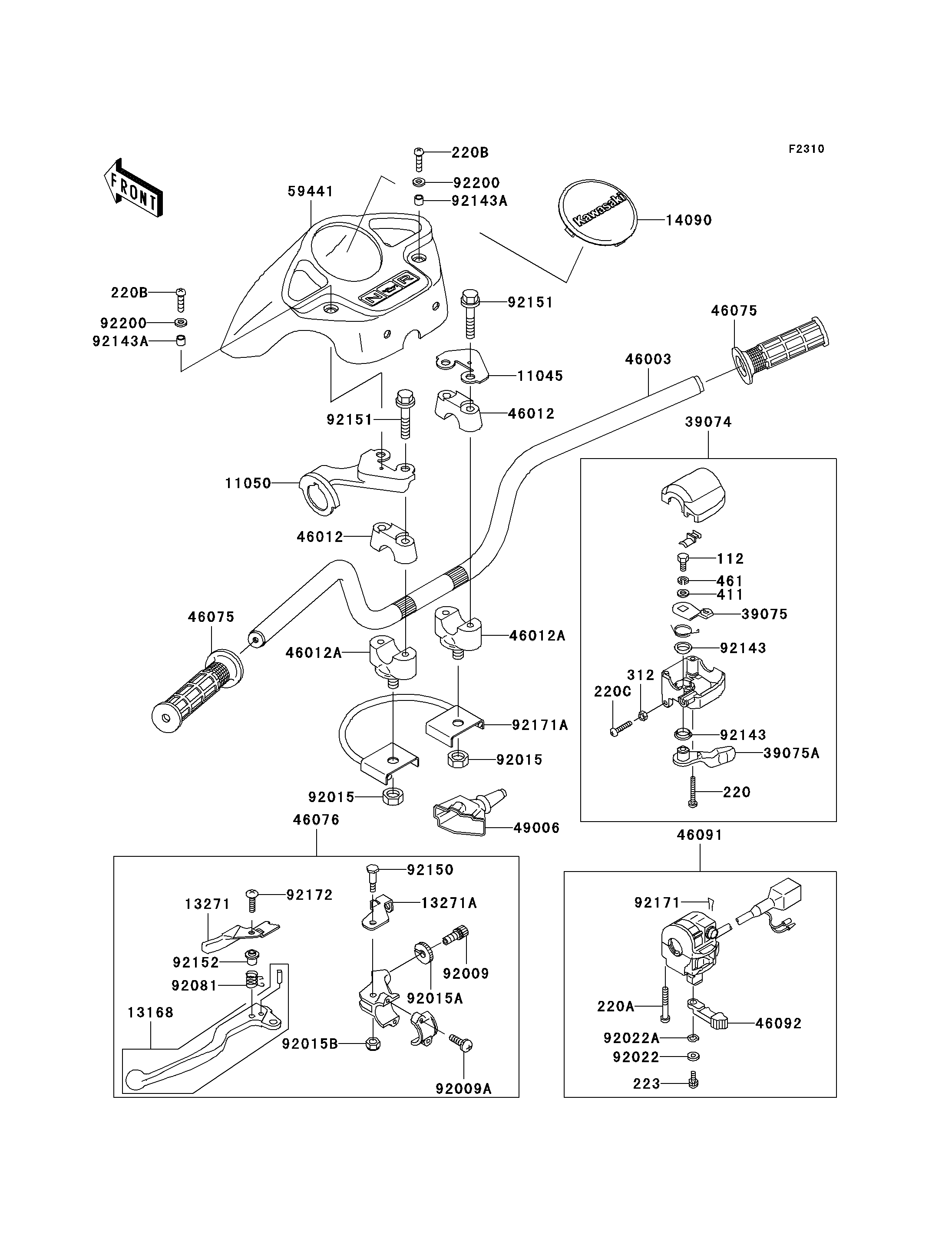

2003 Prairie 360 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
112
220
220
220A
220A
220B
220B
220B
220B
220C
220C
11045
11045
11050
11050
13168
13168
13271
13271
13271A
13271A
14090
14090
39074
39074
39075
39075
39075A
39075A
46003
46003
46012
46012
46012
46012
46012A
46012A
46012A
46012A
46075
46075
46075
46075
46076
46076
46091
46091
46092
46092
49006
49006
59441
59441
92009
92009
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92022
92022
92022A
92022A
92081
92081
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92150
92150
92151
92151
92151
92151
92152
92152
92171
92171
92171A
92171A
92172
92172
92200
92200
92200
92200
223
223
312
312
411
411
461
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X14 112 112D0614 1
SCREW-PAN-CROS,5X30 220 220C0530 2
SCREW-PAN-CROS,5X35 220A 220C0535 2
SCREW-PAN-CROSS,4X16 220B 220F0416 2
SCREW-PAN-CROSS,6X30 220C 220F0630 1
BRACKET,HANDLE COVER 11045 11045-1925 1
BRACKET,HANDLE COVER,LH 11050 11050-1727 1
LEVER,LH 13168 13168-1672 1
PLATE,LEVER LOCK 13271 13271-0011 1
PLATE,LOCK 13271A 13271-1259 1
COVER,BLIND CAP,F.BLACK 14090 14090-1945-6Z 1
LEVER-ASSY-THROTTLE 39074 39074-1055 1
LEVER-THROTTLE,ARM 39075 39075-1054 1
LEVER-THROTTLE 39075A 39075-1059 1
HANDLE 46003 46003-7503 1
HOLDER-HANDLE 46012 46012-1168 2
HOLDER-HANDLE 46012A 46012-7501 2
GRIP,HANDLE 46075 46075-7501 2
LEVER-ASSY-GRIP,LH 46076 46076-1224 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1848 1
LEVER-GRIP,CHOKE 46092 46092-1217 1
BOOT 49006 49006-1261 1
COVER-HANDLE,F.BLACK 59441 59441-7501-6Z 1
SCREW,CABLE ADJUST,8MM 92009 92009-1435 1
SCREW,6X20 92009A 92009-1841 2
NUT,LOCK,10MM 92015 92015-1429 2
NUT,CABLE ADJUST LOCK,8MM 92015A 92015-1596 1
NUT 92015B 92015-1829 1
WASHER,5MM 92022 92022-1837 1
WASHER,WAVE,5MM 92022A 92022-1838 1
SPRING,LOCK RETURN 92081 92081-1358 1
COLLAR 92143 92143-1138 2
COLLAR,5.6X8X7 92143A 92143-1336 2
BOLT 92150 92150-1420 1
BOLT,FLANGED,8X40 92151 92151-2130 4
COLLAR 92152 92152-1176 1
CLAMP,CLIP 92171 92171-1095 1
CLAMP,HARNESS&CABLE 92171A 92171-1503 1
SCREW,5X20 92172 92172-0078 1
WASHER,4.5X11.5X0.8 92200 92200-1361 2
SCREW-PAN-WS-CROS,5X12 223 223C0512 1
NUT-HEX,6MM,BLACK 312 312C0600 1
WASHER-PLAIN,6MM 411 411E0600 1
WASHER-SPRING 461 461L0600 1
