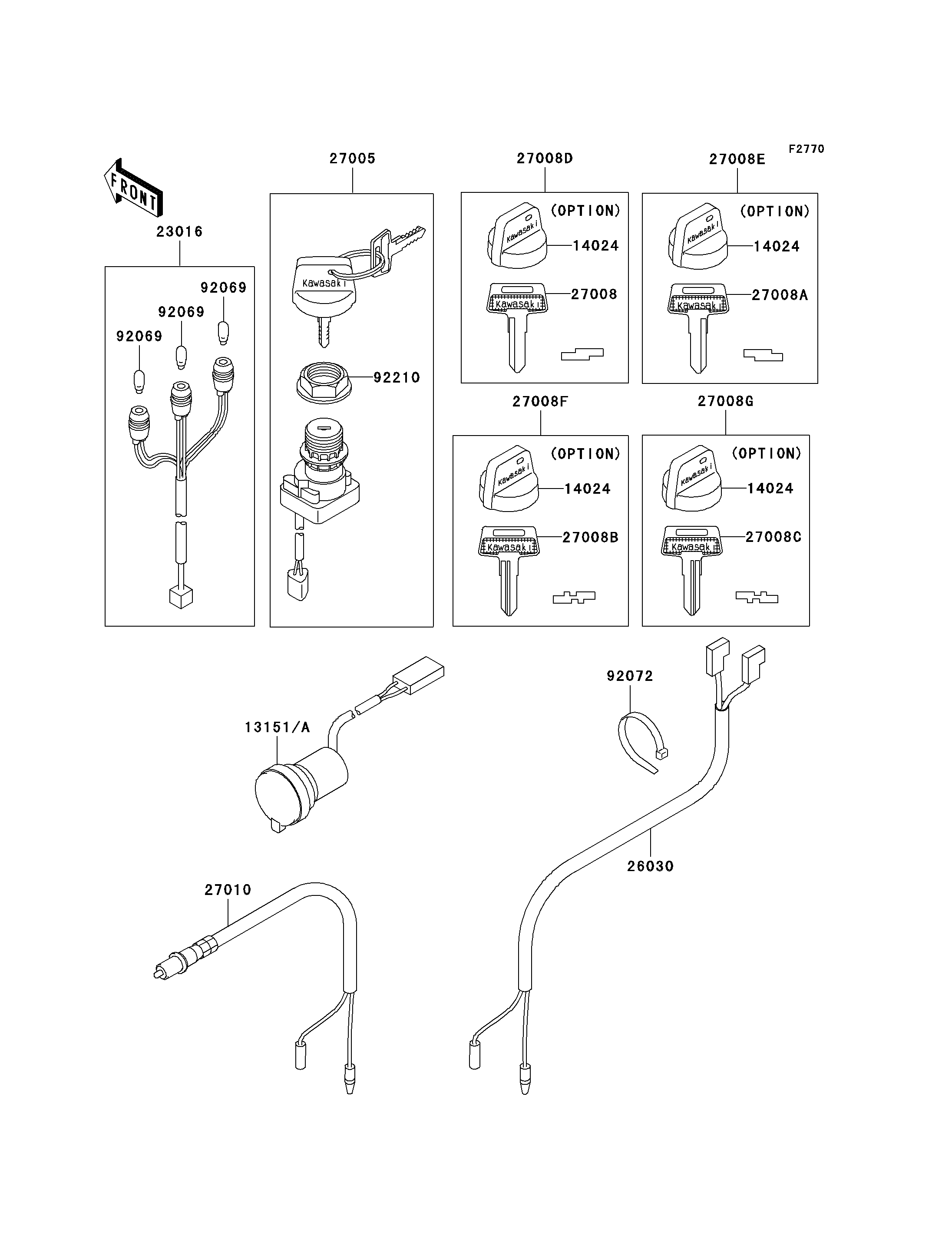

2003 Prairie 360 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
13151A
14024
14024
14024
14024
23016
26030
27005
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
27010
92069
92069
92069
92072
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP,D.C.TERMINAL 13151A 13151-7501 1
COVER,KEY 14024 14024-1551 4 (OPTION)
LAMP-ASSY 23016 23016-1151 1
HARNESS 26030 26030-1058 1
SWITCH-ASSY-IGNITION 27005 27005-1229 1
KEY-LOCK,BLANK 27008 27008-1041 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1042 1 (OPTION)
KEY-LOCK,BLANK 27008B 27008-1043 1 (OPTION)
KEY-LOCK,BLANK 27008C 27008-1044 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008D 27008-1132 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008E 27008-1133 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008F 27008-1134 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008G 27008-1135 1 (OPTION)
SWITCH,BRAKE 27010 27010-1294 1
BULB,12V 3W,T7 92069 92069-1020 3
BAND,L=149 92072 92072-031 1
NUT,IGNITION SWITCH 92210 92210-1109 1
