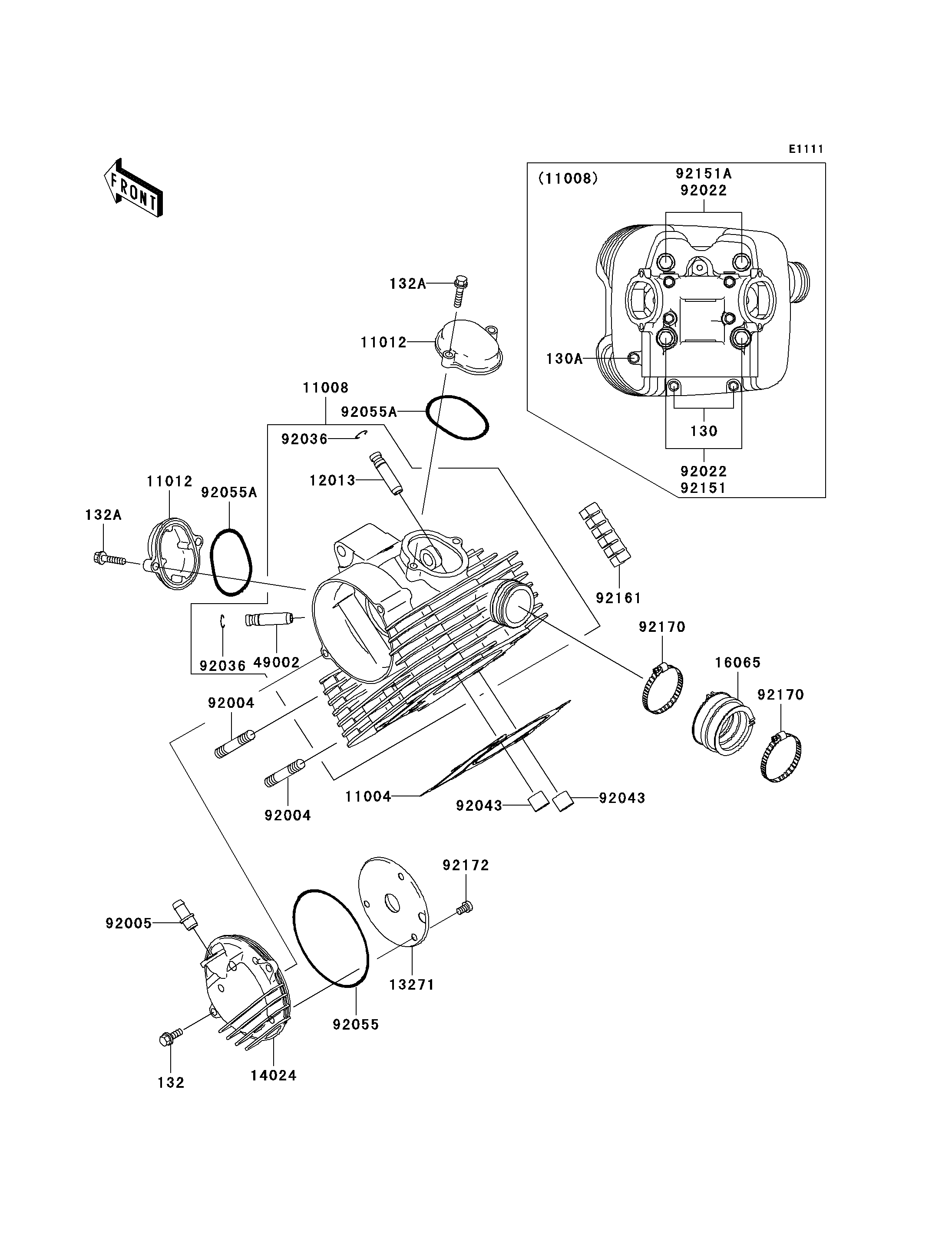

2006 Prairie 360 4X4 Hardwoods Green HD - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
132A
132A
11004
11008
11012
11012
12013
13271
14024
16065
49002
92004
92004
92005
92022
92022
92036
92036
92043
92043
92055
92055A
92055A
92151
92151A
92161
92170
92170
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X130 130 130CD06130 2
BOLT-FLANGED,6X90 130A 130CD0690 1
BOLT-FLANGED-SMALL,6X16 132 132BD0616 2
BOLT-FLANGED-SMALL,6X25 132A 132BD0625 4
GASKET-HEAD 11004 11004-1379 1
HEAD-COMP-CYLINDER 11008 11008-1415 1
CAP,ROCKER ARM 11012 11012-1486 2
GUIDE-VALVE,INTAKE 12013 12013-009 1
PLATE,SPROCKET 13271 13271-1863 1
COVER,CAMSHAFT 14024 14024-1060 1
HOLDER-CARBURETOR 16065 16065-1379 1
GUIDE-VALVE,EXHAUST 49002 49002-1002 1
STUD,8X22 92004 92004-1217 2
FITTING,BREATHER PIPE 92005 92005-1124 1
WASHER,11.5X20.5X1.6 92022 92022-1720 4
RING-SNAP,VALVE GUIDE 92036 92036-023 2
PIN,13X16X14 92043 92043-1608 2
RING-O,99X3.1 92055 92055-107 1
RING-O,53.5X2.6 92055A 92055-112 2
BOLT,11X245 92151 92151-1961 2
BOLT,11X220 92151A 92151-1962 2
DAMPER,CYLINDER 92161 92161-1312 4
CLAMP 92170 92170-1674 2
SCREW,6X10 92172 92172-1076 3
