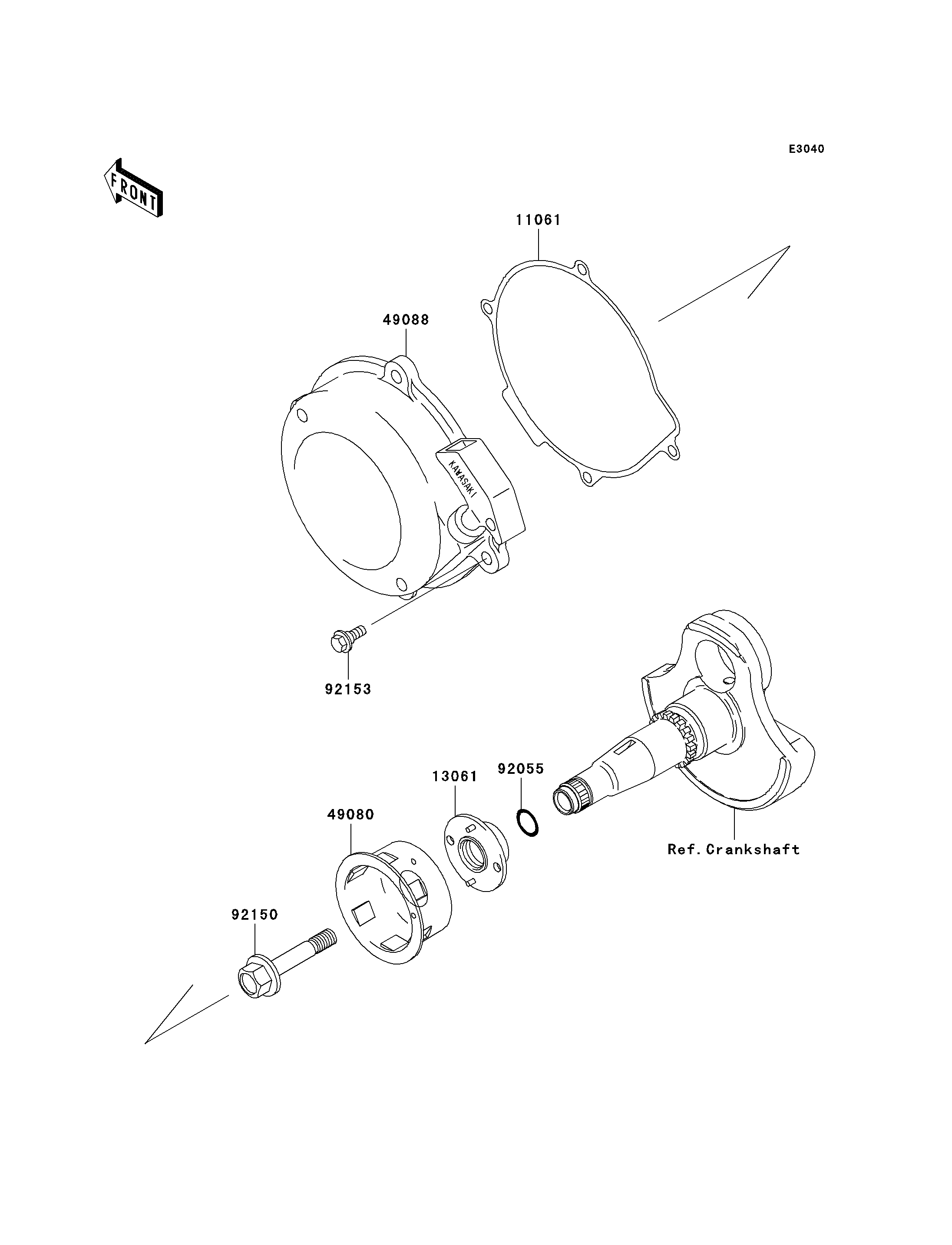

2006 Prairie 360 4X4 Hardwoods Green HD - Recoil Starter(-VF360AE607660)

11061
13061
49080
49088
92055
92150
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-1153 1
BOSS,STARTING PULLEY 13061 13061-1867 1
PULLEY-STARTING 49080 49080-1060 1
STARTER-RECOIL 49088 49088-1058 1
RING-O,16.8X2.4 92055 92055-1258 1
BOLT,12X65 92150 92150-1987 1
BOLT,FLANGED,6X16 92153 92153-7007 4
