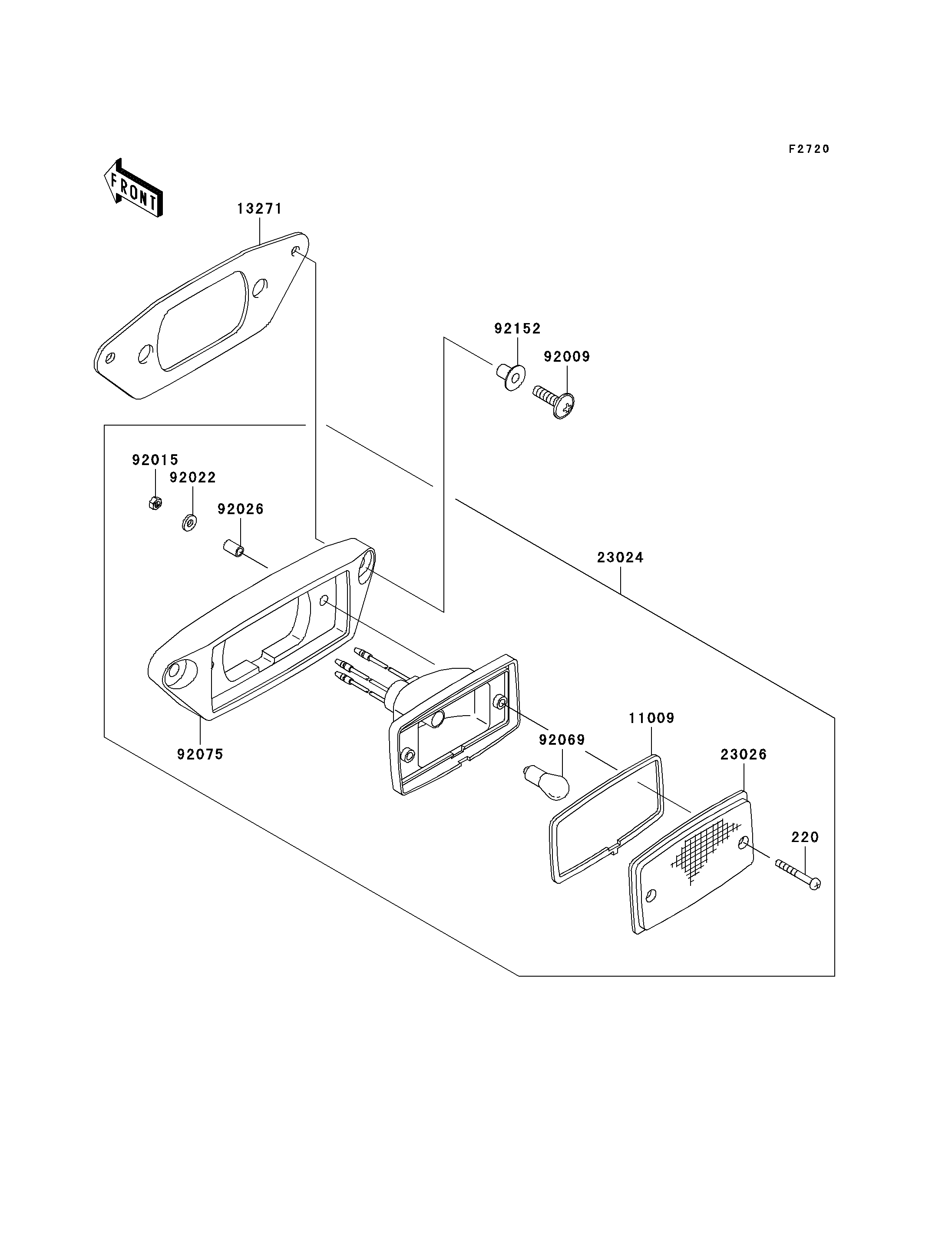

2006 Prairie 360 4X4 Hardwoods Green HD - Taillight(s)

220
11009
13271
23024
23026
92009
92015
92022
92026
92069
92075
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,4X30 220 220AB0430 2
GASKET,TAIL LAMP 11009 11009-4004 1
PLATE,TAIL LAMP 13271 13271-0033 1
LAMP-ASSY-TAIL 23024 23024-0001 1
LENS,TAIL LAMP 23026 23026-1239 1
SCREW,6X22,BLACK 92009 92009-1256 2
NUT,4MM 92015 92015-1550 2
WASHER,PLAIN,4MM 92022 92022-1762 2
SPACER,4.5X6.5X10 92026 92026-1261 2
BULB,12V 18/5W 92069 92069-1089 1
DAMPER,TAIL LAMP 92075 92075-1782 1
COLLAR 92152 92152-0015 2
