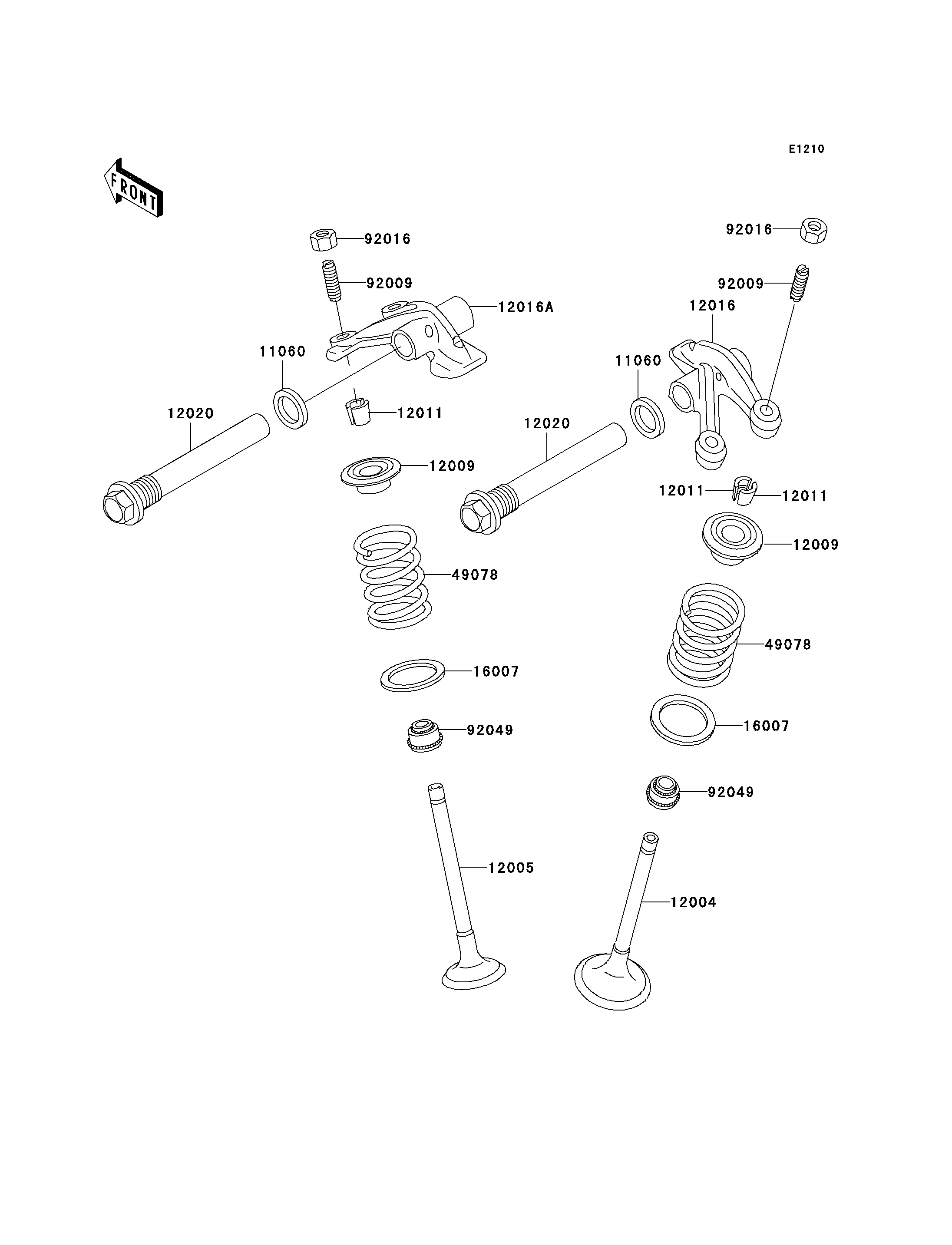

Parts Diagrams |
11060
11060
12004
12005
12009
12009
12011
12011
12011
12016
12016A
12020
12020
16007
16007
49078
49078
92009
92009
92016
92016
92049
92049
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,ROCKER SHAFT | 11060 | 11060-1287 | 2 | ||
| VALVE-INTAKE | 12004 | 12004-1106 | 2 | ||
| VALVE-EXHAUST | 12005 | 12005-1189 | 2 | ||
| RETAINER-VALVE SPRING | 12009 | 12009-1054 | 4 | ||
| COLLET | 12011 | 12011-1003 | 8 | ||
| ARM-ROCKER,INTAKE | 12016 | 12016-1089 | 1 | ||
| ARM-ROCKER,EXHAUST | 12016A | 12016-1090 | 1 | ||
| SHAFT-ROCKER | 12020 | 12020-1067 | 2 | ||
| SEAT-SPRING,17.5X23.8X0.5 | 16007 | 16007-1178 | 4 | ||
| SPRING-ENGINE VALVE | 49078 | 49078-1073 | 4 | ||
| SCREW,6MM | 92009 | 92009-1032 | 4 | ||
| NUT,6MM | 92016 | 92016-061 | 4 | ||
| SEAL-OIL,RVC2-5.5X8.5X8.3 | 92049 | 92049-1062 | 4 |
| GASKET,ROCKER SHAFT | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE-INTAKE | |
| REF # | 12004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RETAINER-VALVE SPRING | |
| REF # | 12009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLET | |
| REF # | 12011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| ARM-ROCKER,INTAKE | |
| REF # | 12016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-ROCKER,EXHAUST | |
| REF # | 12016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-ROCKER | |
| REF # | 12020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAT-SPRING,17.5X23.8X0.5 | |
| REF # | 16007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING-ENGINE VALVE | |
| REF # | 49078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6MM | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,RVC2-5.5X8.5X8.3 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
