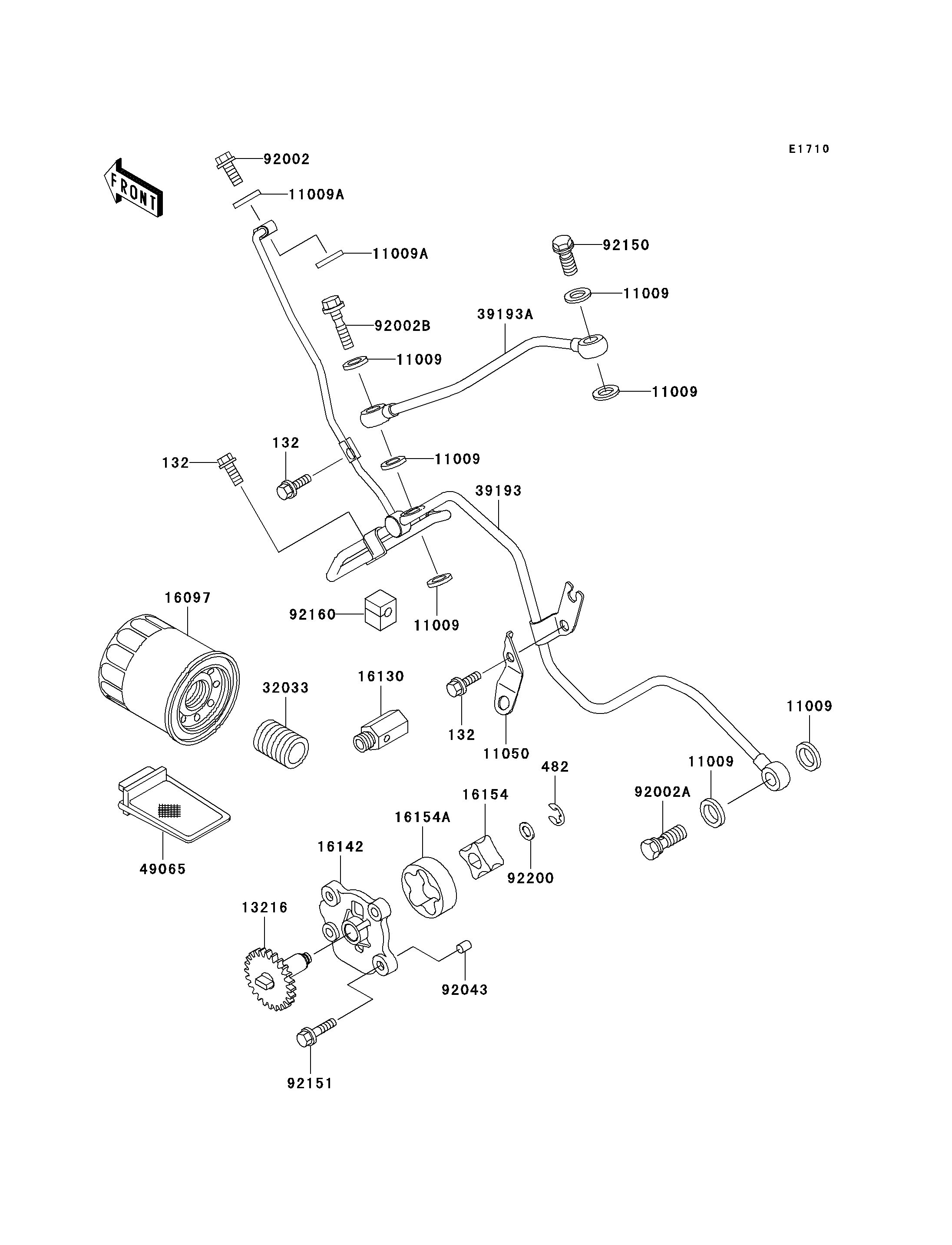

1997 Prairie 400 4X4 - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
482
11009
11009
11009
11009
11009
11009
11009
11009A
11009A
11050
13216
16097
16130
16142
16154
16154A
32033
39193
39193A
49065
92002
92002A
92002B
92043
92150
92151
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 3
CIRCLIP-TYPE-E,6MM 482 482J6000 1
GASKET,10X14.5X1.5 11009 11009-1105 7
GASKET,OIL PIPE,8.2X14X1.0 11009A 11009-1344 2
BRACKET 11050 11050-1304 1
GEAR-COMP,OIL PUMP 13216 13216-1165 1
FILTER-ASSY-OIL 16097 16097-1063 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
COVER-PUMP 16142 16142-1136 1
ROTOR-PUMP,INNER 16154 16154-2059 1
ROTOR-PUMP,OUTER 16154A 16154-2060 1
PIPE,OIL FILTER 32033 32033-1535 1
PIPE-OIL,HEAD-TRANSMISSIN 39193 39193-1027 1
PIPE-OIL,CRANKSHAFT 39193A 39193-1028 1
FILTER-OIL 49065 49065-1070 1
BOLT,BANJO,8X20 92002 92002-1429 1
BOLT,OIL,L=23 92002A 92002-1888 1
BOLT,OIL,L=37 92002B 92002-1909 1
PIN,DOWEL,8X10 92043 92043-1302 2
BOLT,BANJO,10X23 92150 92150-1123 1
BOLT,6X22 92151 92151-1197 4
DAMPER 92160 92160-1522 1
WASHER,7.7X13X1.0 92200 92200-1107 1
