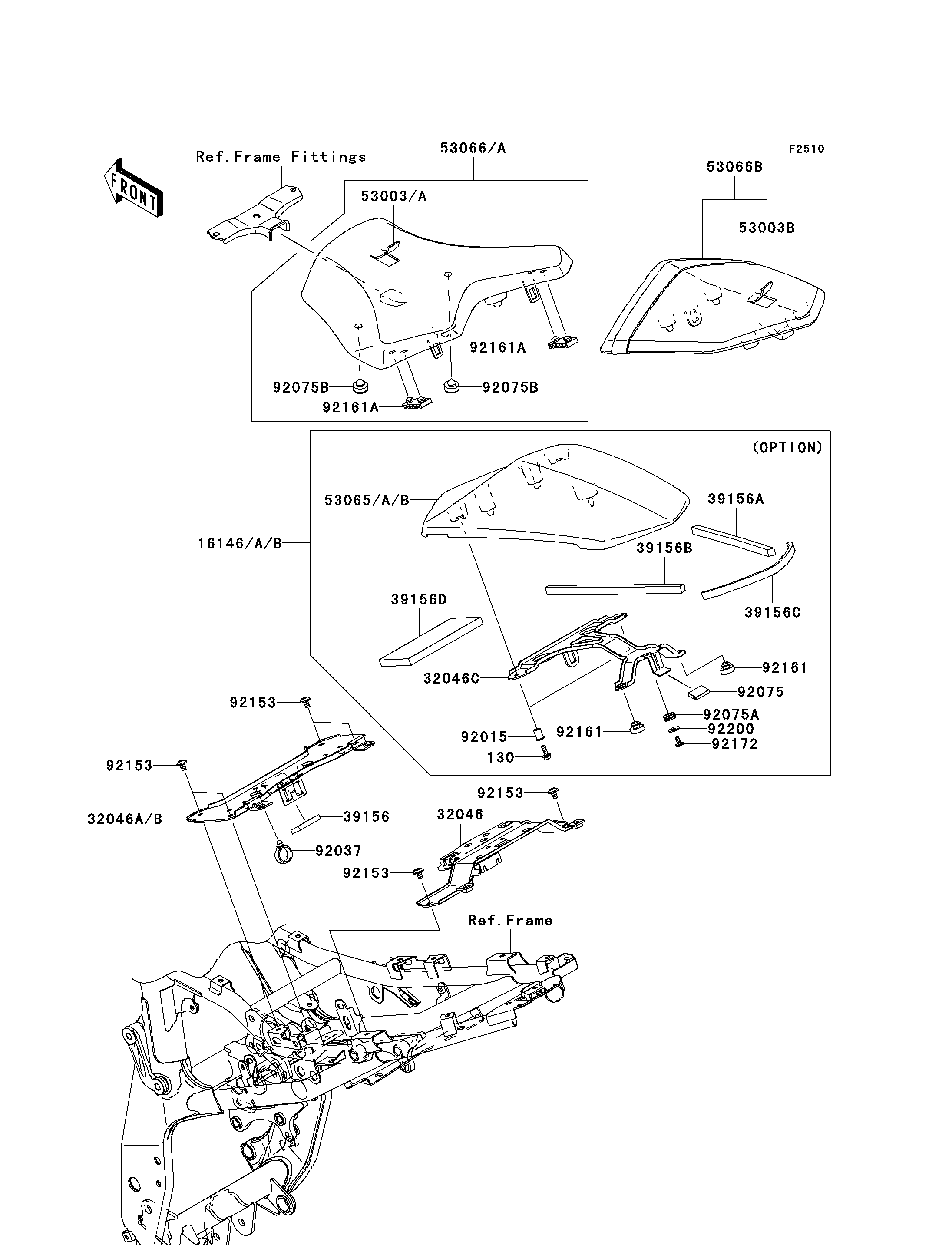

2007 Z1000 - Seat

DOWNLOAD PDF
SELECT A NEW PART
16146
16146
32046
32046
32046A
32046A
32046C
32046C
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
53003A
53003A
53003B
53003B
53065
53065
53066A
53066A
53066B
53066B
130
130
92015
92015
92037
92037
92075
92075
92075A
92075A
92075B
92075B
92075B
92075B
92153
92153
92153
92153
92153
92153
92153
92153
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-ASSY,SINGLE SEAT,BLACK 16146 16146-0075-17K 1 (OPTION)
BRACKET-SEAT,RR 32046 32046-0114 1
BRACKET-SEAT,FR 32046A 32046-0117 1
BRACKET-SEAT 32046C 32046-0120 1 (OPTION)
PAD 39156 39156-0320 1
PAD,SEAT COVER,RH 39156A 39156-0415 1 (OPTION)
PAD,SEAT COVER,LH 39156B 39156-0416 1 (OPTION)
PAD,SEAT COVER,RR 39156C 39156-0417 1 (OPTION)
PAD,SEAT COVER,FR 39156D 39156-0419 1 (OPTION)
LEATHER,FRONT SEAT,M.C.ORANGE 53003A 53003-0095-12Q 1
LEATHER,REAR SEAT,BLACK 53003B 53003-0096-MA 1
COVER SEAT,M.D.BLACK 53065 53065-0015-17K 1 (OPTION)
SEAT-ASSY,FR,M.C.ORANGE 53066A 53066-0138-12Q 1
SEAT,RR,LEATHER BLK+BAND BLK 53066B 53066-0139-12Y 1
BOLT-FLANGED,5X14 130 130BA0514 2 (OPTION)
NUT,WELL,5MM 92015 92015-1757 2 (OPTION)
CLAMP,HOSE 92037 92037-1827 1
DAMPER 92075 92075-1446 1 (OPTION)
DAMPER 92075A 92075-161 1 (OPTION)
DAMPER 92075B 92075-1927 2
BOLT,SOCKET,6X14 92153 92153-1612 6
DAMPER 92161 92161-0046 2 (OPTION)
DAMPER,SEAT 92161A 92161-0149 2
SCREW,TAPPING,5X10 92172 92172-1061 1 (OPTION)
WASHER 92200 92200-0288 1 (OPTION)
