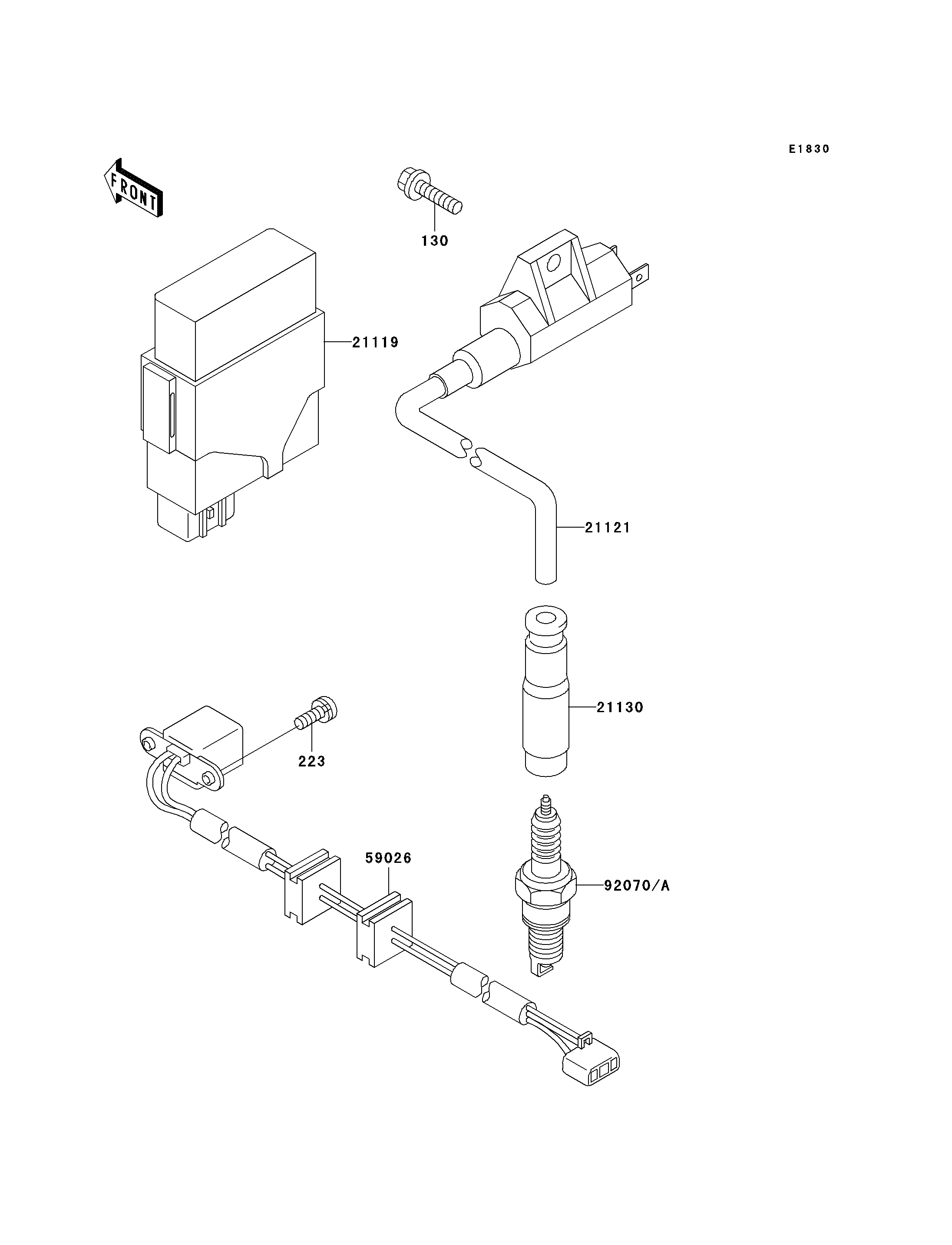

130
223
21119
21121
21130
59026
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0616 1
SCREW-PAN-WS-CROS 223 223B0514 2
IGNITER 21119 21119-1467 1
COIL-IGNITION 21121 21121-1160 1
CAP-SPARK PLUG 21130 21130-1071 1
COIL-PULSING 59026 59026-1110 1
PLUG-SPARK,DPR8EA-9(NGK) 92070 92070-1065 1 CN
PLUG-SPARK,DP8EA-9(NGK) 92070A 92070-1066 1 US
