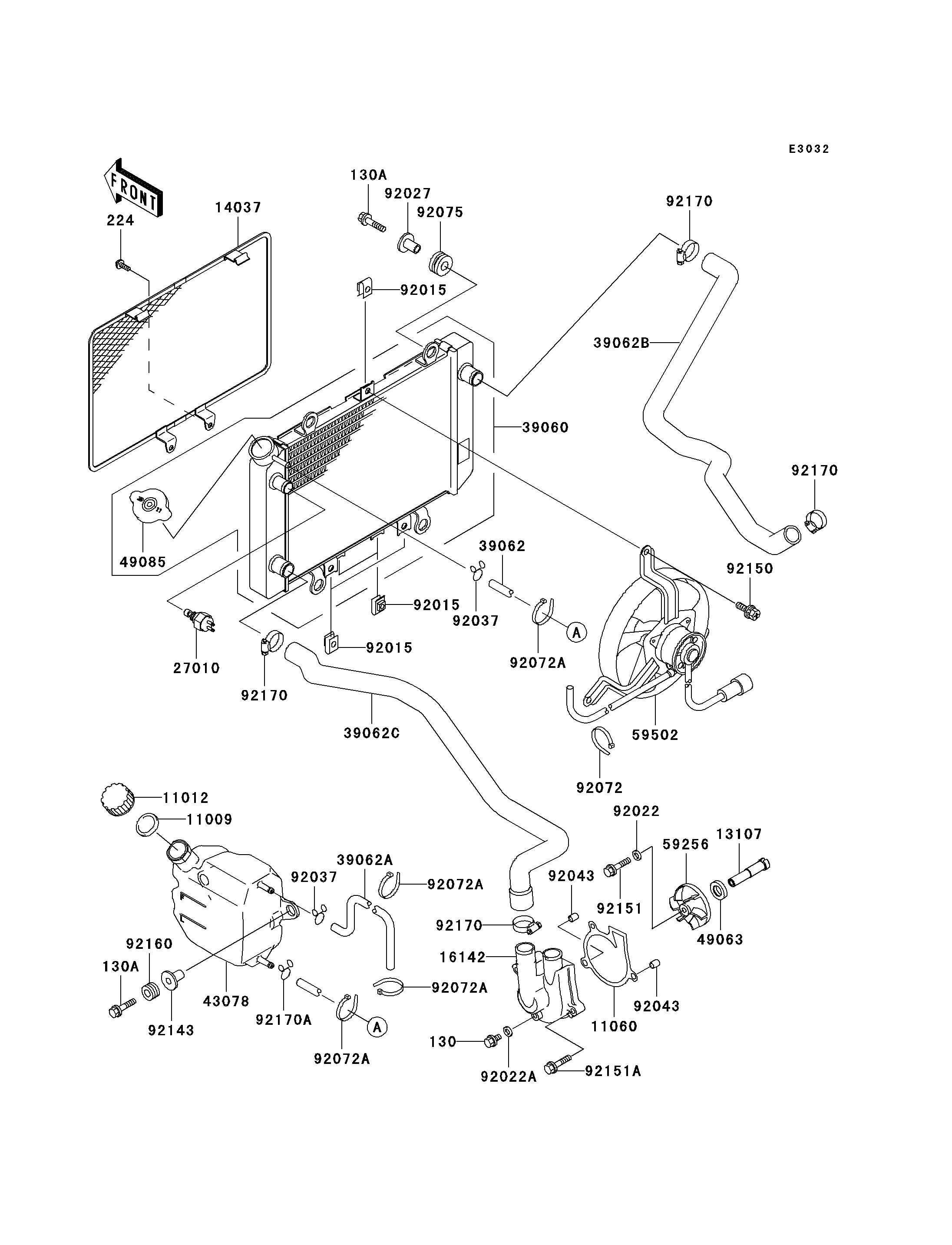

1997 Prairie 400 4X4 - Radiator(-VF400AE515522)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
224
11009
11012
11060
13107
14037
16142
27010
39060
39062
39062A
39062B
39062C
43078
49063
49085
59256
59502
92015
92015
92015
92022
92022A
92027
92037
92037
92043
92043
92072
92072A
92072A
92072A
92072A
92075
92143
92150
92151
92151A
92160
92170
92170
92170
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED,6X25 130A 130J0625 6
SCREW-PAN-WP-CROS 224 224C0612 2
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
GASKET,WATER PUMP COVER 11060 11060-1730 1
SHAFT 13107 13107-1349 1
SCREEN 14037 14037-1221 1
COVER-PUMP 16142 16142-1137 1
SWITCH,FAN 27010 27010-1202 1
RADIATOR 39060 39060-1150 1
HOSE-COOLING,5.5X10.5X1500 39062 39062-1675 1
HOSE-COOLING,5.5X10.5X700 39062A 39062-1676 1
HOSE-COOLING,HEAD- RADIATOR 39062B 39062-1701 1
HOSE-COOLING,RADIATOR-PUMP 39062C 39062-1702 1
RESERVOIR 43078 43078-1154 1
SEAL-MECHANICAL,WATER PUMP 49063 49063-1002 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
IMPELLER 59256 59256-1073 1
FAN-ASSY 59502 59502-1123 1
NUT 92015 92015-1487 5
WASHER,6.1X12X1 92022 92022-077 1
WASHER,6.2X11X1 92022A 92022-304 1
COLLAR,L=13.1 92027 92027-251 4
CLAMP,TUBE 92037 92037-147 2
PIN,DOWEL,8X10 92043 92043-1302 2
BAND,L=123 92072 92072-030 1
BAND,L=186 92072A 92072-056 4
DAMPER 92075 92075-209 4
COLLAR 92143 92143-1353 2
BOLT,6X12 92150 92150-1186 3
BOLT,6X22 92151 92151-1074 1
BOLT,6X30 92151A 92151-1139 1
DAMPER 92160 92160-1167 2
CLAMP 92170 92170-1497 4
CLAMP 92170A 92170-2042 1
