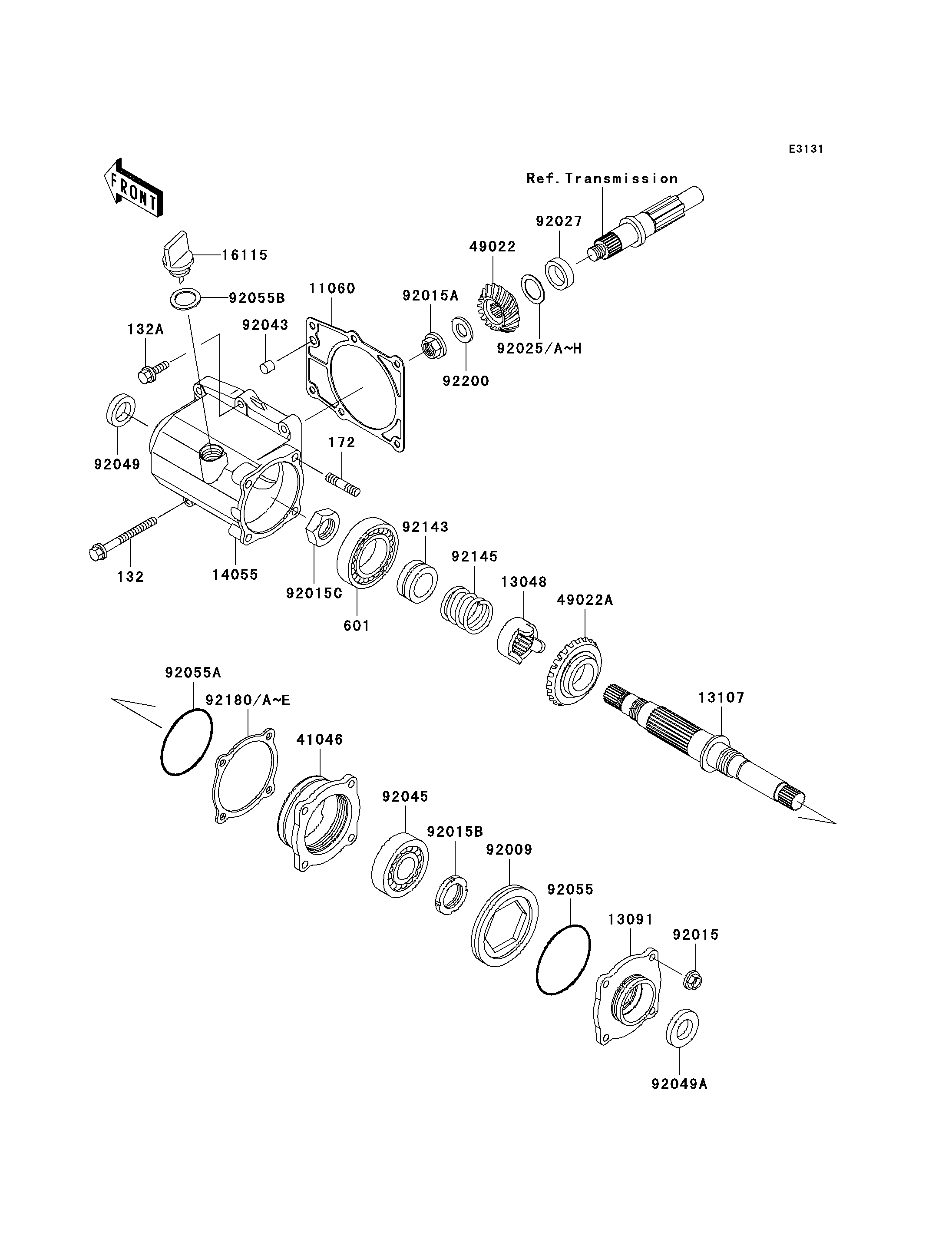

1997 Prairie 400 4X4 - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
13048
13048
13091
13091
13107
13107
14055
14055
16115
16115
41046
41046
49022
49022
49022A
49022A
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92027
92027
92043
92043
92045
92045
92049
92049
92049A
92049A
92055
92055
92055A
92055A
92055B
92055B
92143
92143
92145
92145
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92200
92200
132
132
132A
132A
172
172
601
601
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GEAR CASE 11060 11060-1728 1
CAM-DAMPER 13048 13048-1080 1
HOLDER 13091 13091-1950 1
SHAFT 13107 13107-1364 1
CASE-GEAR 14055 14055-1127 1
CAP-OIL FILLER 16115 16115-1065 1
HOUSING-BEARING 41046 41046-1094 1
GEAR-BEVEL,14T 49022 49022-1151 1
GEAR-BEVEL,20T 49022A 49022-1155 1
SCREW 92009 92009-1667 1
NUT,8MM 92015 92015-1402 4
NUT 92015A 92015-1581 1
NUT,30MM 92015B 92015-1858 1
NUT,26MM 92015C 92015-1990 1
SHIM,25.3X36X0.15 92025 92025-1688 AR
SHIM,25.3X36X0.50 92025A 92025-1689 AR
SHIM,25.3X36X0.60 92025B 92025-1690 AR
SHIM,25.3X36X0.70 92025C 92025-1691 AR
SHIM,25.3X36X0.80 92025D 92025-1692 AR
SHIM,25.3X36X0.90 92025E 92025-1693 AR
SHIM,25.3X36X1.00 92025F 92025-1694 AR
SHIM,25.3X36X1.10 92025G 92025-1695 AR
SHIM,25.3X36X1.20 92025H 92025-1696 AR
COLLAR,25.3X36X10 92027 92027-1968 1
PIN,DOWEL,10X14 92043 92043-1037 1
BEARING-BALL,6306SH2 92045 92045-1190 1
SEAL-OIL,AE1252E0 92049 92049-1395 1
SEAL-OIL,AE1265E0 92049A 92049-1400 1
RING-O 92055 92055-081 1
RING-O,79.5MM 92055A 92055-1230 1
RING-O,20MM 92055B 92055-2185 1
COLLAR 92143 92143-1900 1
SPRING,BEVEL 92145 92145-1099 1
SHIM,T=1.00 92180 92180-1126 AR
SHIM,T=0.10 92180A 92180-1127 AR
SHIM,T=0.15 92180B 92180-1128 AR
SHIM,T=0.50 92180C 92180-1129 AR
SHIM,T=0.80 92180D 92180-1130 AR
SHIM,T=1.20 92180E 92180-1131 AR
WASHER,16.3X31X3.2 92200 92200-1104 1
BOLT-FLANGED-SMALL 132 132Y08100 2
BOLT-FLANGED-SMALL 132A 132Y0835 4
BOLT-STUD,8X30 172 172G0830 4
BEARING-BALL 601 601A6209 1
