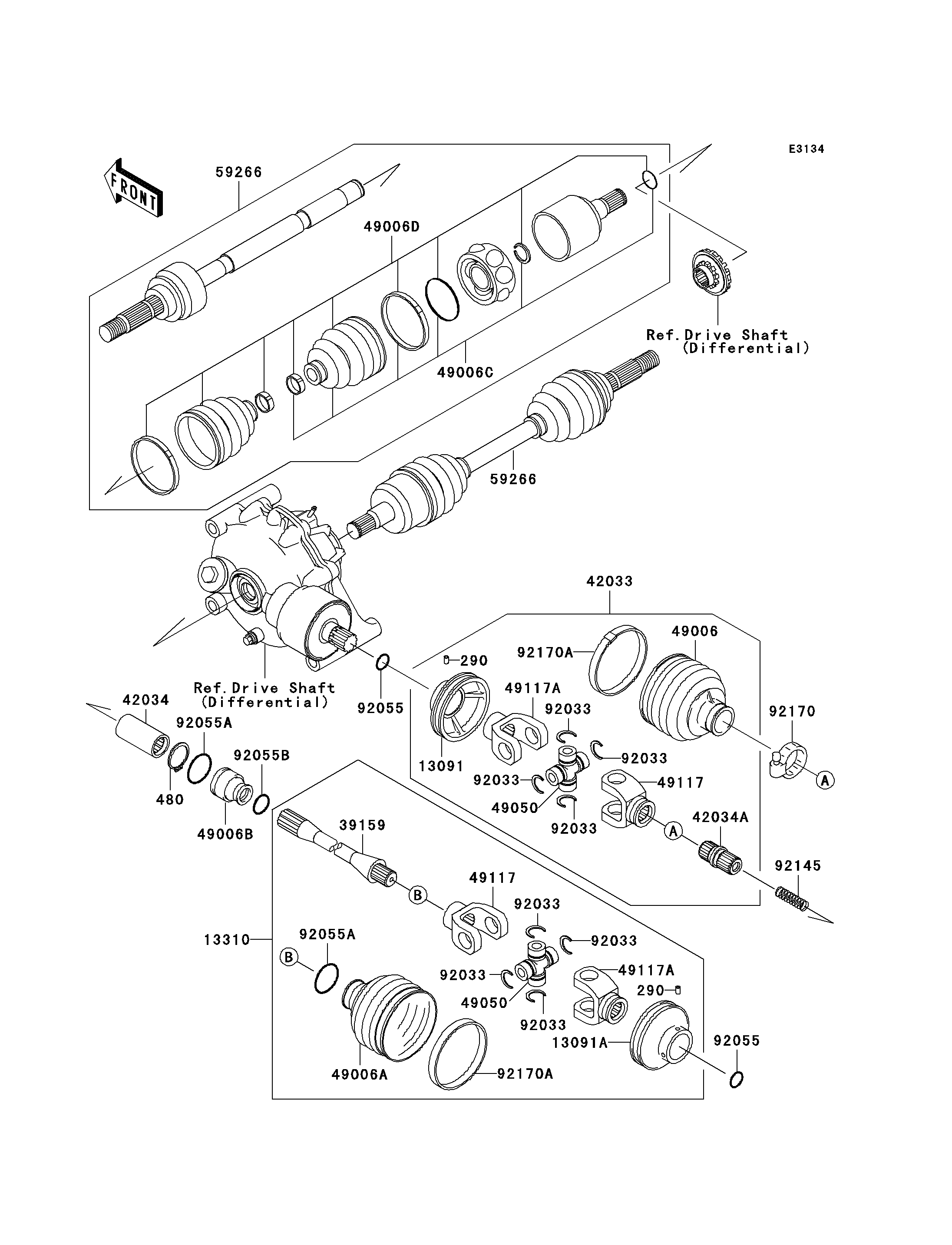

1997 Prairie 400 4X4 - Drive Shaft(Front)

DOWNLOAD PDF
SELECT A NEW PART
290
290
480
13091
13091A
13310
39159
42033
42034
42034A
49006
49006A
49006B
49006C
49006D
49050
49050
49117
49117
49117A
49117A
59266
59266
92033
92033
92033
92033
92033
92033
92033
92033
92055
92055
92055A
92055A
92055B
92145
92170
92170A
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-SET-SOCKET 290 290Q0508 4
CIRCLIP-TYPE-C,22MM 480 480J2200 1
HOLDER 13091 13091-1863 1
HOLDER 13091A 13091-1892 1
SHAFT-ASSY 13310 13310-1019 1
SHAFT-DRIVE 39159 39159-1105 1
COUPLING-ASSY 42033 42033-1188 1
COUPLING 42034 42034-1103 1
COUPLING 42034A 42034-1127 1
BOOT,COUPLING 49006 49006-1293 1
BOOT,DRIVE SHAFT 49006A 49006-1294 1
BOOT,DRIVE SHAFT 49006B 49006-1295 1
BOOT,JOINT BALL,INSIDE 49006C 49006-1322 2
BOOT,JOINT BALL,OUTSIDE 49006D 49006-1324 2
SPIDER 49050 49050-1057 2
YOKE,DRIVE 49117 49117-1083 2
YOKE,DRIVE 49117A 49117-1084 2
JOINT-BALL 59266 59266-1101 2
RING-SNAP 92033 92033-1283 8
RING-O,19.5X1.5 92055 92055-055 2
RING-O,19.5X3.0 92055A 92055-1451 2
RING-O,15X3.0 92055B 92055-1531 1
SPRING 92145 92145-1055 1
CLAMP 92170 92170-1678 1
CLAMP 92170A 92170-1727 2
