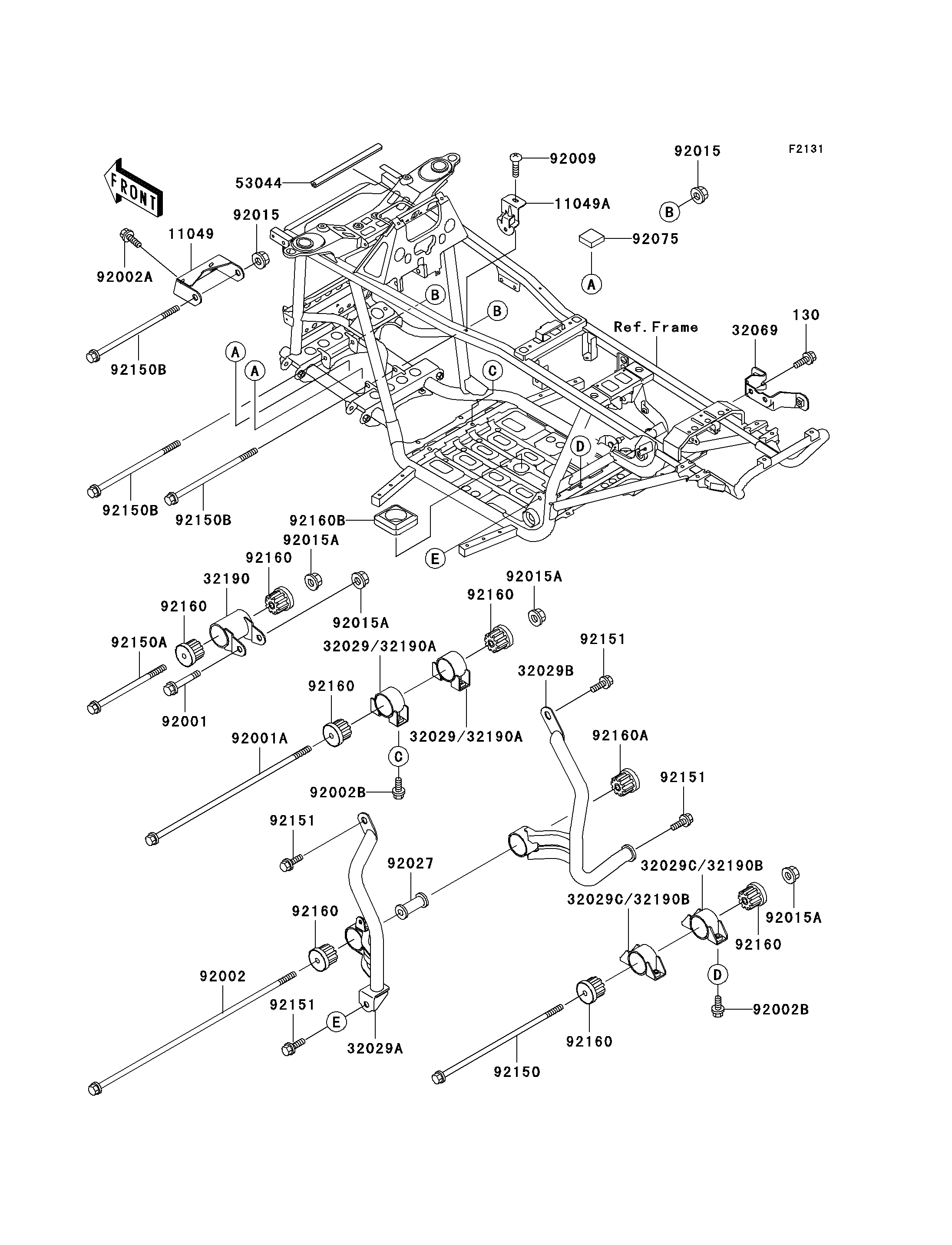

Parts Diagrams |
130
11049
11049A
32029
32029
32029A
32029B
32029C
32029C
32069
32190
53044
92001
92001A
92002
92002A
92002B
92002B
92009
92015
92015
92015A
92015A
92015A
92015A
92027
92075
92150
92150A
92150B
92150B
92150B
92151
92151
92151
92151
92160
92160
92160
92160
92160
92160
92160
92160A
92160B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X14 | 130 | 130J0814 | 2 | ||
BRACKET,DIFF MOUNT | 11049 | 11049-1524 | 1 | ||
BRACKET | 11049A | 11049-1738 | 1 | ||
BRACKET-ENGINE,FR,LWR | 32029 | 32029-1969 | 2 | ||
BRACKET-ENGINE,RR,UPP,LH | 32029A | 32029-1970 | 1 | ||
BRACKET-ENGINE,RR,UPP,RH | 32029B | 32029-1971 | 1 | ||
BRACKET-ENGINE,RR,LWR | 32029C | 32029-1973 | 2 | ||
BRACKET-MUFFLER | 32069 | 32069-1485 | 1 | ||
BRACKET-ENGINE,HEAD | 32190 | 32190-1078 | 1 | ||
TRIM,L=160 | 53044 | 53044-1306 | 1 | ||
BOLT,FLANGED,10X70 | 92001 | 92001-1600 | 1 | ||
BOLT,FLANGED,10X225,BLACK | 92001A | 92001-1622 | 1 | ||
BOLT,FLANGED,10X230 | 92002 | 92002-1531 | 1 | ||
BOLT,8X14 | 92002A | 92002-1589 | 2 | ||
BOLT,FLANGED,8X16 | 92002B | 92002-1645 | 8 | ||
SCREW | 92009 | 92009-1166 | 1 | ||
NUT,FLANGED,10MM | 92015 | 92015-1335 | 3 | ||
NUT,FLANGED,10MM | 92015A | 92015-1727 | 4 | ||
COLLAR,L=54 | 92027 | 92027-275 | 1 | ||
DAMPER,FUEL TANK,RR | 92075 | 92075-1483 | 2 | ||
BOLT,FLANGED,10X173.5 | 92150 | 92150-1493 | 1 | ||
BOLT,FLANGED,10X100 | 92150A | 92150-1731 | 1 | ||
BOLT,FLANGED,10X120 | 92150B | 92150-1831 | 3 | ||
BOLT,FLANGED,10X16 | 92151 | 92151-1137 | 4 | ||
DAMPER,ENGINE MOUNT | 92160 | 92160-1692 | 7 | ||
DAMPER,ENGINE MOUNT | 92160A | 92160-1759 | 1 | ||
DAMPER | 92160B | 92160-1772 | 1 |
BOLT-FLANGED,8X14 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,DIFF MOUNT | |
REF # | 11049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,FR,LWR | |
REF # | 32029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,RR,UPP,LH | |
REF # | 32029A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,RR,UPP,RH | |
REF # | 32029B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,RR,LWR | |
REF # | 32029C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-MUFFLER | |
REF # | 32069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,HEAD | |
REF # | 32190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,L=160 | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X70 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X225,BLACK | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X230 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X14 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X16 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,L=54 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK,RR | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X173.5 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X100 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X120 | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X16 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER,ENGINE MOUNT | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
DAMPER,ENGINE MOUNT | |
REF # | 92160A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
