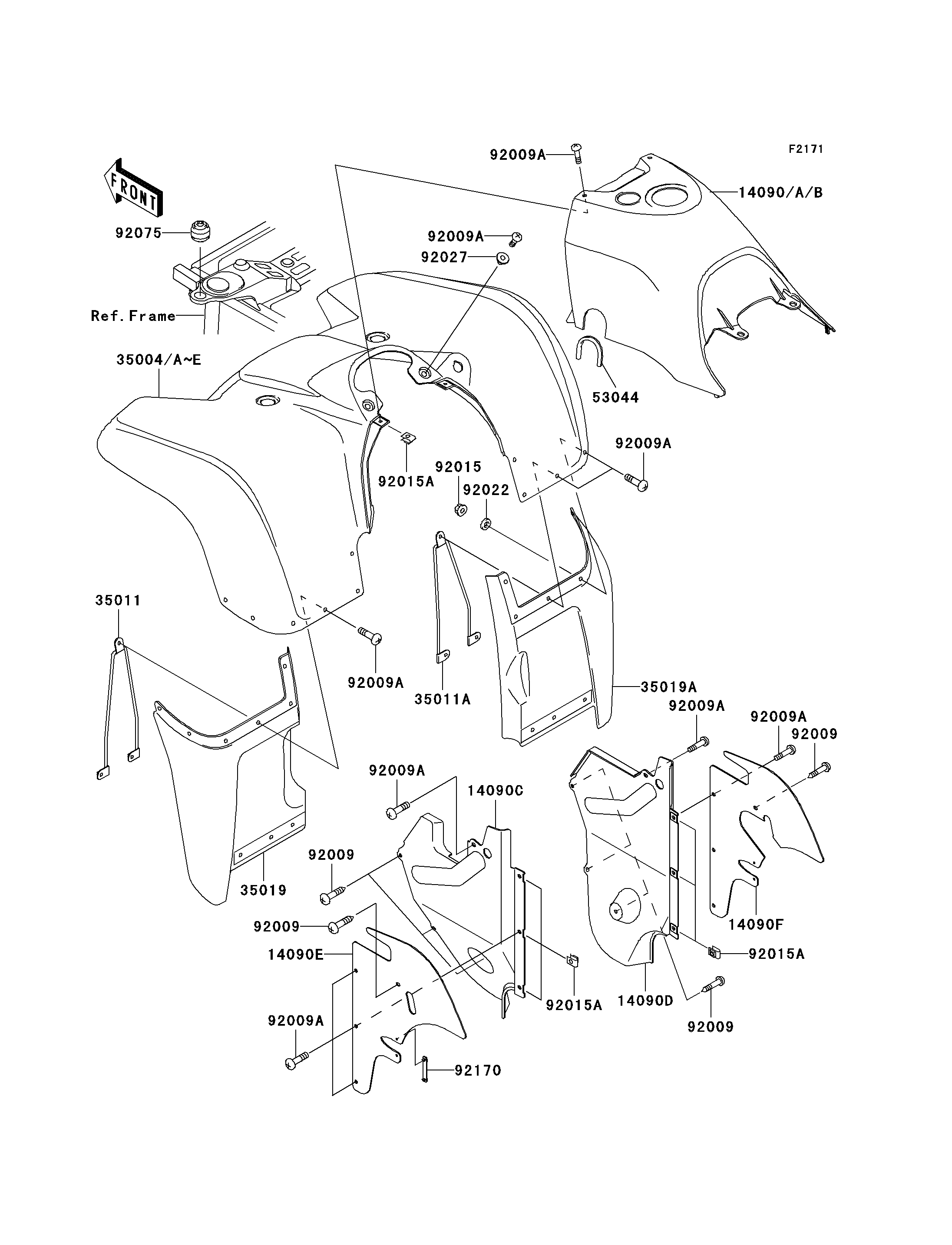

1997 Prairie 400 4X4 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
14090
14090B
14090C
14090D
14090E
14090F
35011
35011A
35019
35019A
53044
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015A
92015A
92015A
92022
92027
92075
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FUEL TANK,F.B.GREEN 14090 14090-1666-59 1
COVER,FUEL TANK,F.RED 14090B 14090-1666-6L 1
COVER,INNER FLAP,LH 14090C 14090-1669 1
COVER,INNER FLAP,RH 14090D 14090-1670 1
COVER,INNER FLAP 14090E 14090-1725 1
COVER,INNER FLAP 14090F 14090-1763 1
STAY,FRONT FLAP,LH 35011 35011-1761 1
STAY,FRONT FLAP,RH 35011A 35011-1784 1
FLAP,FR,LH,F.BLACK 35019 35019-1338-6Z 1
FLAP,FR,RH,F.BLACK 35019A 35019-1339-6Z 1
TRIM,L=150 53044 53044-1303 1
SCREW 92009 92009-1166 8
SCREW,6X16 92009A 92009-1621 24
NUT,LOCK,FLANGED,6MM 92015 92015-1675 10
NUT,CLAMP,6MM 92015A 92015-1678 8
WASHER,6.5X16X1.0 92022 92022-1093 10
COLLAR,L=4.7 92027 92027-1964 2
DAMPER 92075 92075-1744 2
CLAMP,HARNESS 92170 92170-1015 1
FENDER-FRONT,F.B.GREEN 35004 35004-1336-59 1 US
FENDER-FRONT,F.RED 35004B 35004-1336-6L 1 US
FENDER-FRONT,F.B.GREEN 35004C 35004-1344-59 1 CN
FENDER-FRONT,F.RED 35004E 35004-1344-6L 1 CN
