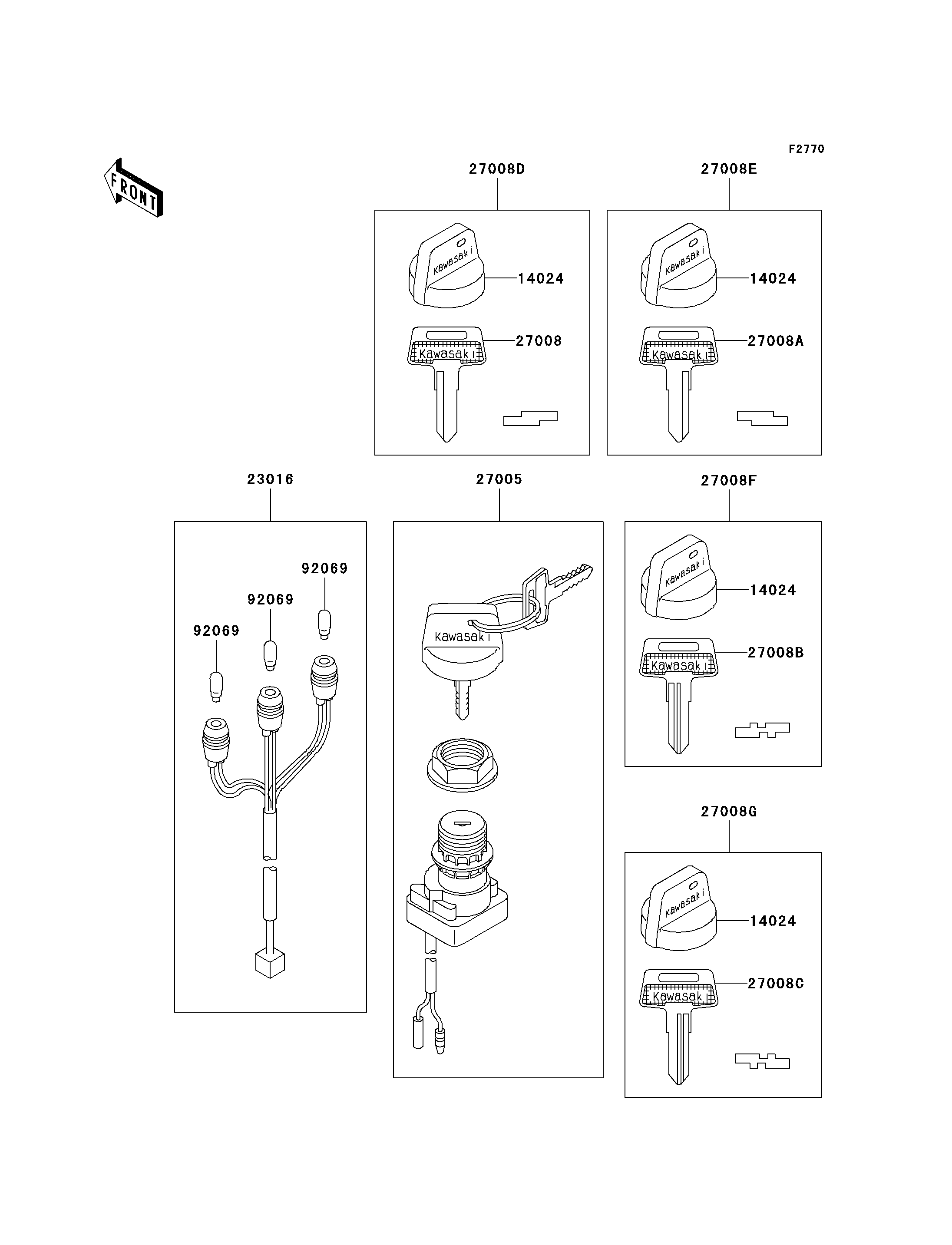

1997 Prairie 400 4X4 - Ignition Switch
14024
14024
14024
14024
23016
27005
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
92069
92069
92069
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,KEY | 14024 | 14024-1551 | 4 | (OPTION) | |
LAMP-ASSY | 23016 | 23016-1151 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-1201 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1041 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008A | 27008-1042 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008B | 27008-1043 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008C | 27008-1044 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008D | 27008-1132 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008E | 27008-1133 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008F | 27008-1134 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008G | 27008-1135 | 1 | (OPTION) | |
BULB,12V3W T-7 | 92069 | 92069-1020 | 3 |
