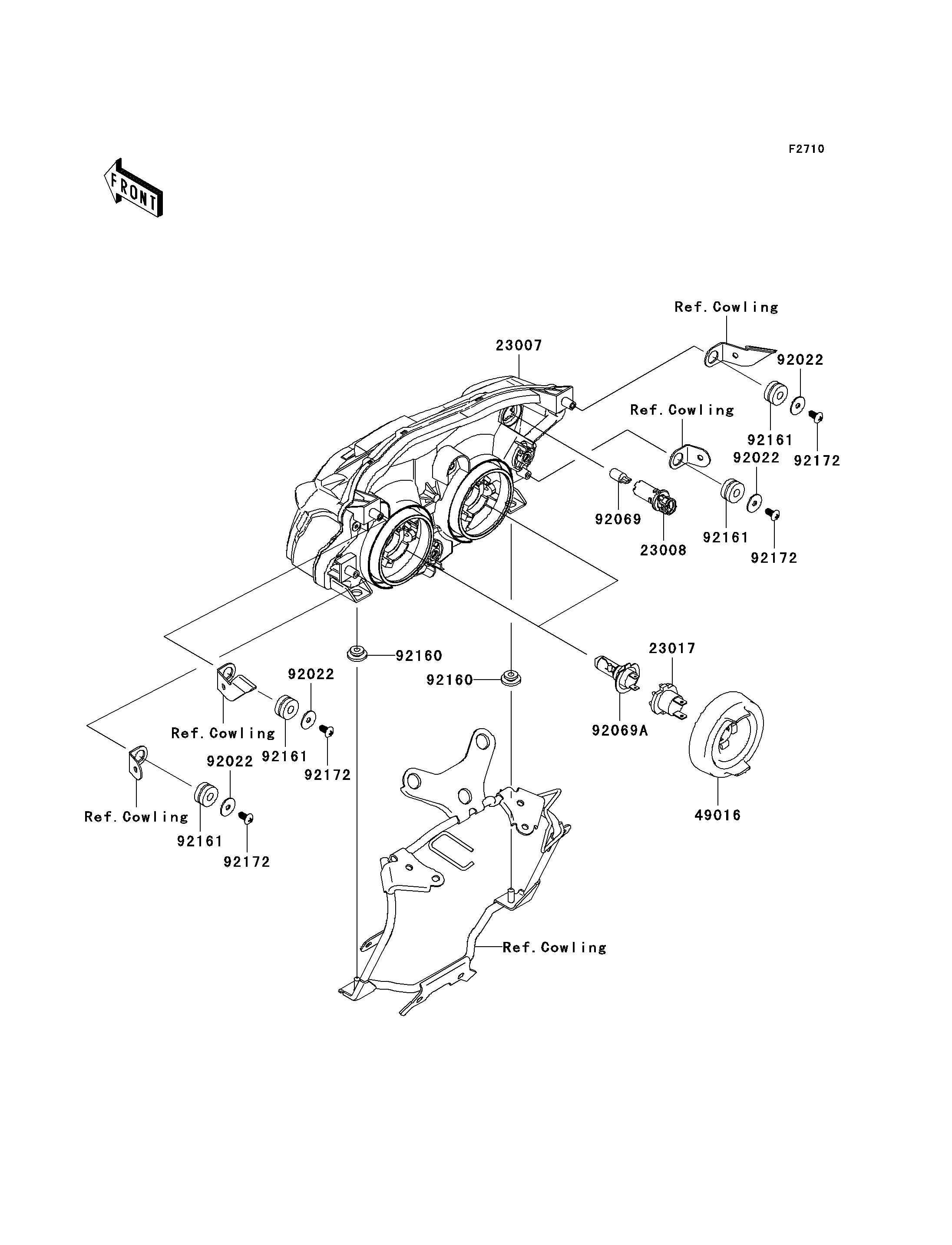

2007 Z1000 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
23007
23008
23017
49016
92022
92022
92022
92022
92069
92069A
92160
92160
92161
92161
92161
92161
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-COMP,HEAD LAMP 23007 23007-0079 1
SOCKET-ASSY,HEAD LAMP 23008 23008-0063 2
SOCKET,HEAD LAMP 23017 23017-0003 2
COVER-SEAL,HEAD LAMP 49016 49016-0038 2
WASHER,5.5X20X1.2 92022 92022-1405 4
BULB,12V 5W 92069 92069-1016 2
BULB,12V 55W,H7 92069A 92069-1126 2
DAMPER 92160 92160-1613 2
DAMPER 92161 92161-0054 4
SCREW,TAPPING,5X14 92172 92172-0006 4
