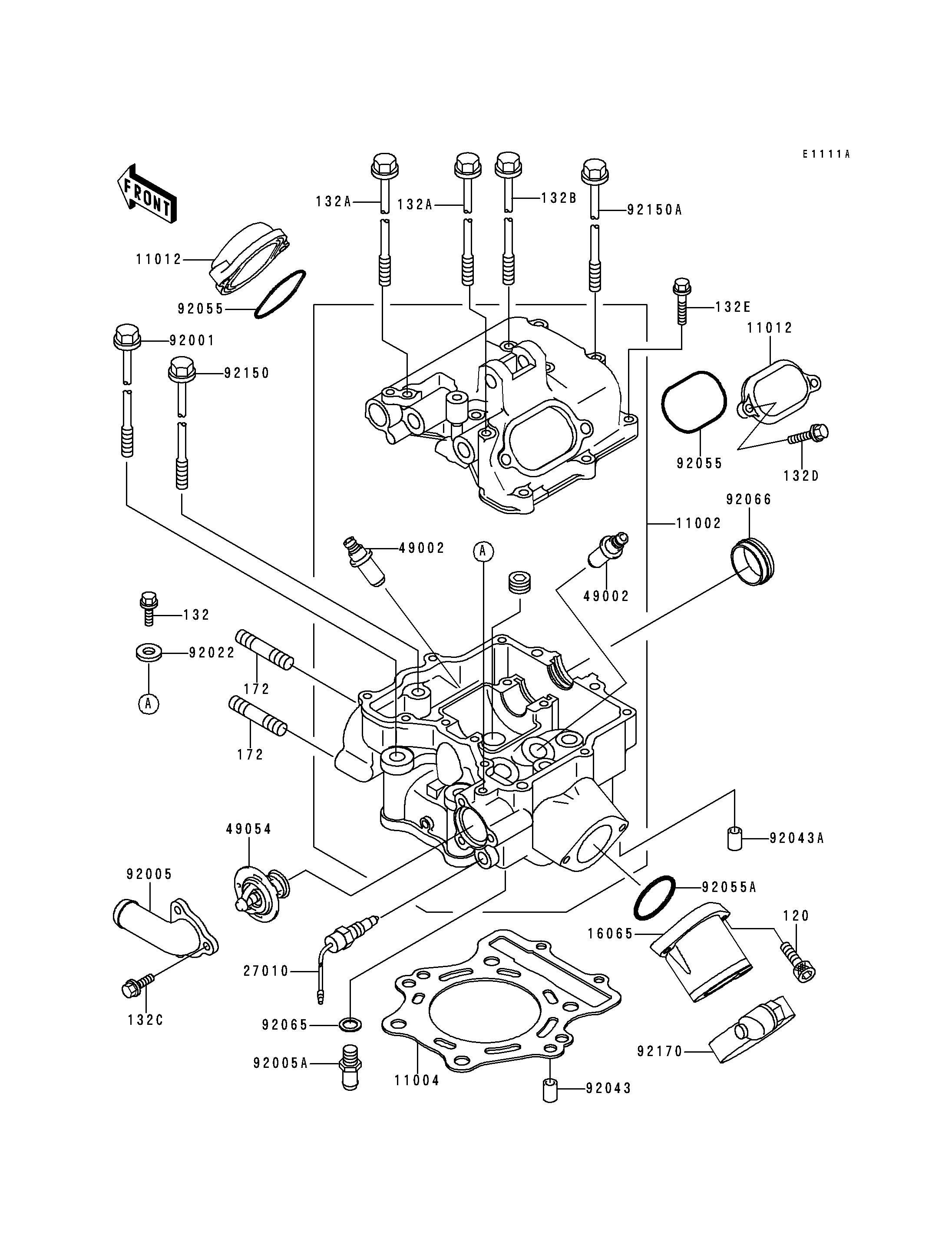

1998 Prairie 400 - Cylinder Head(VF400AE520628-)

DOWNLOAD PDF
SELECT A NEW PART
120
132
132A
132A
132B
132C
132D
132E
172
172
11002
11004
11012
11012
16065
27010
49002
49002
49054
92001
92005
92005A
92022
92043
92043A
92055
92055
92055A
92065
92066
92150
92150A
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120S0620 2
BOLT-FLANGED-SMALL 132 132G0610 1
BOLT-FLANGED-SMALL 132A 132G0655 4
BOLT-FLANGED-SMALL 132B 132G0665 2
BOLT-FLANGED-SMALL 132C 132J0612 3
BOLT-FLANGED-SMALL 132D 132V0620 4
BOLT-FLANGED-SMALL 132E 132V0630 6
BOLT-STUD,8X22 172 172G0822 4
HEAD-ASSY-CYLINDER 11002 11002-1342 1
GASKET-HEAD 11004 11004-1233 1
CAP,ROCKER CASE 11012 11012-1793 2
HOLDER-CARBURETOR 16065 16065-1337 1
SWITCH,SENSOR WATER 27010 27010-1346 1
GUIDE-VALVE 49002 49002-1052 AR
THERMOSTAT 49054 49054-1053 1
BOLT,FLANGED,10X185 92001 92001-1994 4
FITTING 92005 92005-1121 1
FITTING 92005A 92005-1344 1
WASHER,6.2X11X1 92022 92022-304 1
PIN,6.2X8X14 92043 92043-1263 2
PIN,DOWEL,8X10 92043A 92043-1302 2
RING-O,55MM 92055 92055-1120 2
RING-O,39.5X2.4 92055A 92055-1342 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG 92066 92066-1289 1
BOLT,8X83 92150 92150-1531 2
BOLT,6X135 92150A 92150-1552 2
CLAMP 92170 92170-1677 1
