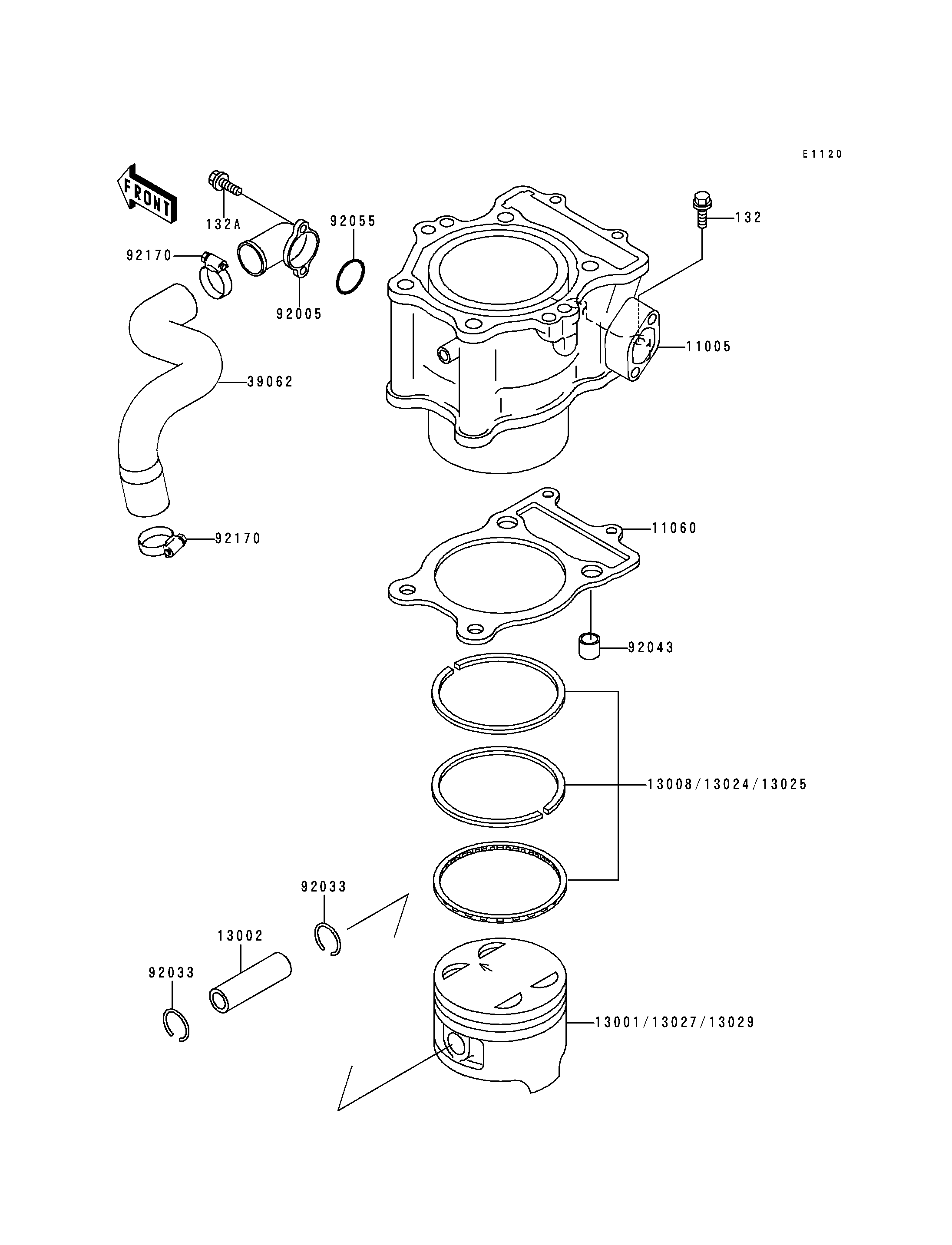

1998 Prairie 400 - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
11005
11060
13001
13002
13008
13024
13025
13027
13029
39062
92005
92033
92033
92043
92055
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0625 2
BOLT-FLANGED-SMALL 132A 132J0616 2
CYLINDER-ENGINE 11005 11005-1673 1
GASKET,CYLINDER BASE 11060 11060-1205 1
PISTON-ENGINE,STD 13001 13001-1456 1
PIN-PISTON 13002 13002-1056 1
RING-SET-PISTON,STD 13008 13008-1142 1
RING-SET-PISTON LL,O/S 1.00 13024 13024-1090 1
RING-SET-PISTON L,O/S 0.50 13025 13025-1114 1
PISTON-ENGINE LL,O/S 1.00 13027 13027-1185 1
PISTON-ENGINE L,O/S 0.50 13029 13029-1232 1
HOSE-COOLING 39062 39062-1674 1
FITTING,CYLINDER 92005 92005-1145 1
RING-SNAP 92033 92033-1188 2
PIN,11X14X12.3 92043 92043-1266 2
RING-O 92055 92055-091 1
CLAMP 92170 92170-1497 2
