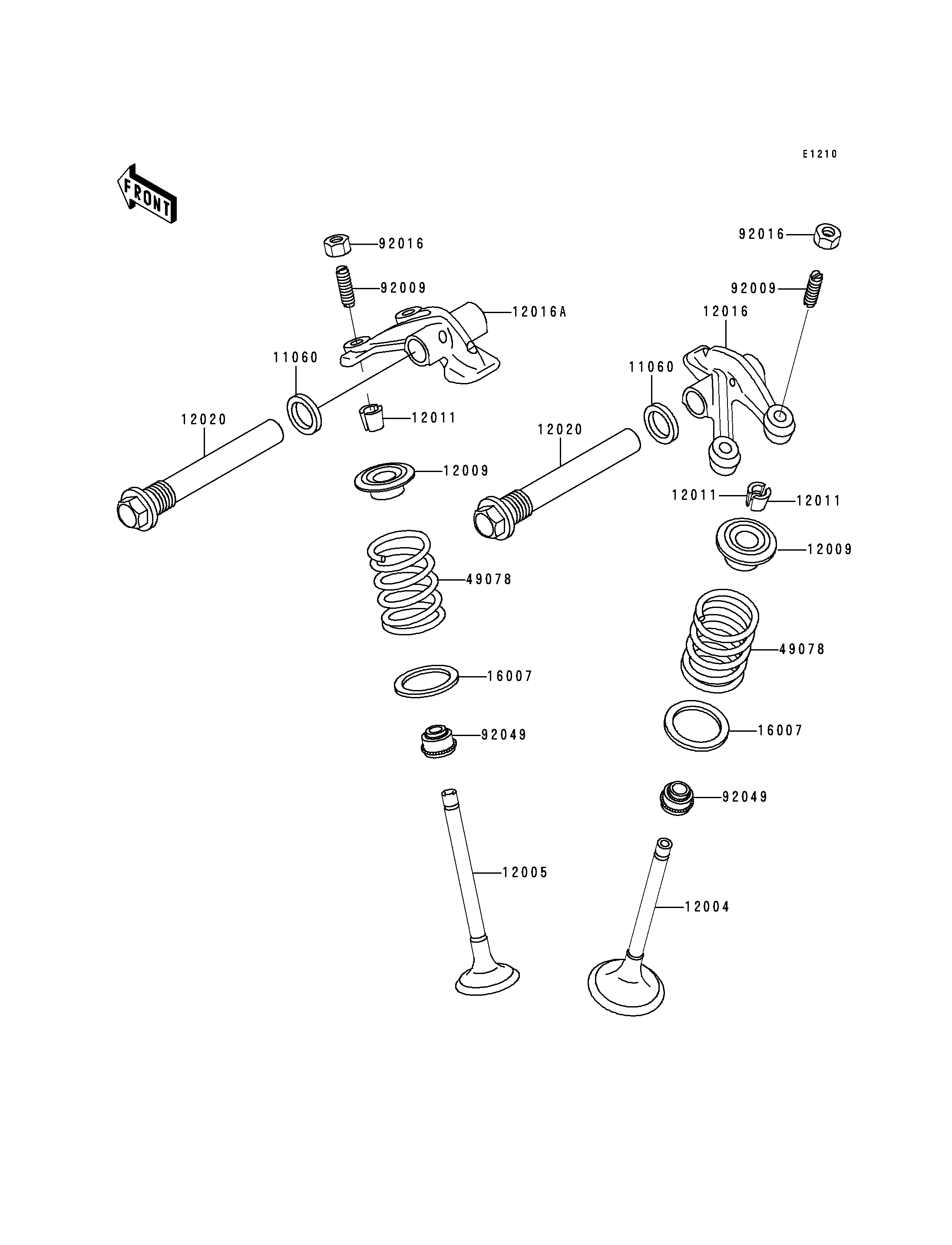

Parts Diagrams |
11060
11060
12004
12005
12009
12009
12011
12011
12011
12016
12016A
12020
12020
16007
16007
49078
49078
92009
92009
92016
92016
92049
92049
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,ROCKER SHAFT | 11060 | 11060-1287 | 2 | ||
VALVE-INTAKE | 12004 | 12004-1106 | 2 | ||
VALVE-EXHAUST | 12005 | 12005-1189 | 2 | ||
RETAINER-VALVE SPRING | 12009 | 12009-1054 | 4 | ||
COLLET | 12011 | 12011-1003 | 8 | ||
ARM-ROCKER,INTAKE | 12016 | 12016-1089 | 1 | ||
ARM-ROCKER,EXHAUST | 12016A | 12016-1090 | 1 | ||
SHAFT-ROCKER | 12020 | 12020-1067 | 2 | ||
SEAT-SPRING,17.5X23.8X0.5 | 16007 | 16007-1178 | 4 | ||
SPRING-ENGINE VALVE | 49078 | 49078-1073 | 4 | ||
SCREW,6MM | 92009 | 92009-1032 | 4 | ||
NUT,6MM | 92016 | 92016-061 | 4 | ||
SEAL-OIL,RVC2-5.5X8.5X8.3 | 92049 | 92049-1062 | 4 |
GASKET,ROCKER SHAFT | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-INTAKE | |
REF # | 12004 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-EXHAUST | |
REF # | 12005 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RETAINER-VALVE SPRING | |
REF # | 12009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLET | |
REF # | 12011 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
ARM-ROCKER,INTAKE | |
REF # | 12016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-ROCKER,EXHAUST | |
REF # | 12016A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-ROCKER | |
REF # | 12020 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAT-SPRING,17.5X23.8X0.5 | |
REF # | 16007 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING-ENGINE VALVE | |
REF # | 49078 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,6MM | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92016 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAL-OIL,RVC2-5.5X8.5X8.3 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
