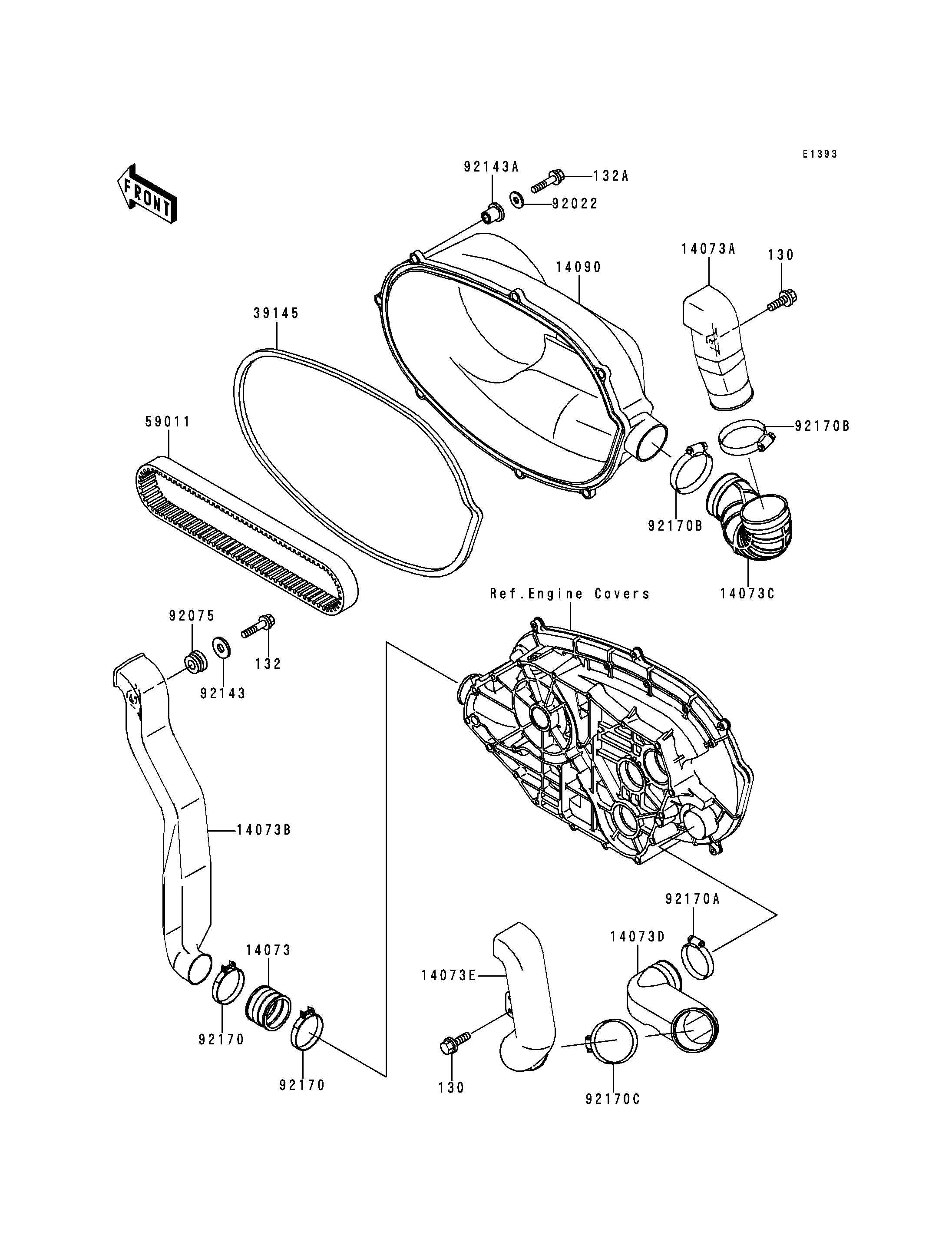

1998 Prairie 400 - Converter Cover/Drive Belt
130
130
132
132A
14073
14073A
14073B
14073C
14073D
14073E
14090
39145
59011
92022
92075
92143
92143A
92170
92170
92170A
92170B
92170B
92170C
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0612 | 3 | ||
BOLT-FLANGED-SMALL | 132 | 132G0625 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132J0630 | 7 | ||
DUCT | 14073 | 14073-1324 | 1 | ||
DUCT,SNORKEL,EX | 14073A | 14073-1678 | 1 | ||
DUCT,SNORKEL,IN | 14073B | 14073-1679 | 1 | ||
DUCT,SNORKEL,EX | 14073C | 14073-1680 | 1 | ||
DUCT,SNORKEL,EX | 14073D | 14073-1683 | 1 | ||
DUCT,SNORKEL,EX | 14073E | 14073-1684 | 1 | ||
COVER,BELT CONVERTER | 14090 | 14090-1760 | 1 | ||
TRIM-SEAL | 39145 | 39145-1100 | 1 | ||
BELT,CONVERTER | 59011 | 59011-1060 | 1 | ||
WASHER,7X18X1.2 | 92022 | 92022-1545 | 7 | ||
DAMPER,RUBBER | 92075 | 92075-1123 | 1 | ||
COLLAR | 92143 | 92143-1353 | 1 | ||
COLLAR | 92143A | 92143-1888 | 7 | ||
CLAMP | 92170 | 92170-1448 | 2 | ||
CLAMP | 92170A | 92170-1674 | 1 | ||
CLAMP | 92170B | 92170-1763 | 2 | ||
CLAMP | 92170C | 92170-1764 | 1 |
