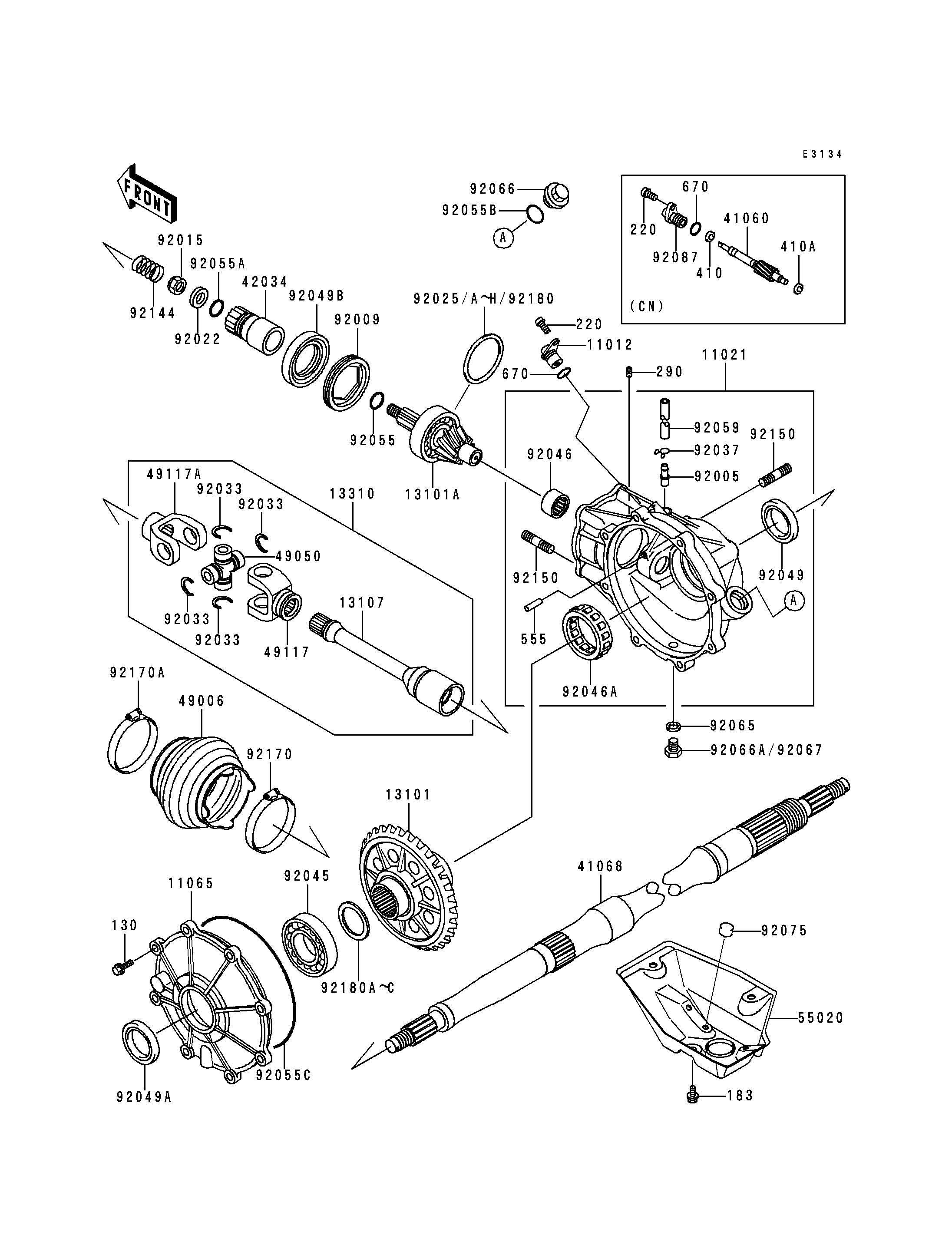

1998 Prairie 400 - Drive Shaft

DOWNLOAD PDF
SELECT A NEW PART
11021
11021
11065
11065
13101
13101
13101A
13101A
13107
13107
13310
13310
41068
41068
42034
42034
49006
49006
49050
49050
49117
49117
49117A
49117A
55020
55020
92005
92005
92009
92009
92015
92015
92022
92022
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92033
92033
92033
92033
92033
92033
92033
92033
92037
92037
92045
92045
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92049B
92049B
92055
92055
92055A
92055A
130
130
183
183
220
220
220
220
290
290
555
555
670
670
670
670
92055B
92055B
92055C
92055C
92059
92059
92065
92065
92066
92066
92075
92075
92144
92144
92150
92150
92150
92150
92170
92170
92170A
92170A
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,DRIVE SHAFT 11021 11021-1126 1
CAP 11065 11065-1103 1
GEAR-ASSY,VEVEL 13101 13101-1257 1
GEAR-ASSY,VEVEL 13101A 13101-1258 1
SHAFT,DRIVE 13107 13107-1394 1
SHAFT-ASSY,DRIVE 13310 13310-1022 1
AXLE 41068 41068-1388 1
COUPLING 42034 42034-1145 1
BOOT 49006 49006-1307 1
SPIDER 49050 49050-1002 1
YOKE,DRIVE 49117 49117-1085 1
YOKE,DRIVE 49117A 49117-1086 1
GUARD 55020 55020-1551 1
FITTING,BREATHER 92005 92005-1127 1
SCREW 92009 92009-1528 1
NUT,12MM 92015 92015-1182 1
WASHER,12.3X25X3.2 92022 92022-1293 1
SHIM,52.5X61.5X0.15 92025 92025-1669 AR
SHIM,52.5X61.5X0.18 92025A 92025-1670 AR
SHIM,52.5X61.5X0.8 92025B 92025-1671 AR
SHIM,52.5X61.5X0.9 92025C 92025-1672 AR
SHIM,52.5X61.5X1.0 92025D 92025-1673 AR
SHIM,52.5X61.5X1.1 92025E 92025-1674 AR
SHIM,52.5X61.5X1.2 92025F 92025-1675 AR
SHIM,52.5X61.5X1.3 92025G 92025-1676 AR
SHIM,52.5X61.5X1.4 92025H 92025-1677 AR
RING-SNAP 92033 92033-1030 4
CLAMP,TUBE 92037 92037-147 1
BEARING-BALL,#6009 92045 92045-1015 1
BEARING-NEEDLE,NK20/16RE 92046 92046-1183 1
BEARING-NEEDLE 92046A 92046-1247 1
SEAL-OIL 92049 92049-1248 1
SEAL-OIL 92049A 92049-1287 1
SEAL-OIL 92049B 92049-1460 1
RING-O 92055 92055-012 1
RING-O,27MM 92055A 92055-1119 1
BOLT-FLANGED 130 130P0825 8
BOLT-UPSET-WS-SMALL 183 183H0814 3
SCREW-PAN-CROS 220 220X0614 1
SCREW-SET-SOCKET 290 290Q0612 1
PIN-SPRING 555 555A0422 1
O RING,12MM 670 670B2012 1
RING-O,25.7X2.4 92055B 92055-1136 1
RING-O,154.1X2.5 92055C 92055-1410 1
TUBE,4.7X9.5X900 92059 92059-1929 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG 92066 92066-1303 1
DAMPER 92075 92075-021 3
SPRING 92144 92144-1278 1
BOLT,10X22 92150 92150-1197 8
CLAMP 92170 92170-1763 1
CLAMP 92170A 92170-1764 1
SHIM,52.5X61.5X0.10 92180 92180-1115 AR
SHIM,T=1.0 92180A 92180-1205 AR
SHIM,T=0.1 92180B 92180-1206 AR
SHIM,T=0.5 92180C 92180-1207 AR
CAP,METER GEAR 11012 11012-1650 1
GEAR-METER SCREW 41060 41060-1157 1
WASHER-PLAIN-SMALL,5MM 410 410B0500 1
WASHER-PLAIN-SMALL,6MM 410A 410B0600 1
PLUG,DRAIN,10X8 92066A 92066-1490 1
PLUG,DRAIN,10X12 92067 92067-001 1
BUSHING-METER GEAR 92087 92087-1057 1
