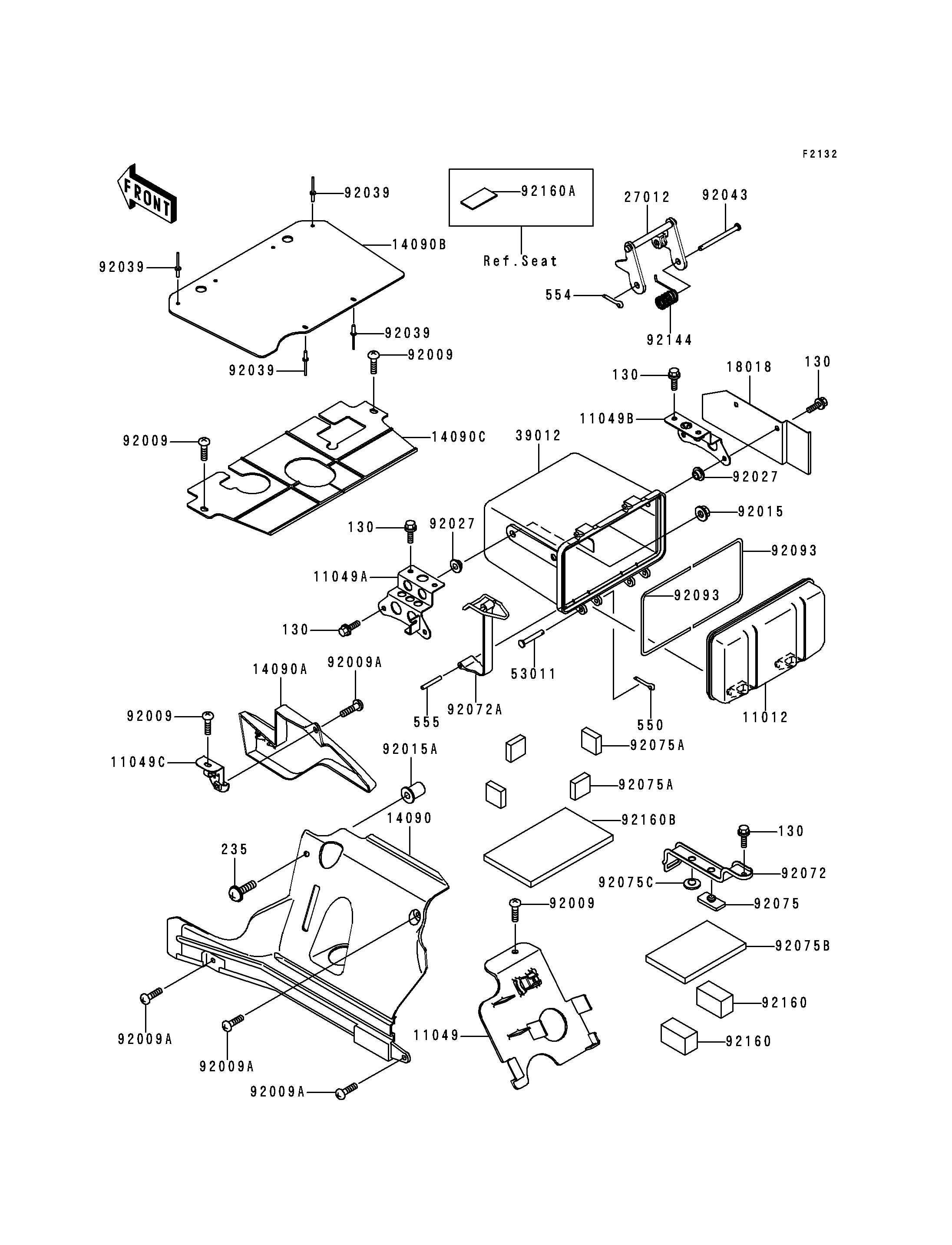

1998 Prairie 400 - Battery Case

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130
235
550
554
555
11012
11049
11049A
11049B
11049C
14090
14090A
14090B
14090C
18018
27012
39012
53011
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92015
92015A
92027
92027
92039
92039
92039
92039
92043
92072
92072A
92075
92075C
92093
92093
92144
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 9
SCREW-PAN-WP-CROS 235 235C0516 1
PIN-COTTER,2.0X12 550 550D2012 2
PIN-SNAP 554 554A0600 1
PIN-SPRING 555 555A0436 2
CAP,STORAGE CASE 11012 11012-1951 1
BRACKET,ELECTRIC BASE 11049 11049-1516 1
BRACKET,STORAGE CASE,LH 11049A 11049-1733 1
BRACKET,STORAGE CASE,RH 11049B 11049-1734 1
BRACKET 11049C 11049-1738 1
COVER,ENGINE,LH 14090 14090-1667 1
COVER,ENGINE,RH 14090A 14090-1668 1
COVER,FRONT COVER 14090B 14090-1723 1
COVER,REAR COVER 14090C 14090-1724 1
PLATE-HEAT GUARD 18018 18018-1127 1
HOOK,SEAT 27012 27012-1381 1
CASE-STORAGE 39012 39012-1059 1
PIN,6X39 53011 53011-006 2
SCREW 92009 92009-1166 4
SCREW,6X16 92009A 92009-1621 4
NUT,FLANGED,6MM,BLACK 92015 92015-1233 4
NUT,WELL,5MM 92015A 92015-1757 1
COLLAR,L=5.6 92027 92027-1933 4
RIVET 92039 92039-3712 4
PIN,6X77 92043 92043-1367 1
BAND,BATTERY 92072 92072-1333 1
BAND,STORAGE CASE 92072A 92072-1337 2
DAMPER 92075 92075-1054 1
DAMPER,RUBBER 92075C 92075-261 1
SEAL 92093 92093-1457 2
SPRING,SEAT HOOK 92144 92144-1174 1
DAMPER 92160A 92160-1846 1
DAMPER,FUEL TANK,RR 92075A 92075-1483 4
DAMPER,BATTERY 92075B 92075-1997 1
DAMPER 92160 92160-1744 2
DAMPER,BATTERY 92160B 92160-1926 1
