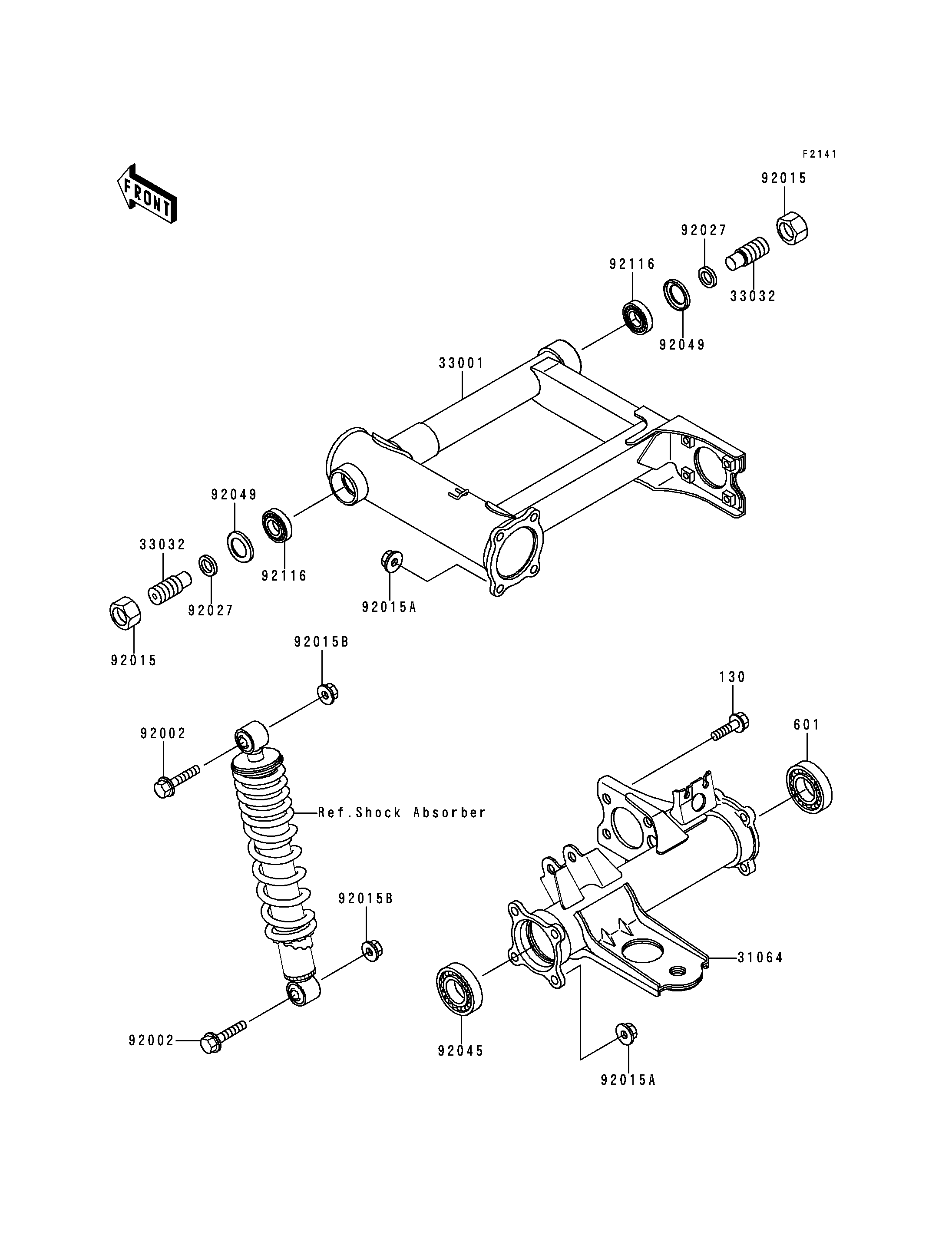

Parts Diagrams |
130
601
31064
33001
33032
33032
92002
92015
92015
92015A
92015A
92027
92027
92045
92049
92049
92116
92116
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,10X25 | 130 | 130J1025 | 4 | ||
| BEARING-BALL,#6008UU | 601 | 601A6008UU | 1 | ||
| PIPE-COMP | 31064 | 31064-1214 | 1 | ||
| ARM-COMP-SWING | 33001 | 33001-1555 | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-1034 | 2 | ||
| BOLT,FLANGED,12X55 | 92002 | 92002-1840 | 2 | ||
| NUT,22MM | 92015 | 92015-1229 | 2 | ||
| NUT,FLANGED,10MM | 92015A | 92015-1335 | 8 | ||
| COLLAR,17X26X4.5 | 92027 | 92027-1394 | 2 | ||
| BEARING-BALL | 92045 | 92045-1177 | 1 | ||
| SEAL-OIL,26406 | 92049 | 92049-1030 | 2 | ||
| BEARING-ROLLER,4T30203E1 | 92116 | 92116-1001 | 2 | ||
| NUT,LOCK,12MM | 92015B | 92015-1617 | 2 |
| BOLT-FLANGED,10X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6008UU | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-COMP-SWING | |
| REF # | 33001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-SWING ARM | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X55 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,22MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| COLLAR,17X26X4.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,26406 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,4T30203E1 | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,12MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
