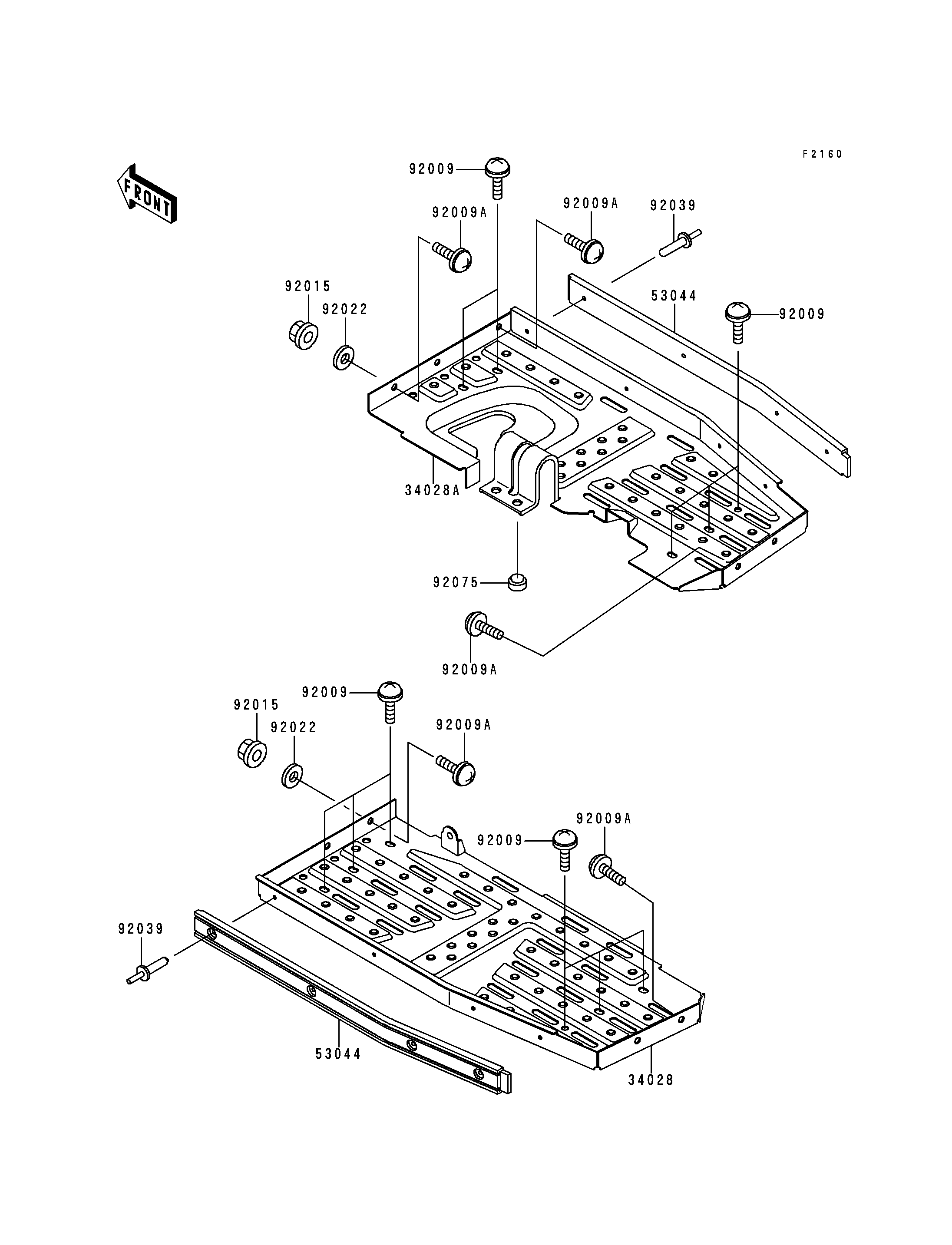

Parts Diagrams |
34028
34028A
53044
53044
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92015
92015
92022
92022
92039
92039
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STEP,FOOT BOARD,LH | 34028 | 34028-1454 | 1 | ||
| STEP,FOOT BOARD,RH | 34028A | 34028-1455 | 1 | ||
| TRIM,FOOT BOARD | 53044 | 53044-1293 | 2 | ||
| SCREW | 92009 | 92009-1166 | 11 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 10 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 2 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 2 | ||
| RIVET | 92039 | 92039-1150 | 8 | ||
| DAMPER | 92075 | 92075-1598 | 2 |
| STEP,FOOT BOARD,LH | |
| REF # | 34028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STEP,FOOT BOARD,RH | |
| REF # | 34028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,FOOT BOARD | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
