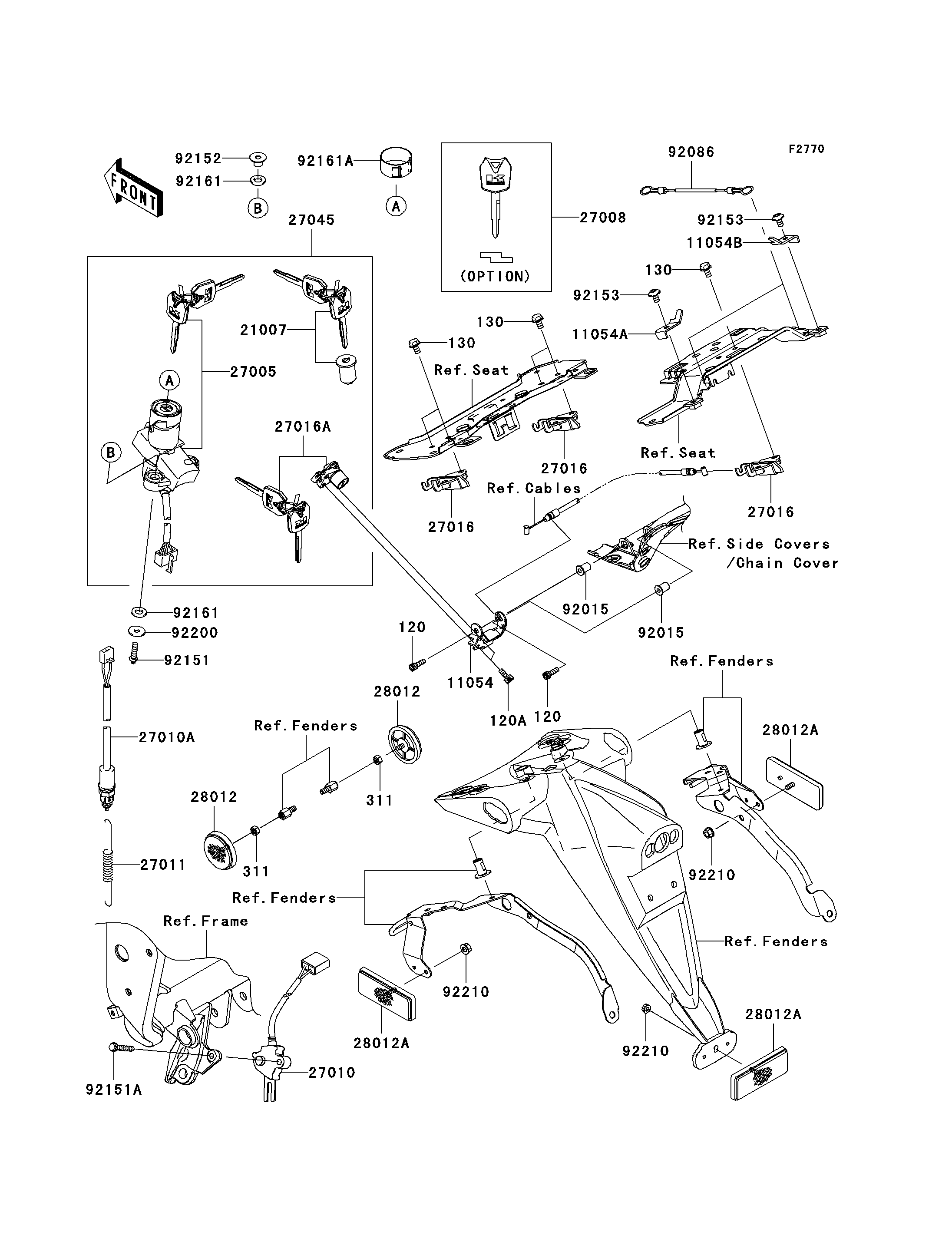

2007 Z1000 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
120
120A
130
130
130
311
311
11054
11054A
11054B
21007
27005
27008
27010
27010A
27011
27016
27016
27016
27016A
27045
28012
28012
28012A
28012A
28012A
92015
92015
92086
92151
92151A
92152
92153
92153
92161
92161
92161A
92200
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X16 120 120CA0516 2
BOLT-SOCKET,5X12 120A 120W0512 2
BOLT-FLANGED,6X12 130 130L0612 6
NUT-HEX 311 311C0500 2
BRACKET,SEAT LOCK 11054 11054-0510 1
BRACKET,SEAT LOCK,LH 11054A 11054-1721 1
BRACKET,SEAT LOCK,RH 11054B 11054-1722 1
ROTOR,LOCK,TANK CAP 21007 21007-5057 1
SWITCH-ASSY-IGNITION 27005 27005-5143 1
KEY-LOCK,BLANK 27008 27008-0030 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0065 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
SPRING,BRAKE LAMP SWITCH 27011 27011-021 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 3
LOCK-ASSY,SEAT 27016A 27016-5309 1
SWITCH-ASSY 27045 27045-5372 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-1077 3
NUT,WELL,5MM 92015 92015-1757 2
WIRE,L=150 92086 92086-1075 2
BOLT,TORX,6X22 92151 92151-1946 2
BOLT,6X35 92151A 92151-1982 1
COLLAR 92152 92152-0352 2
BOLT,SOCKET,6X10 92153 92153-0410 2
DAMPER,IGNITION SWITCH 92161 92161-0240 4
DAMPER,IGNITION SWITCH 92161A 92161-0257 1
WASHER,6X20X1.6 92200 92200-0212 2
NUT,FLANGED,5MM 92210 92210-0007 3
