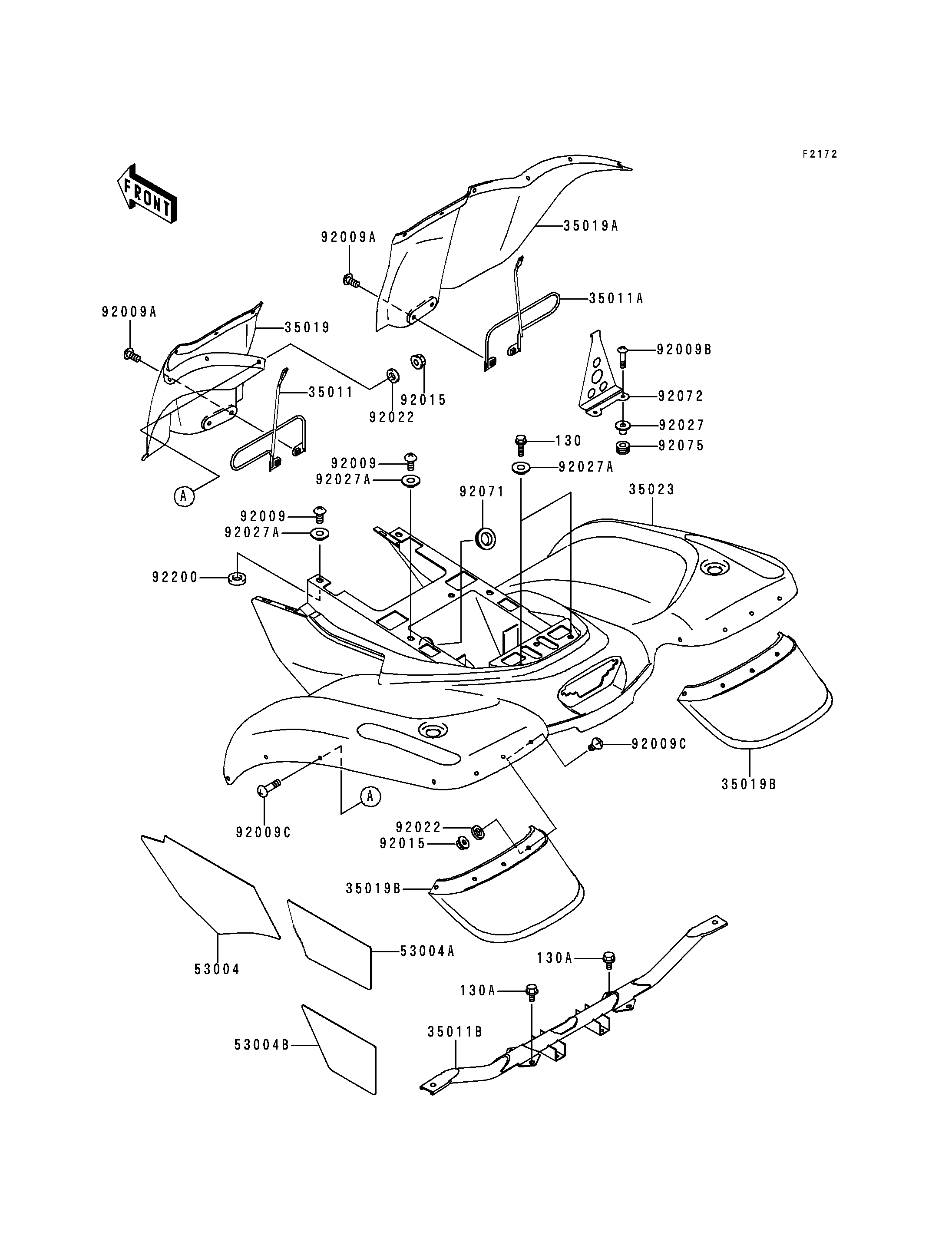

Parts Diagrams |
130
130A
130A
35011
35011A
35011B
35019
35019A
35019B
35019B
35023
53004
53004A
53004B
92009
92009
92009A
92009A
92009B
92009C
92009C
92015
92015
92022
92022
92027
92027A
92027A
92027A
92071
92072
92075
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130C0618 | 2 | ||
BOLT-FLANGED,8X16,BLACK | 130A | 130J0816 | 4 | ||
STAY,REAR FLAP,LH | 35011 | 35011-1759 | 1 | ||
STAY,REAR FLAP,RH | 35011A | 35011-1760 | 1 | ||
STAY,REAR FENDER | 35011B | 35011-1782 | 1 | ||
FLAP,RR,FR,LH,F.BLACK | 35019 | 35019-1334-6Z | 1 | ||
FLAP,RR,FR,RH,F.BLACK | 35019A | 35019-1335-6Z | 1 | ||
FLAP,RR,RR,F.BLACK | 35019B | 35019-1336-6Z | 2 | ||
FENDER-REAR,S.GRAY | 35023 | 35023-1439-RG | 1 | ||
MAT,REAR FENDER | 53004 | 53004-1111 | 1 | ||
MAT,REAR FENDER | 53004A | 53004-1112 | 1 | ||
MAT,REAR FENDER | 53004B | 53004-1113 | 1 | ||
SCREW | 92009 | 92009-1166 | 4 | ||
SCREW,6X14 | 92009A | 92009-1288 | 4 | ||
SCREW,6X25 | 92009B | 92009-1465 | 2 | ||
SCREW,6X16 | 92009C | 92009-1621 | 22 | ||
NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 22 | ||
WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 22 | ||
COLLAR,FLANGED,L=12.1,BLACK | 92027 | 92027-1651 | 2 | ||
COLLAR,L=4.7 | 92027A | 92027-1964 | 6 | ||
GROMMET | 92071 | 92071-1237 | 1 | ||
BAND,BATTERY CASE | 92072 | 92072-1328 | 1 | ||
DAMPER,CASE | 92075 | 92075-222 | 2 | ||
WASHER,8.5X20X2.3 | 92200 | 92200-1055 | 2 |
