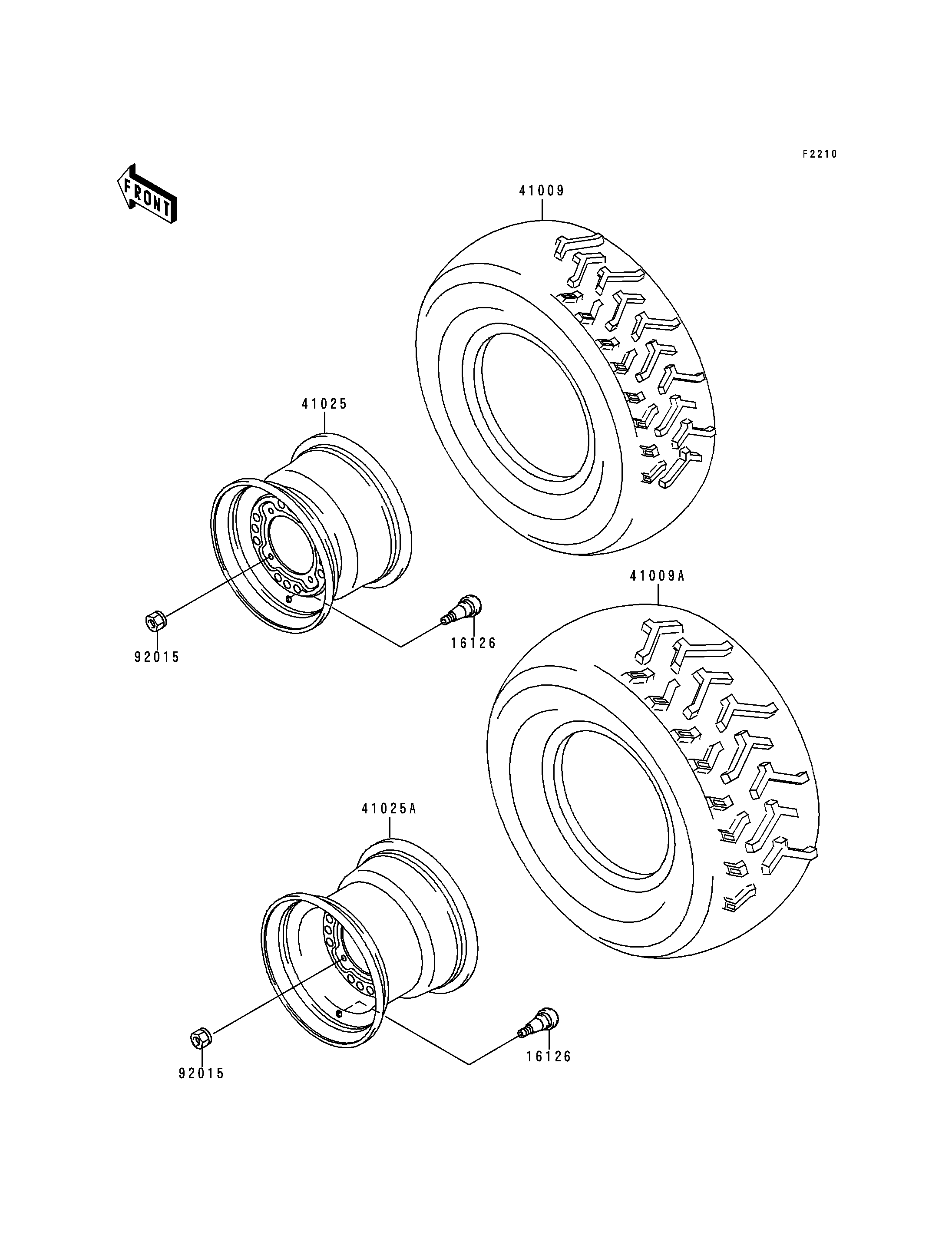

16126
16126
41009
41009A
41025
41025A
92015
92015
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,FR,AT25X8-12,KT121A(D) 41009 41009-1117 2
TIRE,RR,AT25X11-10,KT125(D) 41009A 41009-1118 2
RIM,FR,12X6.0,SILVER 41025 41025-1313-5A 2
RIM,RR,10X8.5,SILVER 41025A 41025-1314-5A 2
NUT,LOCK,10MM 92015 92015-1808 16
