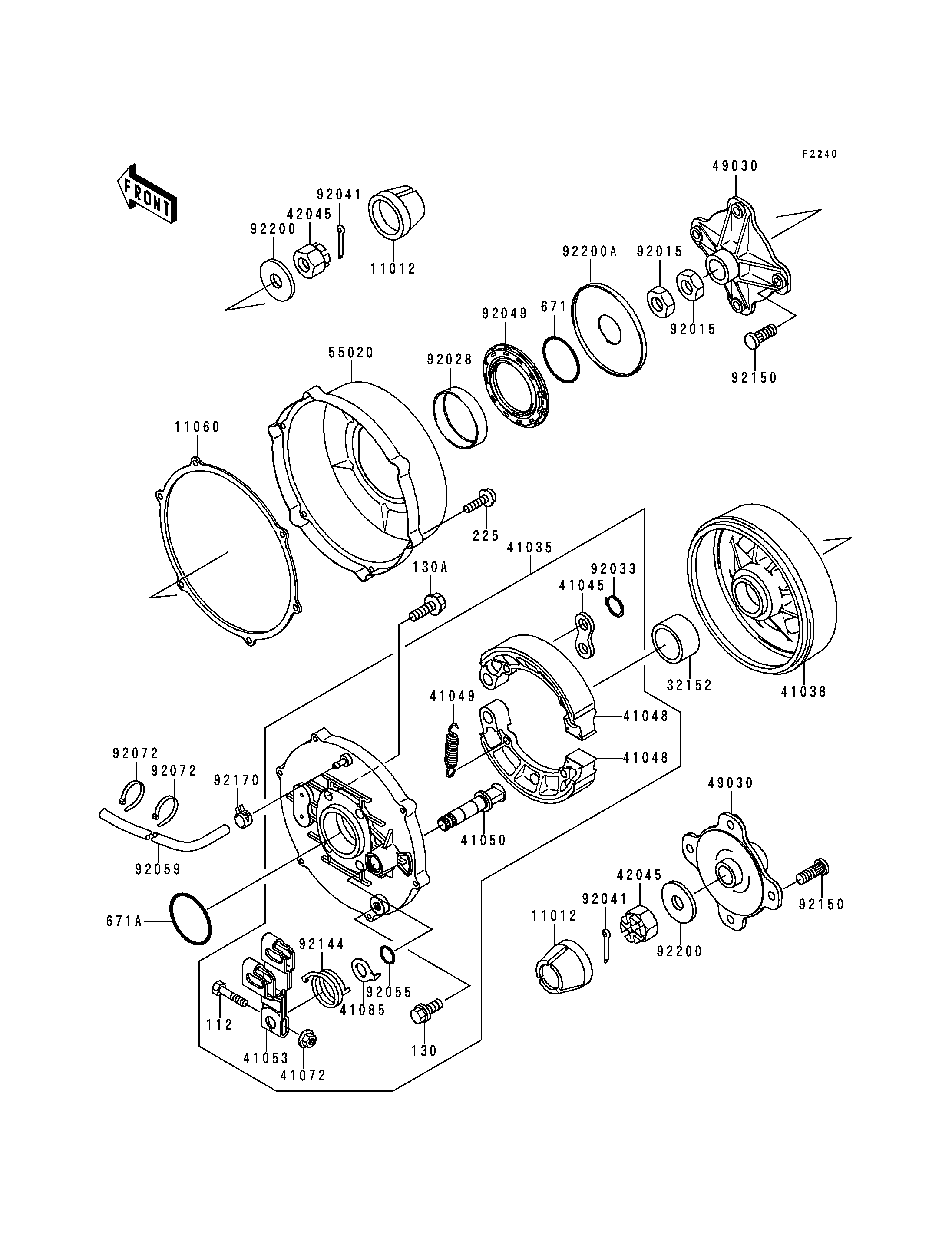

1998 Prairie 400 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
112
130
130A
225
671
671A
11012
11012
11060
32152
41035
41038
41045
41048
41048
41049
41050
41053
41072
41085
42045
42045
49030
49030
55020
92015
92015
92028
92033
92041
92041
92049
92055
92059
92072
92072
92144
92150
92150
92170
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112H0640 1
BOLT-FLANGED,10X12 130 130B1012 1
BOLT-FLANGED,10X30 130A 130G1030 4
SCREW-PAN-WSP-CROS 225 225C0616 6
O RING 671 671B2550 1
O RING,70MM 671A 671B2570 1
CAP,WHEEL 11012 11012-1969 2
GASKET 11060 11060-1731 1
PIPE,40X50.8X28 32152 32152-1082 1
PANEL-ASSY-BRAKE,RR 41035 41035-1496 1
DRUM,REAR BRAKE 41038 41038-1280 1
WASHER 41045 41045-006 1
SHOE-BRAKE 41048 41048-1127 2
SPRING,BRAKE SHOE 41049 41049-012 2
CAM-BRAKE 41050 41050-1089 1
LEVER-BRAKE CAM 41053 41053-1084 1
NUT,6MM 41072 41072-007 1
INDICATOR 41085 41085-1086 1
NUT,CASTLE,18MM 42045 42045-018 2
HUB,RR,LH 49030 49030-1120 2
GUARD,REAR BRAKE DRUM 55020 55020-1625 1
NUT,LOCK,37MM 92015 92015-1545 2
BUSHING 92028 92028-1824 1
RING-SNAP,15MM 92033 92033-1250 2
COTTER,4.0X35 92041 92041-1053 2
SEAL-OIL 92049 92049-1472 1
RING-O,ID=16.4 92055 92055-1376 1
TUBE,4.7X9.5X1240 92059 92059-1968 1
BAND,L=123 92072 92072-030 2
SPRING 92144 92144-1365 1
BOLT 92150 92150-1289 8
CLAMP 92170 92170-2042 1
WASHER,18.5X52X4.5 92200 92200-1139 2
WASHER 92200A 92200-1372 1
