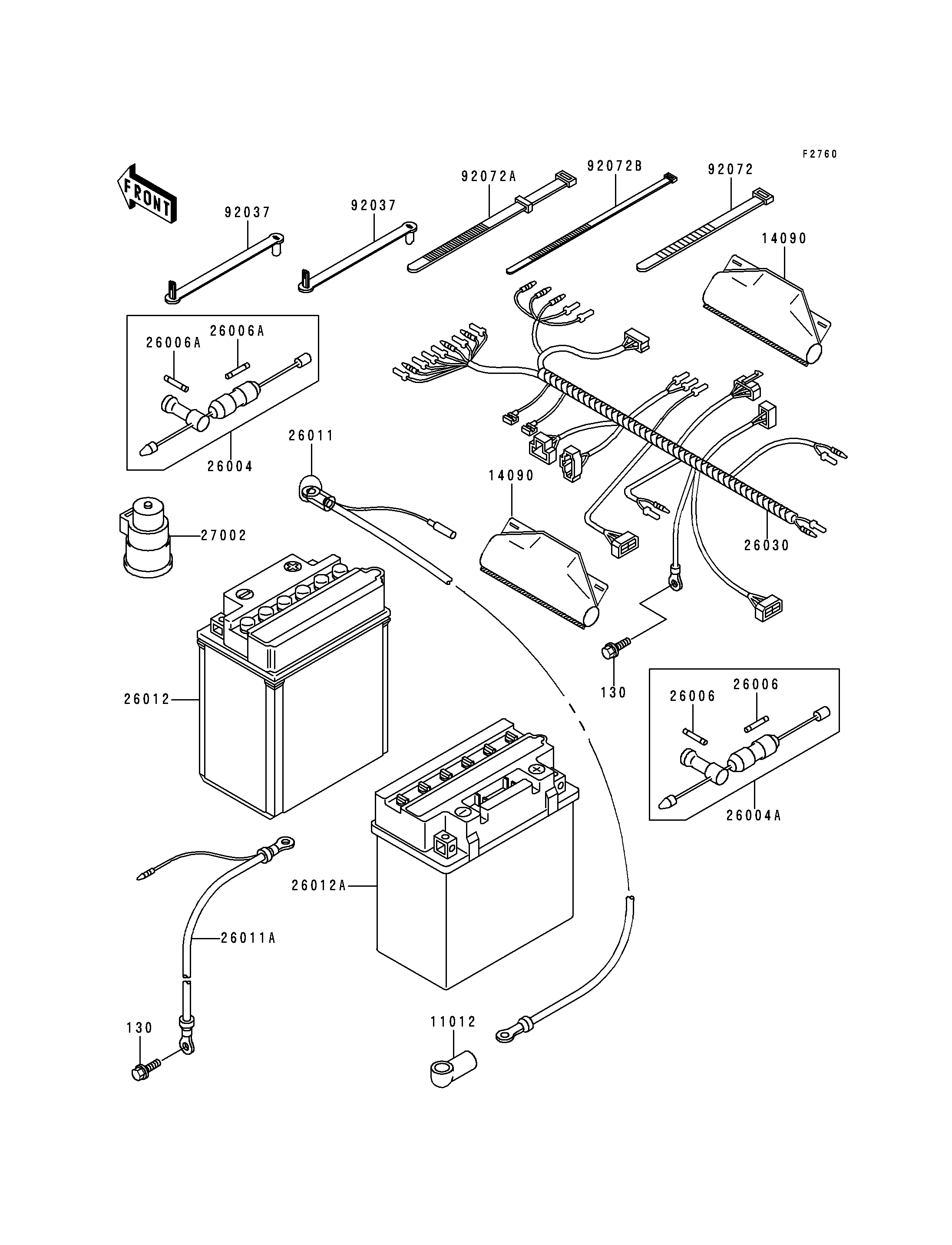

1998 Prairie 400 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
11012
14090
14090
26004
26004A
26006
26006
26006A
26006A
26011
26011A
26030
27002
92037
92037
92072
92072A
92072B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130B0612 2
CAP,TERMINAL 11012 11012-1354 1
COVER,COUPLER 14090 14090-1331 2
FUSE-ASSY 26004 26004-1104 1
FUSE-ASSY 26004A 26004-3715 1
FUSE,30A,L=30 26006 26006-1059 2
FUSE,8A,L=30 26006A 26006-1062 2
WIRE-LEAD,BATTERY(+) 26011 26011-1513 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1637 1
HARNESS,MAIN 26030 26030-1548 1
RELAY-ASSY 27002 27002-1095 1
CLAMP,SPEED,L=80.5 92037 92037-1903 2
BAND,L=123 92072 92072-030 4
BAND,L=186 92072A 92072-056 1
BAND,L=188 92072B 92072-1239 13
BATTERY,12V 14AH,YB14A-A2 26012 26012-1146 1
BATTERY,YB16CL-B,12V 19AH 26012A 26012-1315 1
