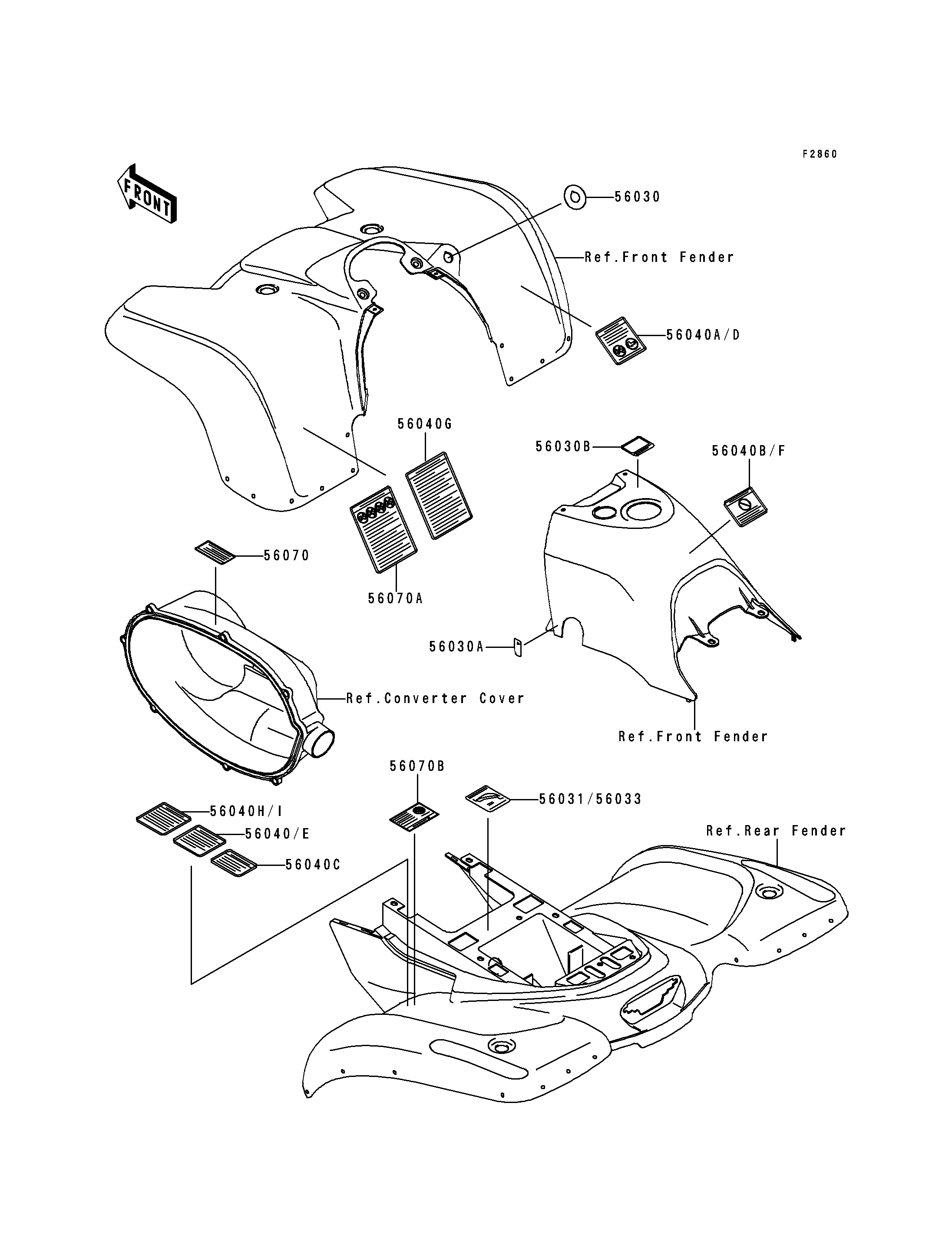

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,IGNITION SWITCH | 56030 | 56030-1086 | 1 | ||
| LABEL,FUEL TAP | 56030A | 56030-1185 | 1 | ||
| LABEL,REVERSE POWER ASSIST SW. | 56030B | 56030-1188 | 1 | ||
| LABEL-WARNING,TIRE PRESSURE | 56040 | 56040-1257 | 1 | ||
| LABEL-WARNING,TRANSPORT | 56040A | 56040-1261 | 1 | ||
| LABEL-WARNING,UNDER 16 | 56040B | 56040-1276 | 1 | ||
| LABEL-WARNING,MAX VEHICLE LOAD | 56040H | 56040-1331 | 1 | ||
| LABEL-WARNING,CVT COVER | 56070 | 56070-1132 | 1 | ||
| LABEL-WARNING,NO PASSENGER | 56070B | 56070-1141 | 1 | ||
| LABEL-MANUAL,BATTERY VENT | 56031 | 56031-1963 | 1 | ||
| LABEL-MANUAL,BATTERY VENT | 56033 | 56033-1057 | 1 | ||
| LABEL-WARNING,NO PASSENGER | 56040C | 56040-1280 | 1 | ||
| LABEL-WARNING,TRANSPORT | 56040D | 56040-1283 | 1 | ||
| LABEL-WARNING,TIRE PRESSURE | 56040E | 56040-1286 | 1 | ||
| LABEL-WARNING,AGE | 56040F | 56040-1325 | 1 | ||
| LABEL-WARNING,GENERAL | 56040G | 56040-1326 | 1 | ||
| LABEL-WARNING,MAX VEHICLE LOAD | 56040I | 56040-1338 | 1 | ||
| LABEL-WARNING,NO PASSENGER | 56070A | 56070-1140 | 1 |
