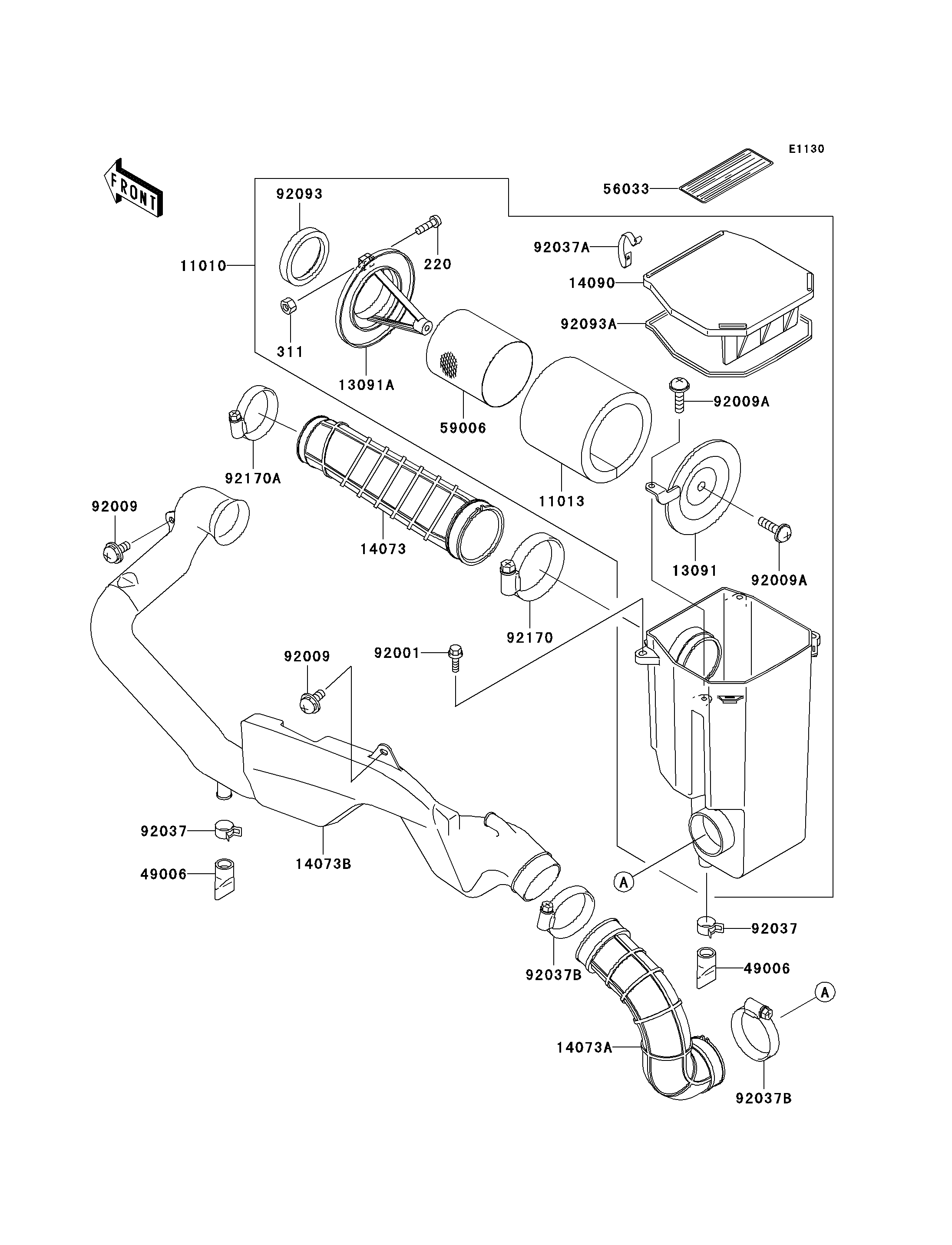

2000 Prairie 400 4X4 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
220
311
11010
11013
13091
13091A
14073
14073A
14073B
14090
49006
49006
56033
59006
92001
92009
92009
92009A
92009A
92037
92037
92037A
92037B
92037B
92093
92093A
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,5X16 220 220B0516 1
NUT-HEX 311 311B0500 1
FILTER-ASSY-AIR 11010 11010-1681 1
ELEMENT-AIR FILTER 11013 11013-1255 1
HOLDER,ELEMENT 13091 13091-1488 1
HOLDER,AIR FILTER ELEMENT 13091A 13091-1565 1
DUCT 14073 14073-1653 1
DUCT 14073A 14073-1654 1
DUCT 14073B 14073-1682 1
COVER,AIR FILTER 14090 14090-1663 1
BOOT 49006 49006-1292 2
LABEL-MANUAL,MAINTENANCE 56033 56033-1079 1
ARRESTER-FLAME 59006 59006-1052 1
BOLT,WP,6X20 92001 92001-1460 3
SCREW,6X16 92009 92009-1276 2
SCREW,6X16 92009A 92009-1890 2
CLAMP 92037 92037-1460 2
CLAMP,AIR FILTER 92037A 92037-1783 4
CLAMP 92037B 92037-3738 2
SEAL,DUST 92093 92093-1322 1
SEAL,FILTER CASE 92093A 92093-1404 1
CLAMP 92170 92170-1679 1
CLAMP 92170A 92170-1764 1
