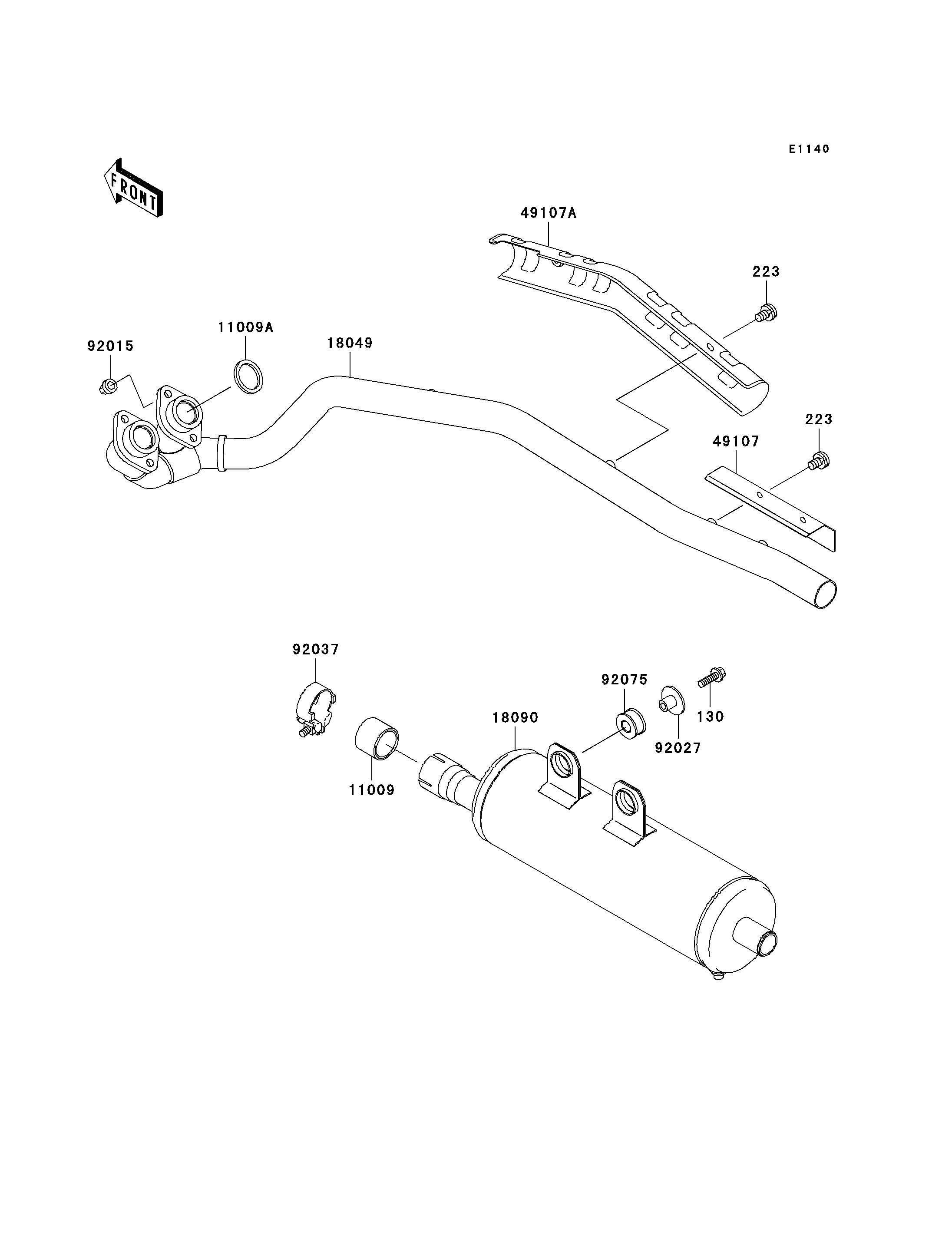

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130J0830 2
SCREW-PAN-WS-CROS,6X10 223 223C0610 4
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1667 1
GASKET,EXHAUST PIPE HOLDER 11009A 11009-1866 2
PIPE-EXHAUST 18049 18049-1914 1
BODY-COMP-MUFFLER 18090 18090-1675 1
COVER-EXHAUST PIPE 49107 49107-1130 1
COVER-EXHAUST PIPE 49107A 49107-1135 1
NUT,8MM 92015 92015-1402 4
COLLAR,MUFFLER 92027 92027-1981 2
CLAMP,42MM 92037 92037-1349 1
DAMPER,MUFFLER 92075 92075-1809 2
