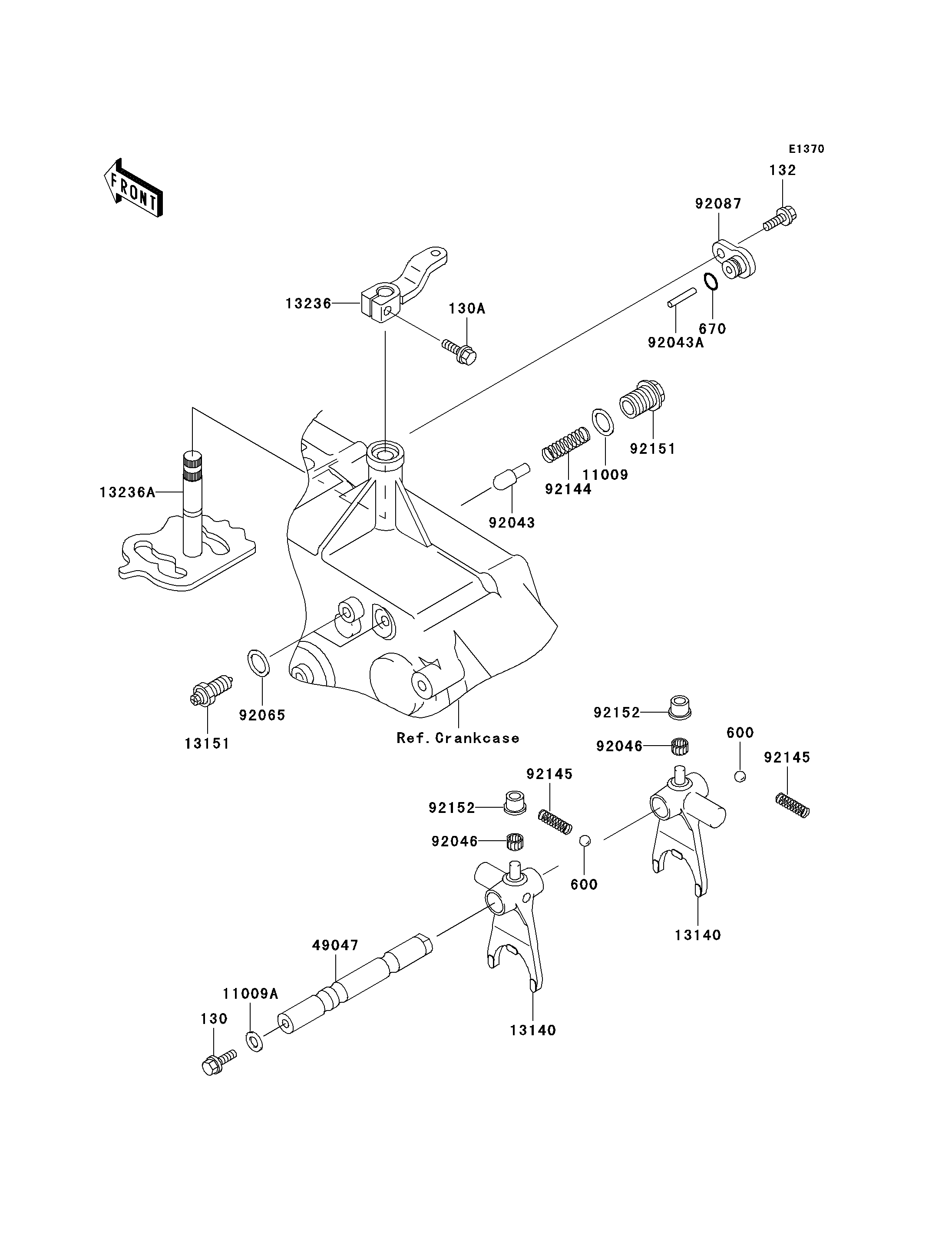

2000 Prairie 400 4X4 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
600
600
670
11009
11009A
13140
13140
13151
13236
13236A
49047
92043
92043A
92046
92046
92065
92087
92144
92145
92145
92151
92152
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130G0618 1
BOLT-FLANGED,6X20 130A 130T0620 1
BOLT-FLANGED-SMALL,6X14 132 132J0614 1
BALL-STEEL,11/32" 600 600A1100 2
O RING,10MM 670 670D1510 1
GASKET,15.5X22X1 11009 11009-1008 1
GASKET,6.5X12X1.0 11009A 11009-1568 1
FORK-SHIFT 13140 13140-1276 2
SWITCH-COMP,NEUTRAL 13151 13151-1069 2
LEVER-COMP,CHANGE 13236 13236-1318 1
LEVER-COMP,SHIFT 13236A 13236-1323 1
ROD-SHIFT 49047 49047-1098 1
PIN 92043 92043-1578 1
PIN,4X34.8 92043A 92043-1579 1
BEARING-NEEDLE 92046 92046-1262 2
GASKET,10.5X16X1 92065 92065-058 2
BUSHING-METER GEAR 92087 92087-1058 1
SPRING,CHANGE LEVER,FR/RR 92144 92144-1702 1
SPRING,L=27.9 92145 92145-1178 2
BOLT,NEUTRAL POSITION 92151 92151-1388 1
COLLAR 92152 92152-1091 2
