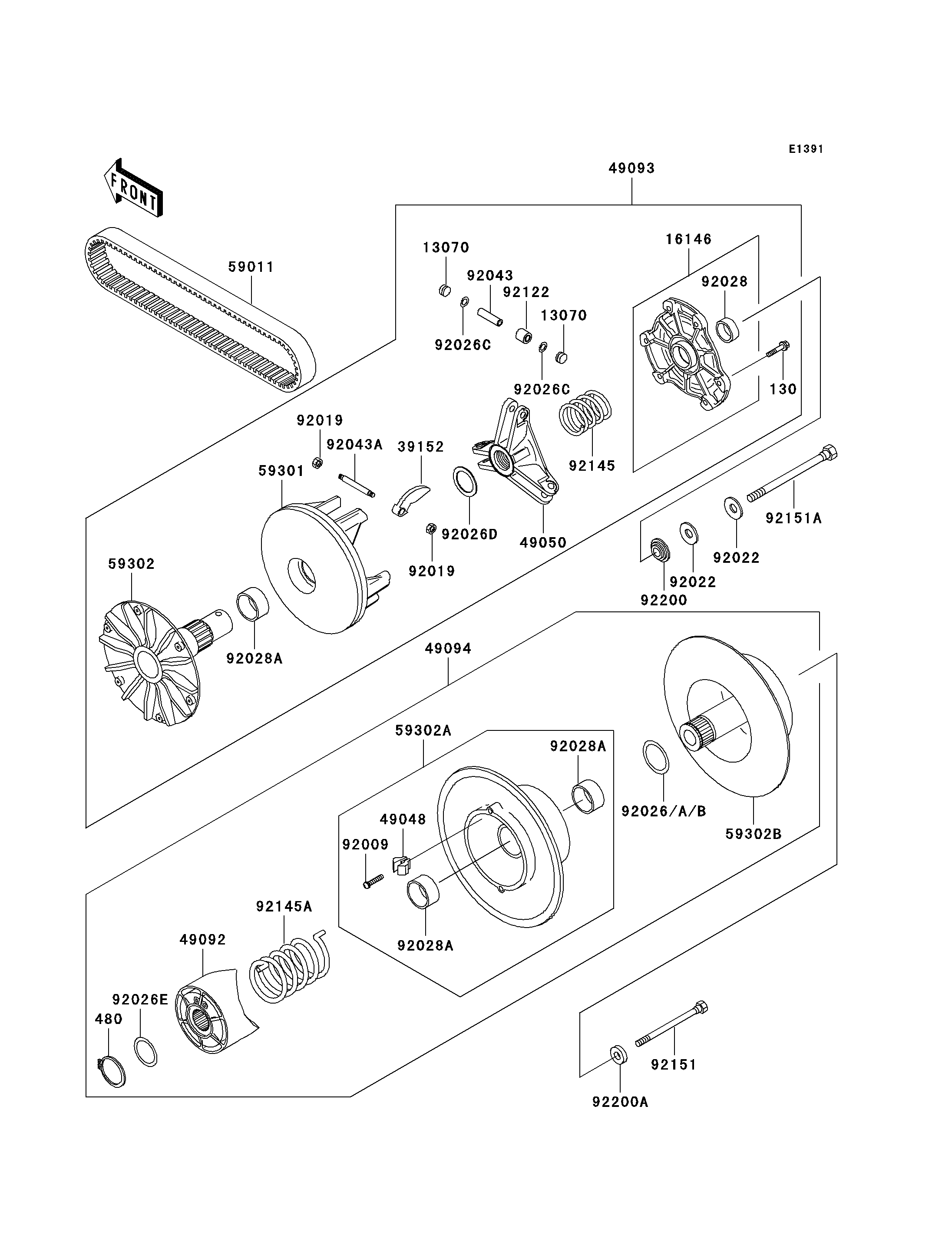

2000 Prairie 400 4X4 - Drive Converter

DOWNLOAD PDF
SELECT A NEW PART
130
480
13070
13070
16146
39152
49048
49050
49092
49093
49094
59011
59301
59302
59302A
59302B
92009
92019
92019
92022
92022
92026
92026A
92026B
92026C
92026C
92026D
92026E
92028
92028A
92028A
92028A
92043
92043A
92122
92145
92145A
92151
92151A
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130P0630 6
CIRCLIP 480 480J3400 1
GUIDE 13070 13070-1330 6
COVER-ASSY 16146 16146-1194 1
WEIGHT-RAMP 39152 39152-1064 3
SHOE 49048 49048-1060 3
SPIDER 49050 49050-1064 1
RAMP 49092 49092-1062 1
CONVERTER-ASSY-DRIVE 49093 49093-1060 1
CONVERTER-ASSY-DRIVEN 49094 49094-1060 1
BELT 59011 59011-1066 1
SHEAVE-MOVABLE 59301 59301-1060 1
SHEAVE-COMP,FIXED 59302 59302-1070 1
SHEAVE-COMP,MOVABLE 59302A 59302-1072 1
SHEAVE-COMP,FIXED 59302B 59302-1073 1
SCREW,SHOE 92009 92009-1849 3
NUT,LOCK,6MM 92019 92019-008 6
WASHER,SPECIAL CONICAL 92022 92022-1901 2
SPACER,39X50X0.50 92026 92026-1507 AR
SPACER,39X50X0.60 92026A 92026-1508 AR
SPACER,39X50X0.80 92026B 92026-1510 AR
SPACER 92026C 92026-1512 6
SPACER,32.3X44.3X1.60 92026D 92026-1520 1
SPACER,34X44X0.80 92026E 92026-1521 1
BUSHING 92028 92028-1861 1
BUSHING 92028A 92028-1864 3
PIN 92043 92043-1572 3
PIN 92043A 92043-1573 3
ROLLER 92122 92122-1204 3
SPRING,DRIVE CONVERTER 92145 92145-1128 1
SPRING,CONVERTER DRIVEN 92145A 92145-1129 1
BOLT,10X95 92151 92151-1315 1
BOLT,12X165 92151A 92151-1393 1
WASHER 92200 92200-1401 1
WASHER,10.2X37X5.0 92200A 92200-1402 1
