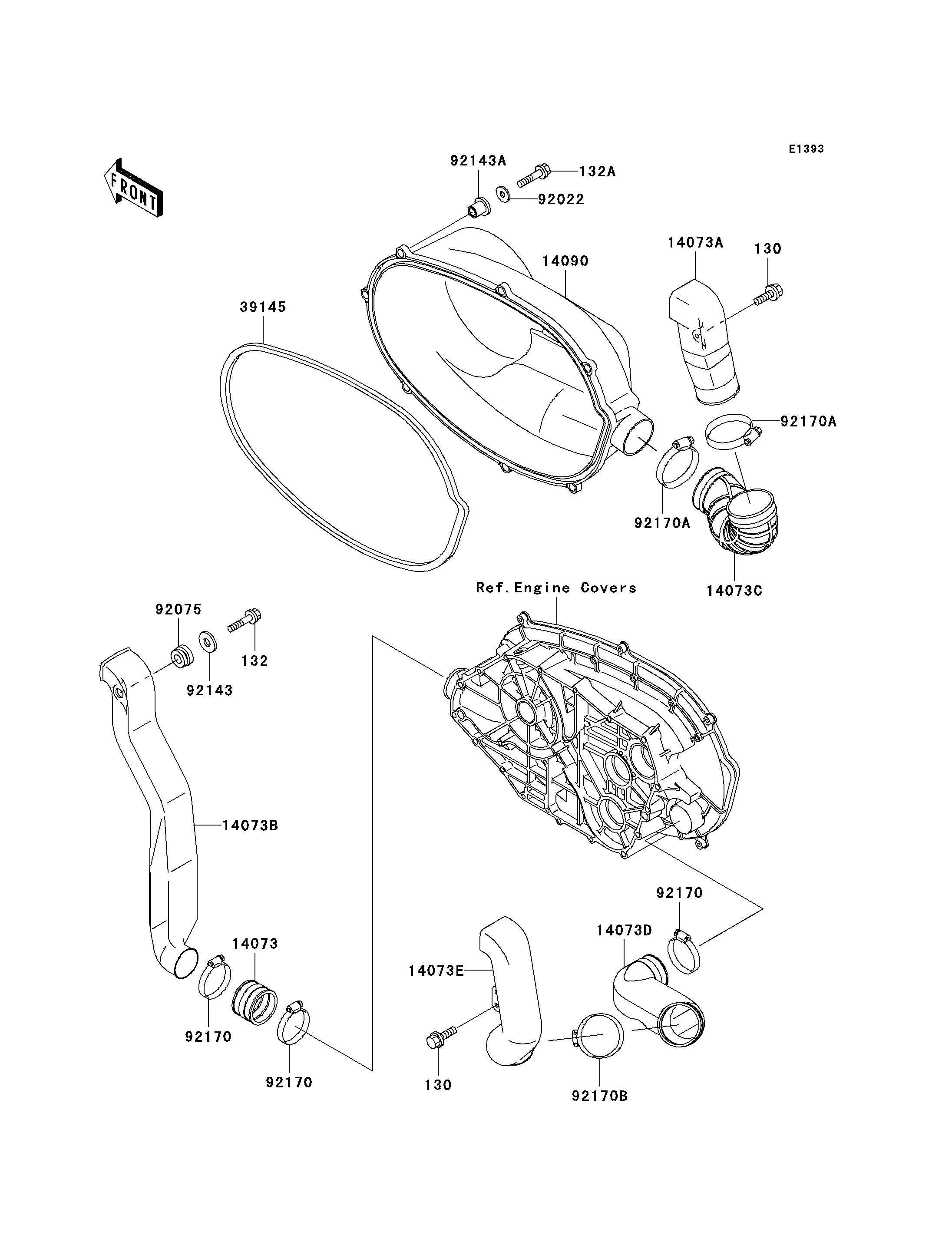

2000 Prairie 400 4X4 - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132A
14073
14073A
14073B
14073C
14073D
14073E
14090
39145
92022
92075
92143
92143A
92170
92170
92170
92170A
92170A
92170B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130J0612 3
BOLT-FLANGED-SMALL,6X25 132 132G0625 1
BOLT-FLANGED-SMALL,6X30 132A 132J0630 7
DUCT 14073 14073-1324 1
DUCT,SNORKEL,EX 14073A 14073-1678 1
DUCT,SNORKEL,IN 14073B 14073-1679 1
DUCT,SNORKEL,EX 14073C 14073-1680 1
DUCT,SNORKEL,EX 14073D 14073-1683 1
DUCT,SNORKEL,EX 14073E 14073-1684 1
COVER,BELT CONVERTER 14090 14090-1961 1
TRIM-SEAL,CONVERTER COVER 39145 39145-1114 1
WASHER,7X18X1.2 92022 92022-1545 7
DAMPER,RUBBER 92075 92075-1123 1
COLLAR 92143 92143-1353 1
COLLAR 92143A 92143-1888 7
CLAMP 92170 92170-1674 3
CLAMP 92170A 92170-1763 2
CLAMP 92170B 92170-1764 1
