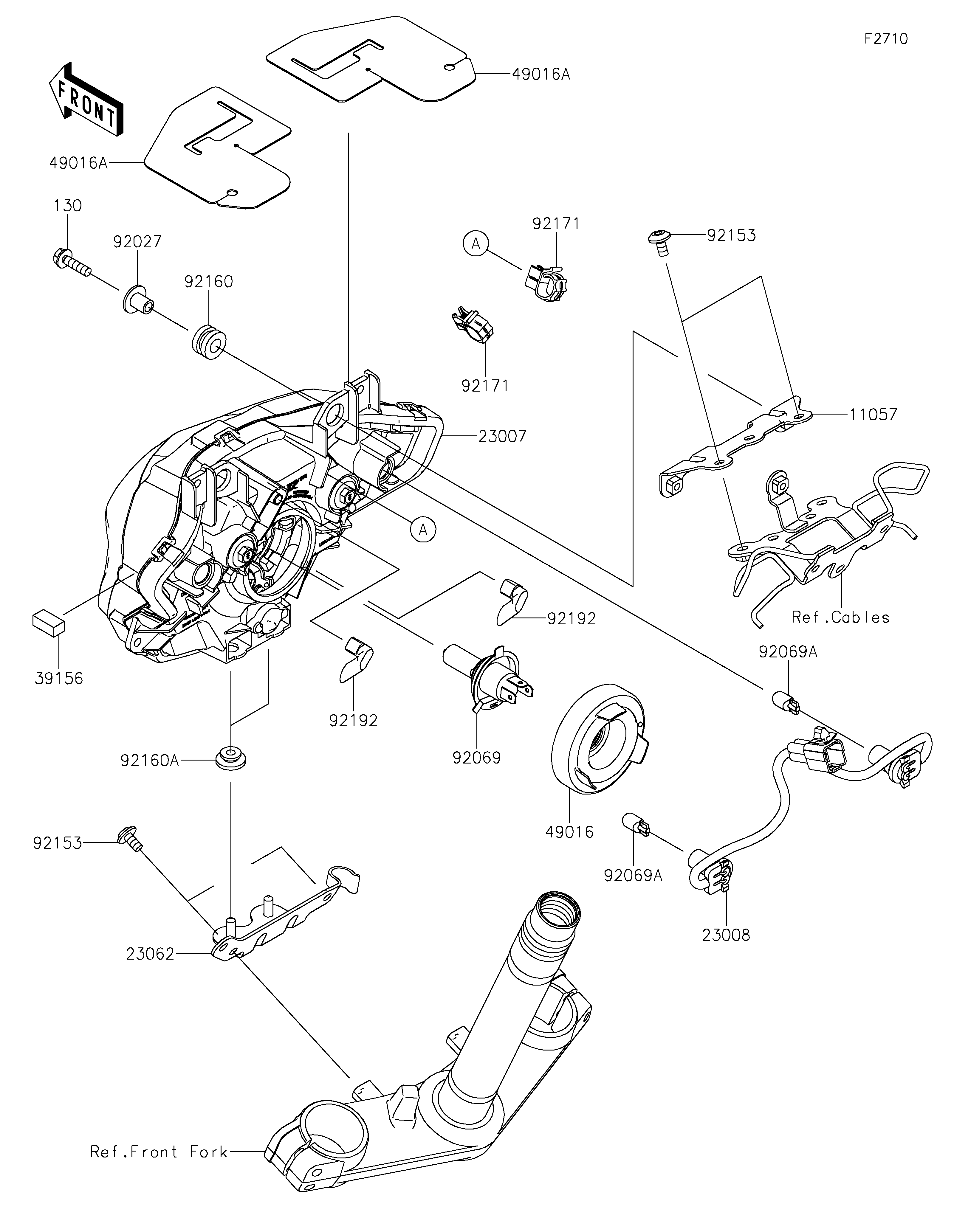

2017 Z650 ABS - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
130
23007
23008
23062
39156
49016
49016A
49016A
92027
92069
92069A
92069A
92153
92153
92160
92160A
92171
92171
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP,UPP 11057 11057-0142 1
BOLT-FLANGED,6X22 130 130BA0622 2
LENS-COMP,HEAD LAMP 23007 23007-0207 1
SOCKET-ASSY 23008 23008-0177 1
BRACKET-COMP,HEAD LAMP,LWR 23062 23062-0876 1
PAD,20X8X10 39156 39156-1968 1
COVER-SEAL 49016 49016-0642 1
COVER-SEAL 49016A 49016-0646 2
COLLAR,6.5X10X14.1 92027 92027-1183 2
BULB,12V 60/55W,H4 92069 92069-0050 1
BULB,12V 5W 92069A 92069-1016 2
BOLT,SOCKET,6X12 92153 92153-1948 4
DAMPER,10X20X12 92160 92160-1167 2
DAMPER 92160A 92160-1613 2
CLAMP,EDGE CLIP 92171 92171-1722 2
TUBE,BREATHER 92192 92192-1528 2
