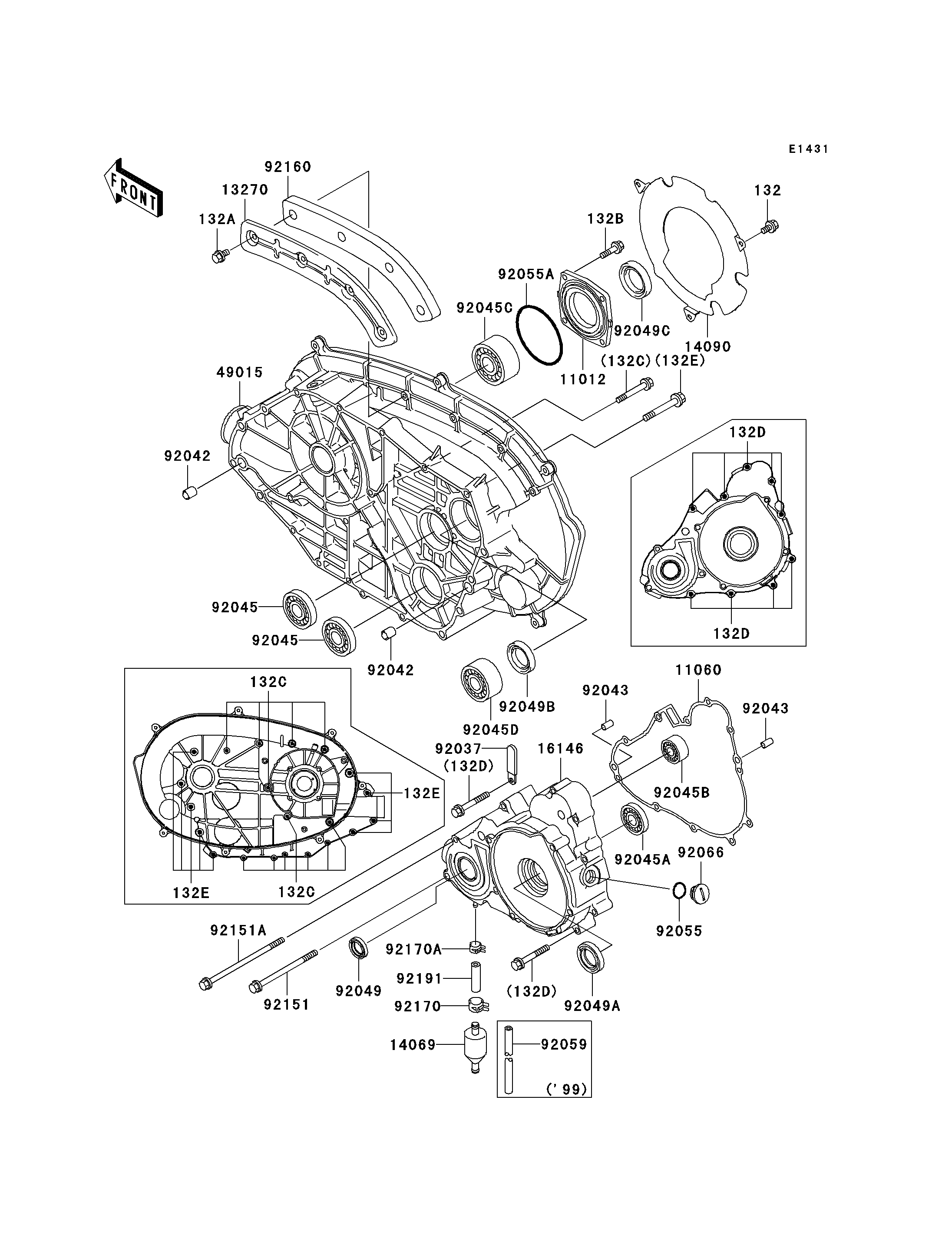

2000 Prairie 400 4X4 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132B
132C
132C
132D
132D
132E
132E
11012
11060
13270
14069
14090
16146
49015
92037
92042
92042
92043
92043
92045
92045
92045A
92045B
92045C
92045D
92049
92049A
92049B
92049C
92055
92055A
92066
92151
92151A
92160
92170
92170A
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132G0612 3
BOLT-FLANGED-SMALL,6X12 132A 132Y0612 4
BOLT-FLANGED-SMALL,6X20 132B 132Y0620 4
BOLT-FLANGED-SMALL,6X35 132C 132Y0635 12
BOLT-FLANGED-SMALL,6X40 132D 132Y0640 9
BOLT-FLANGED-SMALL,8X40 132E 132Y0840 9
CAP 11012 11012-1982 1
GASKET,GENERATOR COVER 11060 11060-1729 1
PLATE 13270 13270-1737 1
BREATHER 14069 14069-1051 1
COVER 14090 14090-1960 1
COVER-ASSY,GENERATOR 16146 16146-1206 1
COVER-CRANKCASE 49015 49015-1056 1
CLAMP,L=45 92037 92037-1539 1
PIN,DOWEL,12X14 92042 92042-031 2
PIN,6.2X8X14 92043 92043-1263 2
BEARING-BALL,TMB304CCM 92045 92045-1142 2
BEARING-BALL 92045A 92045-1178 1
BEARING-BALL,5201 92045B 92045-1327 1
BEARING-BALL,5207C2 92045C 92045-1328 1
BEARING-BALL,5206 92045D 92045-1329 1
SEAL-OIL,SC12 28.555 92049 92049-1259 1
SEAL-OIL 92049A 92049-1386 1
SEAL-OIL,TC30458 92049B 92049-1451 1
SEAL-OIL,TC 35X50X8 92049C 92049-1452 1
RING-O,20X2 92055 92055-1146 1
RING-O,79.5MM 92055A 92055-1230 1
PLUG,COVER 92066 92066-1163 1
BOLT,6X85 92151 92151-1140 1
BOLT,6X110 92151A 92151-1141 1
DAMPER 92160 92160-1793 1
CLAMP 92170 92170-1492 1
CLAMP 92170A 92170-1493 1
TUBE 92191 92191-1427 1
