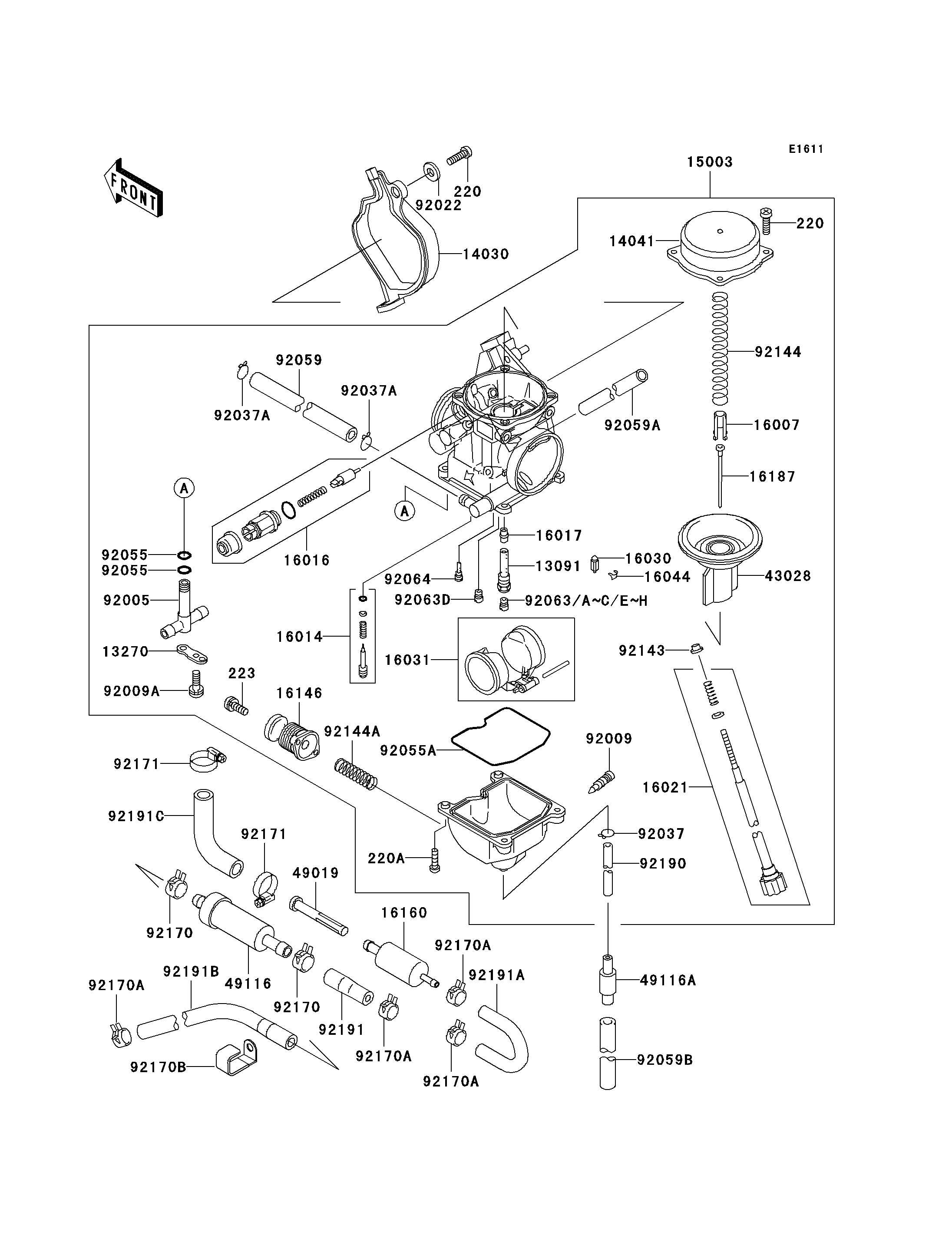

2000 Prairie 400 4X4 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
13091
13091
13270
13270
14030
14030
14041
14041
15003
15003
16007
16007
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16044
16044
16146
16146
16160
16160
16187
16187
43028
43028
49019
49019
49116
49116
49116A
49116A
92005
92005
92009
92009
92009A
92009A
92022
92022
92037
92037
92037A
92037A
92037A
92037A
92055
92055
92055
92055
92055A
92055A
92059
92059
92059A
92059A
92059B
92059B
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
220
220
220
220
220A
220A
223
223
92063E
92063E
92063F
92063F
92063G
92063G
92063H
92063H
92064
92064
92143
92143
92144
92144
92144A
92144A
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170B
92170B
92171
92171
92171
92171
92190
92190
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 1
PLATE,FITTING STAY 13270 13270-1063 1
COVER-CARBURETOR 14030 14030-1054 1
COVER-COMP,MIXING,INSIDE 14041 14041-1061 1
CARBURETOR-ASSY 15003 15003-1446 1
SEAT-SPRING,VALVE 16007 16007-1134 1
SCREW-PILOT AIR 16014 16014-1081 1
PLUNGER,STARTER 16016 16016-1101 1
JET-NEEDLE,#6 16017 16017-1400 1
SCREW-THROTTLE STOP 16021 16021-1213 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1077 1
CLAMP,FLOAT VALVE 16044 16044-007 1
COVER-ASSY,PUMP 16146 16146-1129 1
BODY,FILTER 16160 16160-1151 1
NEEDLE-JET,N6OI 16187 16187-1092 1
DIAPHRAGM,VALVE 43028 43028-1081 1
FILTER-WATER 49019 49019-1068 1
VALVE-ASSY 49116 49116-1081 1
VALVE-ASSY 49116A 49116-1126 1
FITTING 92005 92005-1235 1
SCREW,DRAIN,6X0.75 92009 92009-1551 1
SCREW 92009A 92009-1713 1
WASHER,5.2X13X1 92022 92022-1380 1
CLAMP,TUBE 92037 92037-1201 1
CLAMP,TUBE 92037A 92037-1531 2
RING-O,4.5X1.5 92055 92055-1427 2
RING-O,FLOAT CHAMBER 92055A 92055-1518 1
TUBE,6.5X11.5X200 92059 92059-1538 1
TUBE,6.5X9.5X260 92059A 92059-1598 1
TUBE,7X10X100 92059B 92059-1736 1
JET-MAIN,#140 92063 92063-1013 AR (OPTION)
JET-MAIN,#138 92063A 92063-1015 AR (OPTION)
JET-MAIN,#142 92063B 92063-1016 AR (OPTION)
JET-MAIN,#145 92063C 92063-1017 AR (OPTION)
JET-MAIN,#85 92063D 92063-1023 1
SCREW-PAN-CROS,4X8 220 220B0408 5
SCREW-PAN-CROS,4X14 220A 220D0414 4
SCREW-PAN-WS-CROS,4X12 223 223C0412 2
JET-MAIN,#148 92063E 92063-1324 AR (OPTION)
JET-MAIN,#150 92063F 92063-1330 1
JET-MAIN,#152 92063G 92063-1331 AR (OPTION)
JET-MAIN,#155 92063H 92063-1332 AR (OPTION)
JET-PILOT,#35 92064 92064-1101 1
COLLAR 92143 92143-1589 1
SPRING,VACUUM VALVE 92144 92144-1066 1
SPRING,PUMP 92144A 92144-1672 1
CLAMP 92170 92170-1492 2
CLAMP 92170A 92170-1493 4
CLAMP 92170B 92170-1863 1
CLAMP 92171 92171-1158 2
TUBE,4.5X8X330 92190 92190-1557 1
TUBE 92191 92191-1427 1
TUBE 92191A 92191-1428 1
TUBE 92191B 92191-1429 1
TUBE 92191C 92191-1430 1
