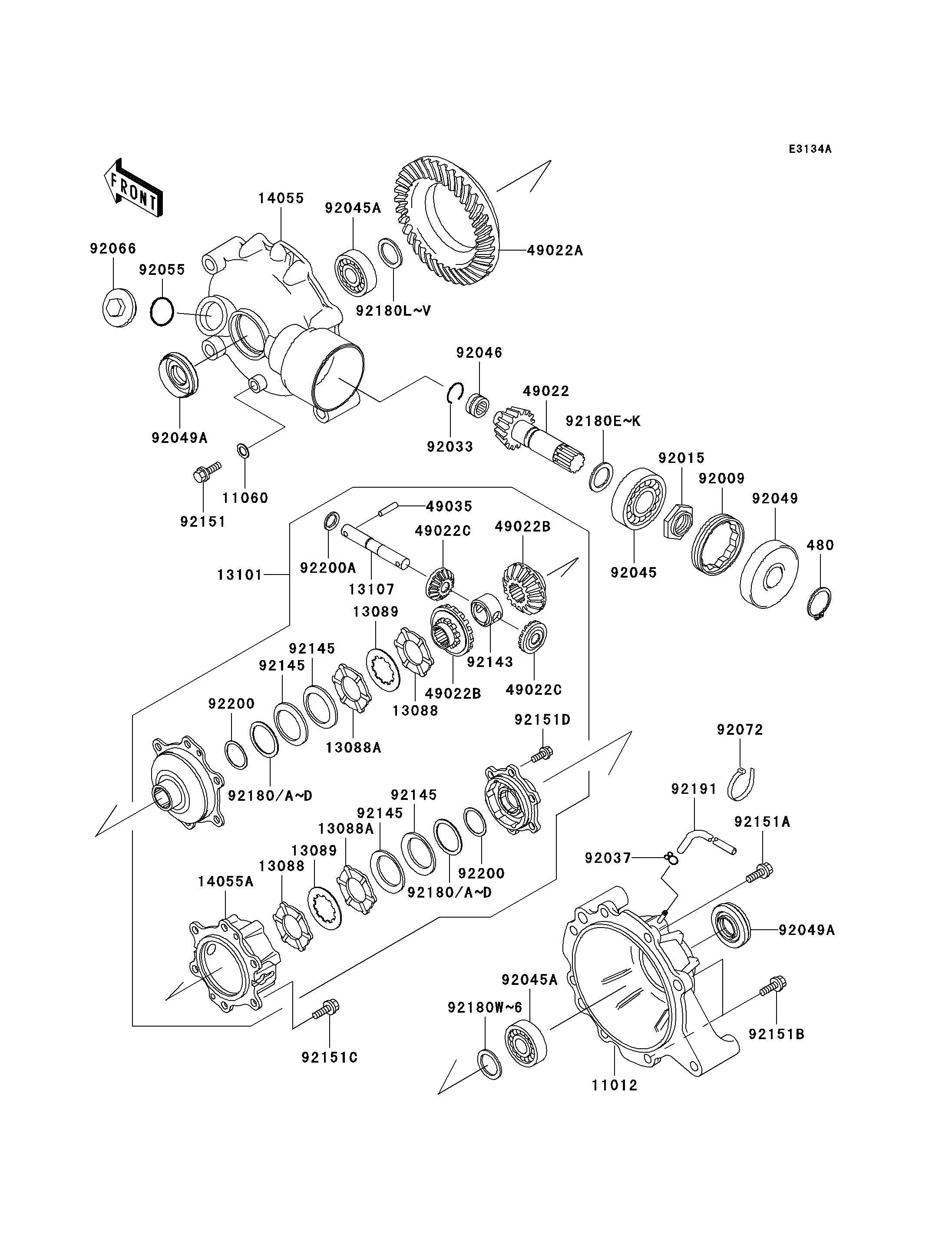

2000 Prairie 400 4X4 - Drive Shaft(Differential)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11060
11060
13088
13088
13088
13088
13088A
13088A
13088A
13088A
13089
13089
13089
13089
13101
13101
13107
13107
14055
14055
14055A
14055A
49022
49022
49022A
49022A
49022B
49022B
49022B
49022B
49022C
49022C
49022C
49022C
49035
49035
92009
92009
92015
92015
92033
92033
92037
92037
92045
92045
92045A
92045A
92045A
92045A
92046
92046
92049
92049
92049A
92049A
92049A
92049A
92055
92055
92066
92066
92072
92072
92143
92143
92145
92145
92145
92145
92145
92145
92145
92145
92151
92151
92151A
92151A
92151B
92151B
92151C
92151C
92151D
92151D
92180
92180
92180
92180
92180A
92180A
92180A
92180A
92180B
92180B
92180B
92180B
92180C
92180C
92180C
92180C
92180D
92180D
92180D
92180D
92180E
92180E
92180F
92180F
480
480
921800
921800
921801
921801
921802
921802
921803
921803
921804
921804
921805
921805
921806
921806
92180G
92180G
92180H
92180H
92180I
92180I
92180J
92180J
92180K
92180K
92180L
92180L
92180M
92180M
92180N
92180N
92180O
92180O
92180P
92180P
92180Q
92180Q
92180R
92180R
92180S
92180S
92180T
92180T
92180U
92180U
92180V
92180V
92180W
92180W
92180X
92180X
92180Y
92180Y
92180Z
92180Z
92191
92191
92200
92200
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,DRIVE SHAFT 11012 11012-1955 1
GASKET 11060 11060-1735 1
PLATE-FRICTION 13088 13088-1127 2
PLATE-FRICTION 13088A 13088-1128 2
PLATE-CLUTCH 13089 13089-1118 2
GEAR-ASSY,DIFFERENTIAL 13101 13101-1239 1
SHAFT 13107 13107-1369 1
CASE-GEAR 14055 14055-1129 1
CASE-GEAR 14055A 14055-1137 1
GEAR-BEVEL 49022 49022-1147 1
GEAR-BEVEL 49022A 49022-1148 1
GEAR-BEVEL 49022B 49022-1153 2
GEAR-BEVEL 49022C 49022-1154 2
PIN-SPRING 49035 49035-1065 2
SCREW,LOCK 92009 92009-1762 1
NUT,LOCK 92015 92015-1992 1
RING-SNAP 92033 92033-1289 1
CLAMP 92037 92037-1835 1
BEARING-BALL,QJ305T2XC3 92045 92045-1223 1
BEARING-BALL 92045A 92045-1331 2
BEARING-NEEDLE 92046 92046-1248 1
SEAL-OIL 92049 92049-1454 1
SEAL-OIL 92049A 92049-1455 2
RING-O,OIL FILLER 92055 92055-1553 1
PLUG,OIL FILLER 92066 92066-1441 1
BAND,L=123 92072 92072-030 1
COLLAR 92143 92143-1927 1
SPRING 92145 92145-1053 4
BOLT,SEALING 92151 92151-1051 1
BOLT,FLANGED 92151A 92151-1052 6
BOLT,FLANGED 92151B 92151-1053 2
BOLT 92151C 92151-1054 6
BOLT 92151D 92151-1178 6
SHIM,T=1.0 92180 92180-1214 AR
SHIM,T=1.2 92180A 92180-1215 AR
SHIM,T=1.4 92180B 92180-1216 AR
SHIM,T=1.6 92180C 92180-1217 AR
SHIM,T=1.8 92180D 92180-1218 AR
SHIM,26X34X1.82 92180E 92180-1219 AR
SHIM,26X34X1.88 92180F 92180-1220 AR
CIRCLIP-TYPE-C,22MM 480 480J2200 1
SHIM,T=0.95 921800 92180-1258 AR
SHIM,T=1.00 921801 92180-1259 AR
SHIM,T=1.05 921802 92180-1260 AR
SHIM,T=1.10 921803 92180-1261 AR
SHIM,T=1.15 921804 92180-1262 AR
SHIM,T=1.20 921805 92180-1263 AR
SHIM,T=1.25 921806 92180-1264 AR
SHIM,26X34X1.94 92180G 92180-1221 AR
SHIM,26X34X2.00 92180H 92180-1222 AR
SHIM,26X34X2.06 92180I 92180-1223 AR
SHIM,26X34X2.12 92180J 92180-1224 AR
SHIM,26X34X2.18 92180K 92180-1225 AR
SHIM,T=1.75 92180L 92180-1231 AR
SHIM,T=1.80 92180M 92180-1232 AR
SHIM,T=1.85 92180N 92180-1233 AR
SHIM,T=1.90 92180O 92180-1234 AR
SHIM,T=1.95 92180P 92180-1235 AR
SHIM,T=2.00 92180Q 92180-1236 AR
SHIM,T=2.05 92180R 92180-1237 AR
SHIM,T=2.10 92180S 92180-1238 AR
SHIM,T=2.15 92180T 92180-1239 AR
SHIM,T=2.20 92180U 92180-1240 AR
SHIM,T=2.25 92180V 92180-1241 AR
SHIM,T=0.75 92180W 92180-1254 AR
SHIM,T=0.80 92180X 92180-1255 AR
SHIM,T=0.85 92180Y 92180-1256 AR
SHIM,T=0.90 92180Z 92180-1257 AR
TUBE,4X7X700 92191 92191-1049 1
WASHER 92200 92200-1344 2
WASHER 92200A 92200-1345 2
