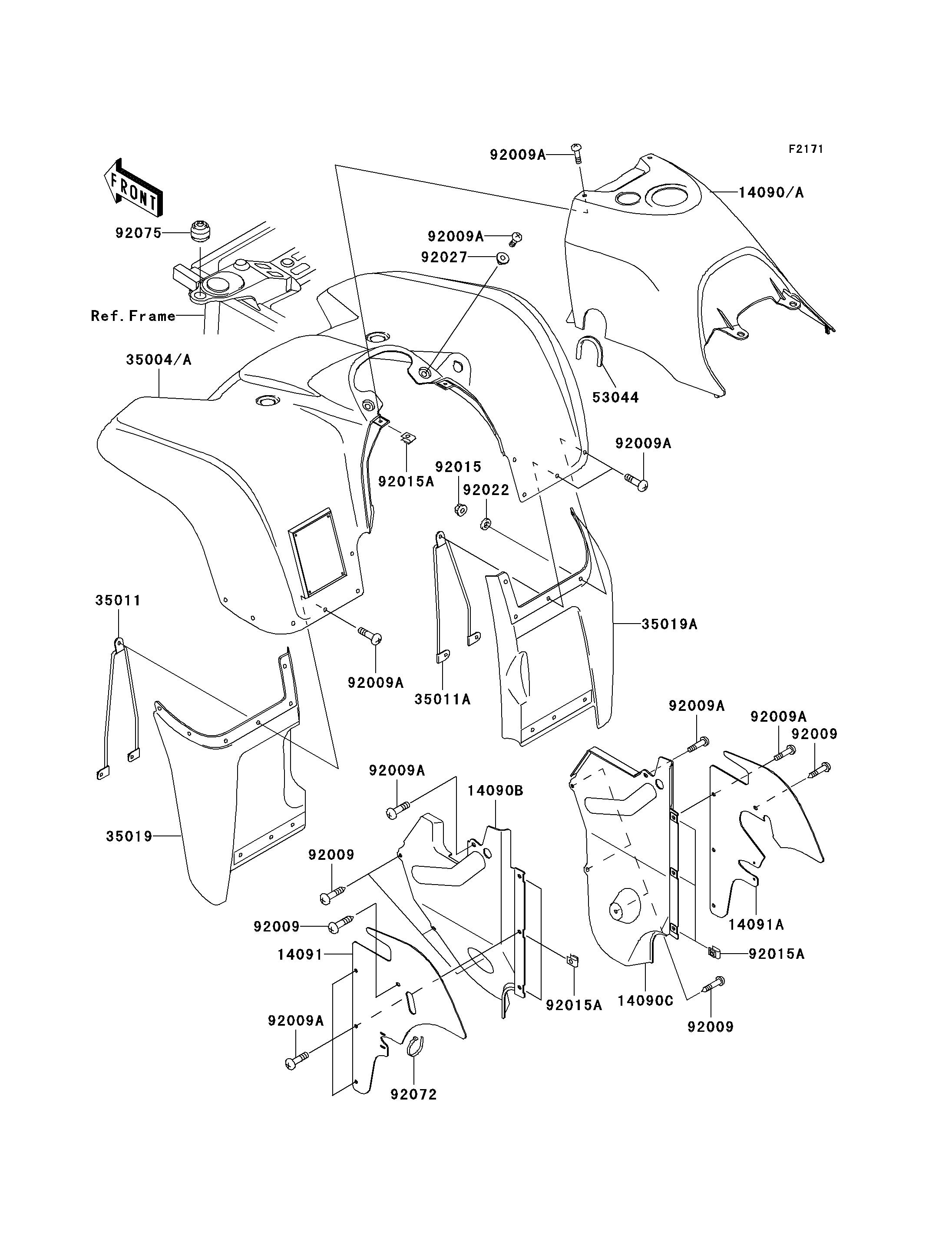

2000 Prairie 400 4X4 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
14090
14090A
14090B
14090C
14091
14091A
35004
35004A
35011
35011A
35019
35019A
53044
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015A
92015A
92015A
92022
92027
92072
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FUEL TANK,H.GREEN 14090 14090-1666-6A 1
COVER,FUEL TANK,F.RED 14090A 14090-1666-6L 1
COVER,INNER FLAP,LH 14090B 14090-1963 1
COVER,INNER FLAP,RH 14090C 14090-1964 1
COVER,INNER FLAP 14091 14091-1074 1
COVER,INNER FLAP 14091A 14091-1075 1
FENDER-FRONT,H.GREEN 35004 35004-1378-6A 1
FENDER-FRONT,F.RED 35004A 35004-1378-6L 1
STAY,FRONT FLAP,LH 35011 35011-1761 1
STAY,FRONT FLAP,RH 35011A 35011-1784 1
FLAP,FR,LH,F.BLACK 35019 35019-1338-6Z 1
FLAP,FR,RH,F.BLACK 35019A 35019-1339-6Z 1
TRIM,L=150 53044 53044-1303 1
SCREW,TAPPING,6X16 92009 92009-1166 8
SCREW,6X16 92009A 92009-1621 24
NUT,LOCK,FLANGED,6MM 92015 92015-1675 10
NUT,CLAMP,6MM 92015A 92015-1678 8
WASHER,6.5X16X1.0 92022 92022-1093 10
COLLAR,L=4.7 92027 92027-1964 2
BAND,L=149 92072 92072-031 1
DAMPER 92075 92075-1744 2
