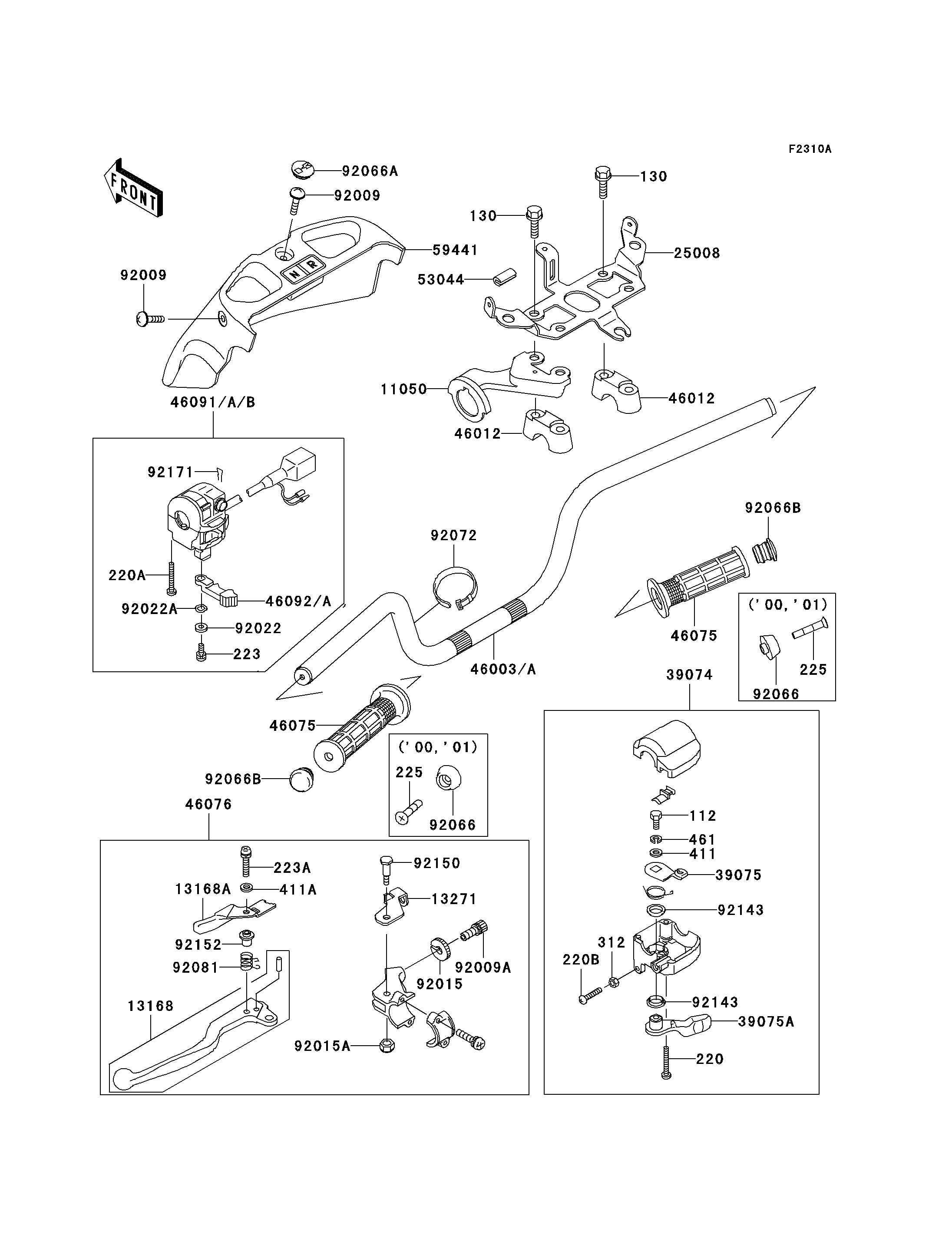

2000 Prairie 400 4X4 - Handlebar(C2-C4)
112
112
130
130
130
130
11050
11050
13168
13168
13168A
13168A
13271
13271
25008
25008
39074
39074
39075
39075
39075A
39075A
46003
46003
46012
46012
46012
46012
46075
46075
46075
46075
46076
46076
46091
46091
46092
46092
53044
53044
59441
59441
92009
92009
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92066
92066
92066
92066
92066A
92066A
92072
92072
92081
92081
92143
92143
92143
92143
92150
92150
92152
92152
92171
92171
220
220
220A
220A
220B
220B
223
223
223A
223A
225
225
225
225
312
312
411
411
411A
411A
461
461
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET,6X14 | 112 | 112D0614 | 1 | ||
BOLT-FLANGED,8X60 | 130 | 130P0860 | 4 | ||
BRACKET,HANDLE COVER,LH | 11050 | 11050-1727 | 1 | ||
LEVER,LH | 13168 | 13168-1672 | 1 | ||
LEVER,LOCK | 13168A | 13168-1673 | 1 | ||
PLATE,LOCK | 13271 | 13271-1259 | 1 | ||
BRACKET-METER | 25008 | 25008-1222 | 1 | ||
LEVER-ASSY-THROTTLE | 39074 | 39074-1055 | 1 | ||
LEVER-THROTTLE,ARM | 39075 | 39075-1054 | 1 | ||
LEVER-THROTTLE | 39075A | 39075-1059 | 1 | ||
HANDLE | 46003 | 46003-1452 | 1 | ||
HOLDER-HANDLE | 46012 | 46012-1168 | 2 | ||
GRIP | 46075 | 46075-1056 | 2 | ||
LEVER-ASSY-GRIP,LH | 46076 | 46076-1224 | 1 | ||
HOUSING-ASSY-CONTROL,LH | 46091 | 46091-1726 | 1 | ||
LEVER-GRIP,CHOKE | 46092 | 46092-1205 | 1 | ||
TRIM,L=20 | 53044 | 53044-1292 | 1 | ||
COVER-HANDLE,F.BLACK | 59441 | 59441-1139-6Z | 1 | ||
SCREW,TAPPING,5X10 | 92009 | 92009-1332 | 3 | ||
SCREW,CABLE ADJUST,8MM | 92009A | 92009-1435 | 1 | ||
NUT,CABLE ADJUST LOCK,8MM | 92015 | 92015-1596 | 1 | ||
NUT | 92015A | 92015-1829 | 1 | ||
WASHER,5MM | 92022 | 92022-1837 | 1 | ||
WASHER,WAVE,5MM | 92022A | 92022-1838 | 1 | ||
PLUG,HANDLE | 92066 | 92066-1191 | 2 | ||
PLUG,F.BLACK | 92066A | 92066-1498-6Z | 1 | ||
BAND,L=149 | 92072 | 92072-031 | 1 | ||
SPRING,LOCK RETURN | 92081 | 92081-1358 | 1 | ||
COLLAR | 92143 | 92143-1138 | 2 | ||
BOLT | 92150 | 92150-1420 | 1 | ||
COLLAR | 92152 | 92152-1176 | 1 | ||
CLAMP,CLIP | 92171 | 92171-1095 | 1 | ||
SCREW-PAN-CROS,5X30 | 220 | 220C0530 | 2 | ||
SCREW-PAN-CROS,5X35 | 220A | 220C0535 | 2 | ||
SCREW-PAN-CROS,6X30,BLACK | 220B | 220C0630 | 1 | ||
SCREW-PAN-WS-CROS,5X12 | 223 | 223C0512 | 1 | ||
SCREW-PAN-WS-CROS | 223A | 223C0520 | 1 | ||
SCREW-PAN-WSP-CROS,6X20 | 225 | 225C0620 | 2 | ||
NUT-HEX,6MM,BLACK | 312 | 312C0600 | 1 | ||
WASHER-PLAIN,6MM | 411 | 411E0600 | 1 | ||
WASHER-PLAIN,5MM,BLACK | 411A | 411F0500 | 1 | ||
WASHER-SPRING | 461 | 461L0600 | 1 |
