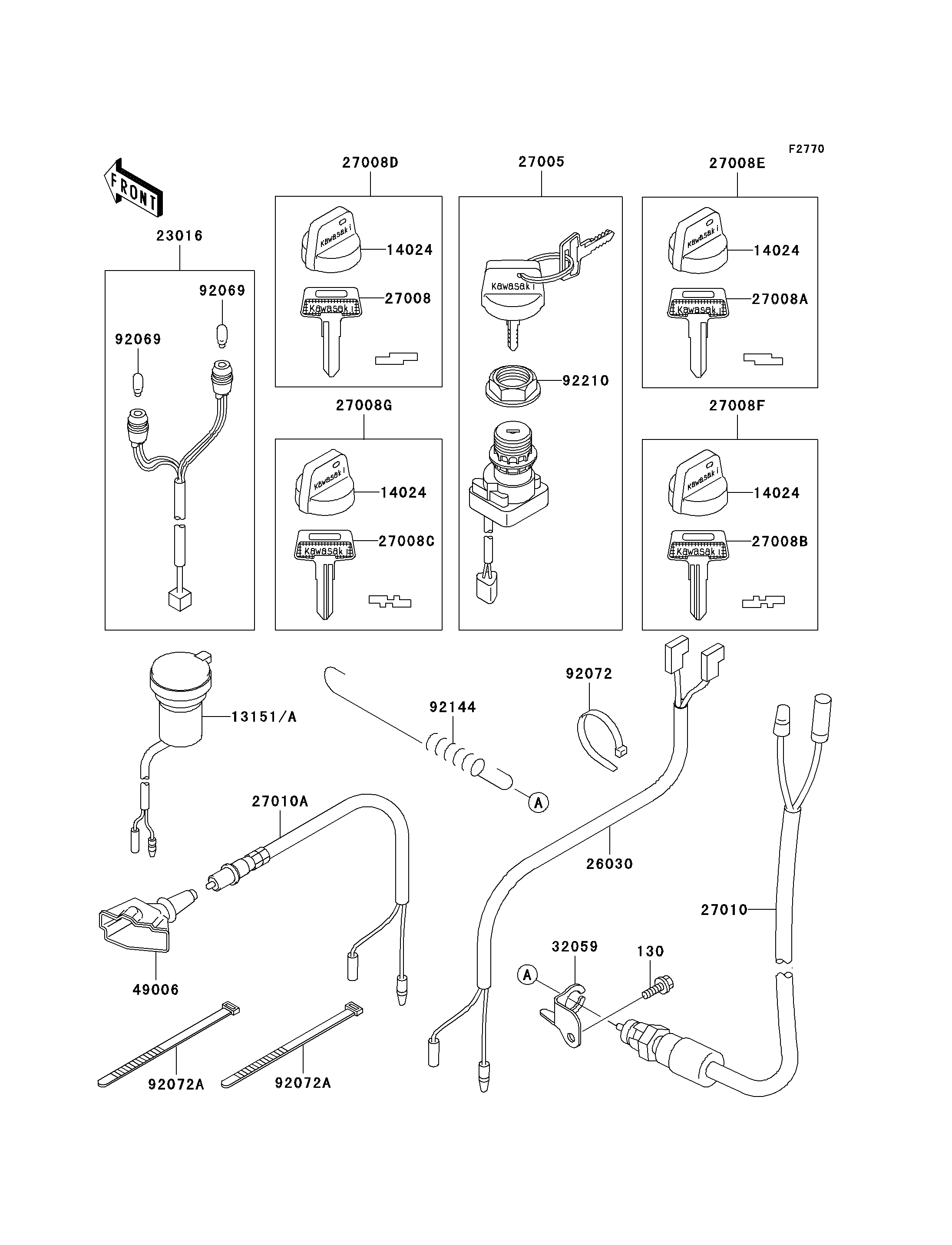

2000 Prairie 400 4X4 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
130
13151
14024
14024
14024
14024
23016
26030
27005
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
27010
27010A
32059
49006
92069
92069
92072
92072A
92072A
92144
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130J0610 1
SWITCH-COMP,D.C.TERMINAL 13151 13151-1087 1
COVER,KEY 14024 14024-1551 4 (OPTION)
LAMP-ASSY,NEUTRAL&REVERSE 23016 23016-1083 1
HARNESS 26030 26030-1058 1
SWITCH-ASSY-IGNITION 27005 27005-1229 1
KEY-LOCK,BLANK 27008 27008-1041 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1042 1 (OPTION)
KEY-LOCK,BLANK 27008B 27008-1043 1 (OPTION)
KEY-LOCK,BLANK 27008C 27008-1044 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008D 27008-1132 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008E 27008-1133 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008F 27008-1134 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008G 27008-1135 1 (OPTION)
SWITCH,BRAKE LAMP 27010 27010-025 1
SWITCH,BRAKE 27010A 27010-1294 1
BRACKET-SWITCH,REAR BRAKE 32059 32059-1136 1
BOOT 49006 49006-1261 1
BULB,12V 3W,T7 92069 92069-1020 2
BAND,L=149 92072 92072-031 1
BAND,L=186 92072A 92072-056 2
SPRING,BRAKE LAMP SWITCH 92144 92144-1343 1
NUT,IGNITION SWITCH 92210 92210-1109 1
