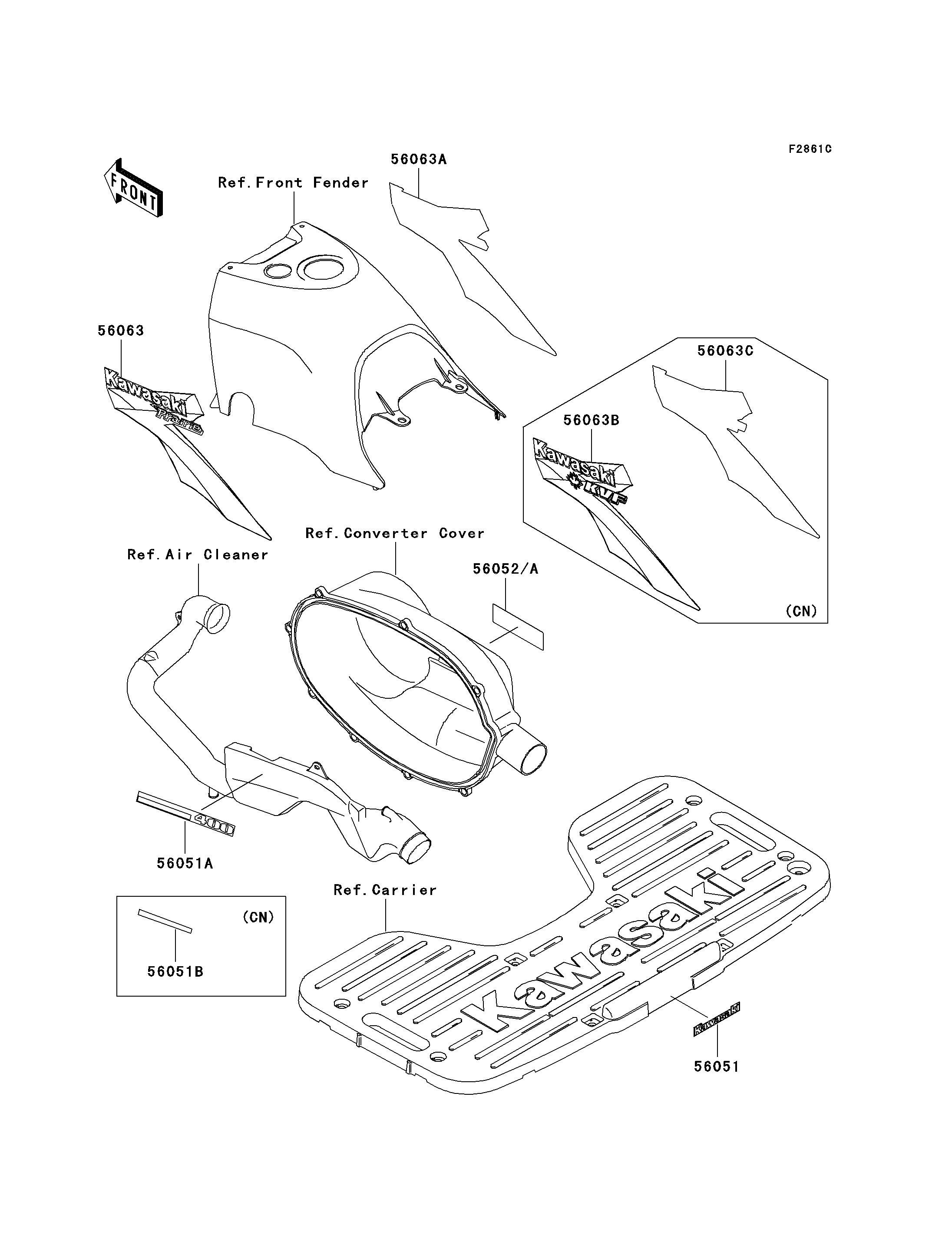

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,REAR CARRIER,KAWASAKI 56051 56051-1843 1 US
MARK,AIR CLEANER COVER 56051A 56051-1858 1 US
MARK,AIR CLEANER COVER 56051B 56051-1859 1 CN
MARK,BELT CONVERTER COVER 56052 56052-1051 1 US
MARK,BELT CONVERTER COVER 56052A 56052-1052 1 CN
PATTERN,FUEL TANK COVER,LH 56063 56063-1056 1 US
PATTERN,FUEL TANK COVER,RH 56063A 56063-1057 1 US
PATTERN,FUEL TANK COVER,LH 56063B 56063-1060 1 CN
PATTERN,FUEL TANK COVER,RH 56063C 56063-1061 1 CN
