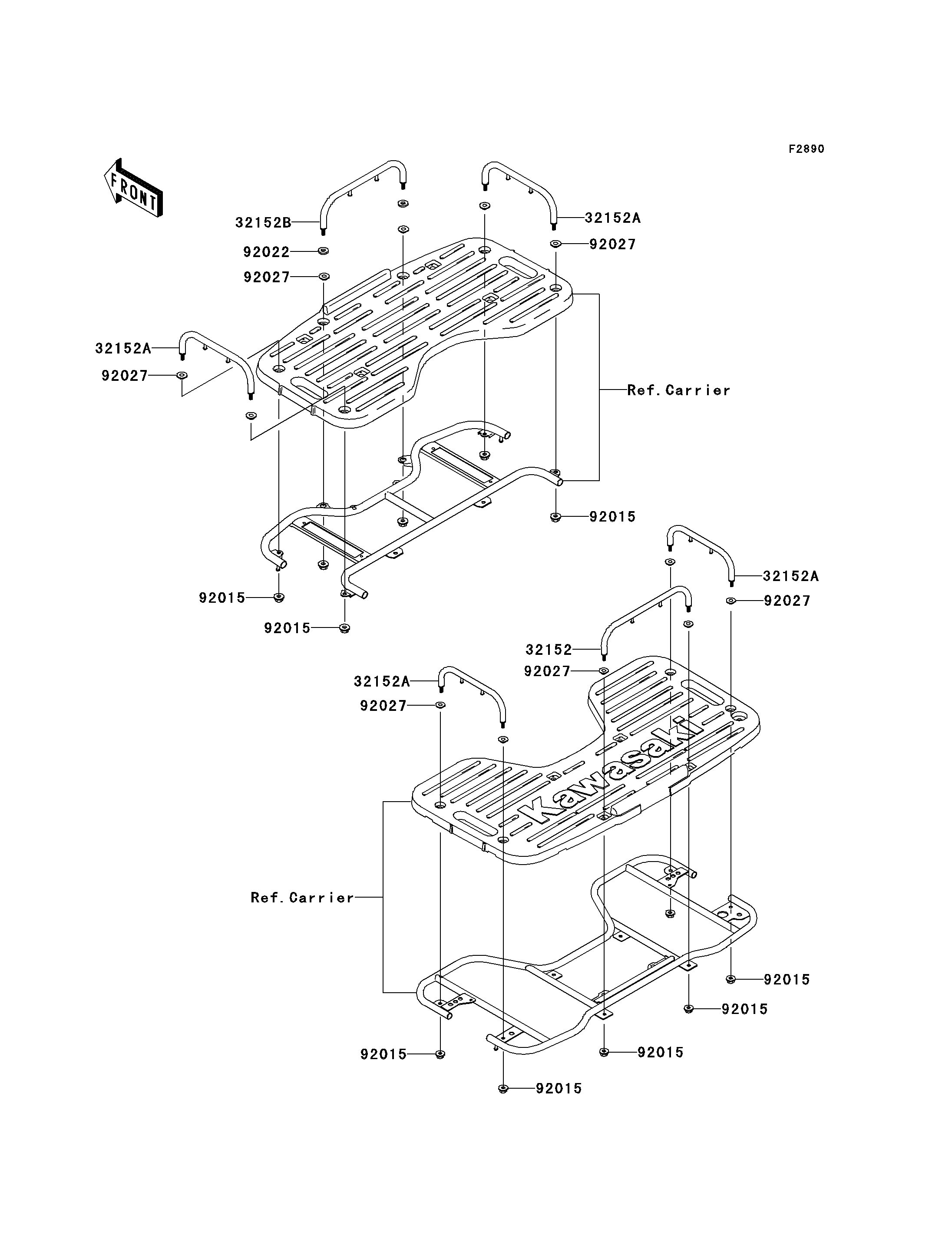

2000 Prairie 400 4X4 - Optional Parts(Carrier Guard)
32152
32152A
32152A
32152A
32152A
32152B
92015
92015
92015
92015
92015
92015
92015
92015
92022
92027
92027
92027
92027
92027
92027
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIPE,STAY,RR,CNT | 32152 | 32152-1939 | 1 | ||
| PIPE,STAY,RR/FR,SIDE | 32152A | 32152-1940 | 4 | ||
| PIPE,STAY,FR,CNT | 32152B | 32152-1941 | 1 | ||
| NUT,FLANGED,8MM,BLACK | 92015 | 92015-1183 | 12 | ||
| WASHER,9X24X3.2 | 92022 | 92022-1295 | 2 | ||
| COLLAR | 92027 | 92027-1908 | 12 |
