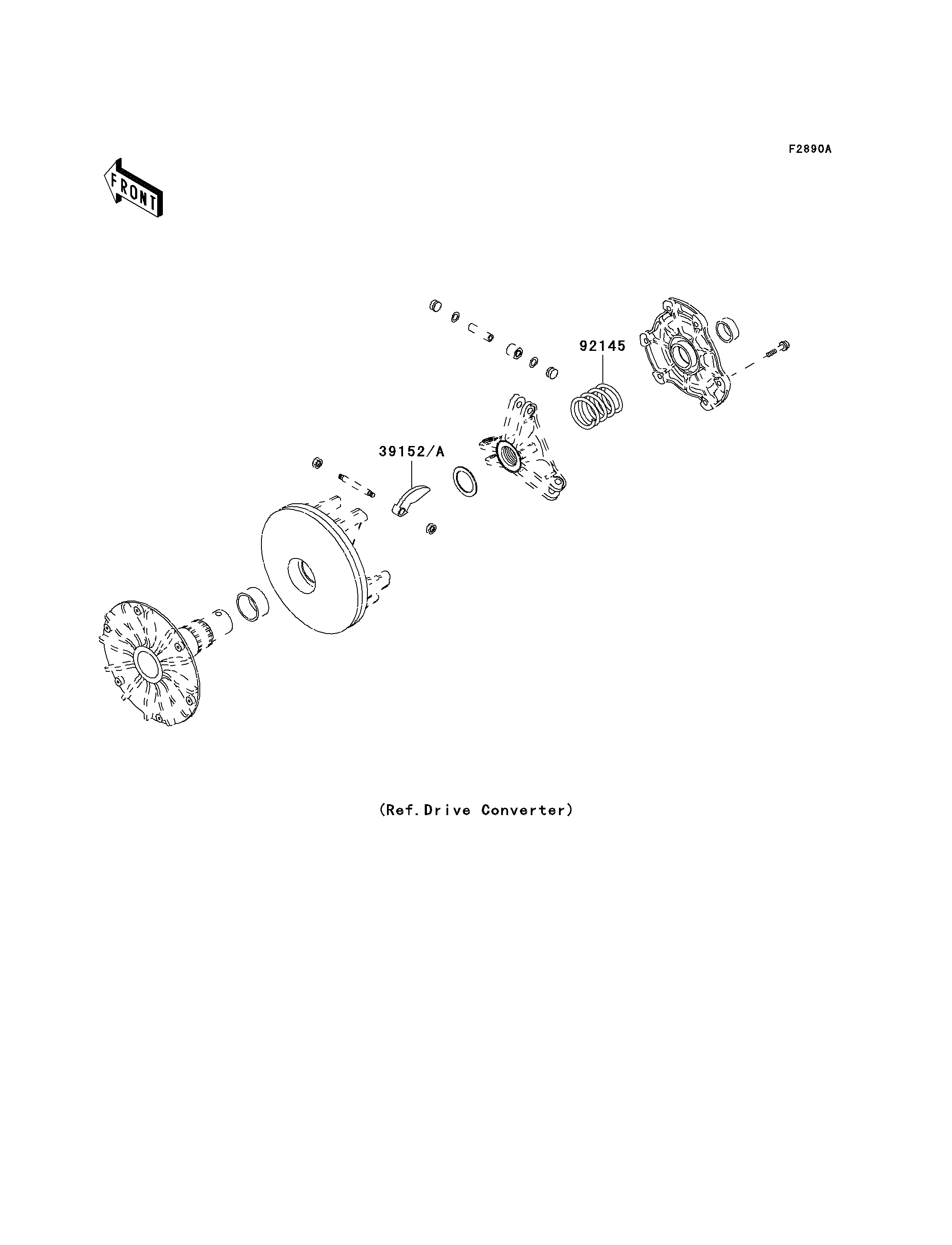

2000 Prairie 400 4X4 - Optional Parts(Drive Converter)

39152
39152A
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT-RAMP,C1 39152 39152-1066 3 (OPTION)
WEIGHT-RAMP,C2 39152A 39152-1067 3 (OPTION)
SPRING,BLACK 92145 92145-1228 2 (OPTION)
