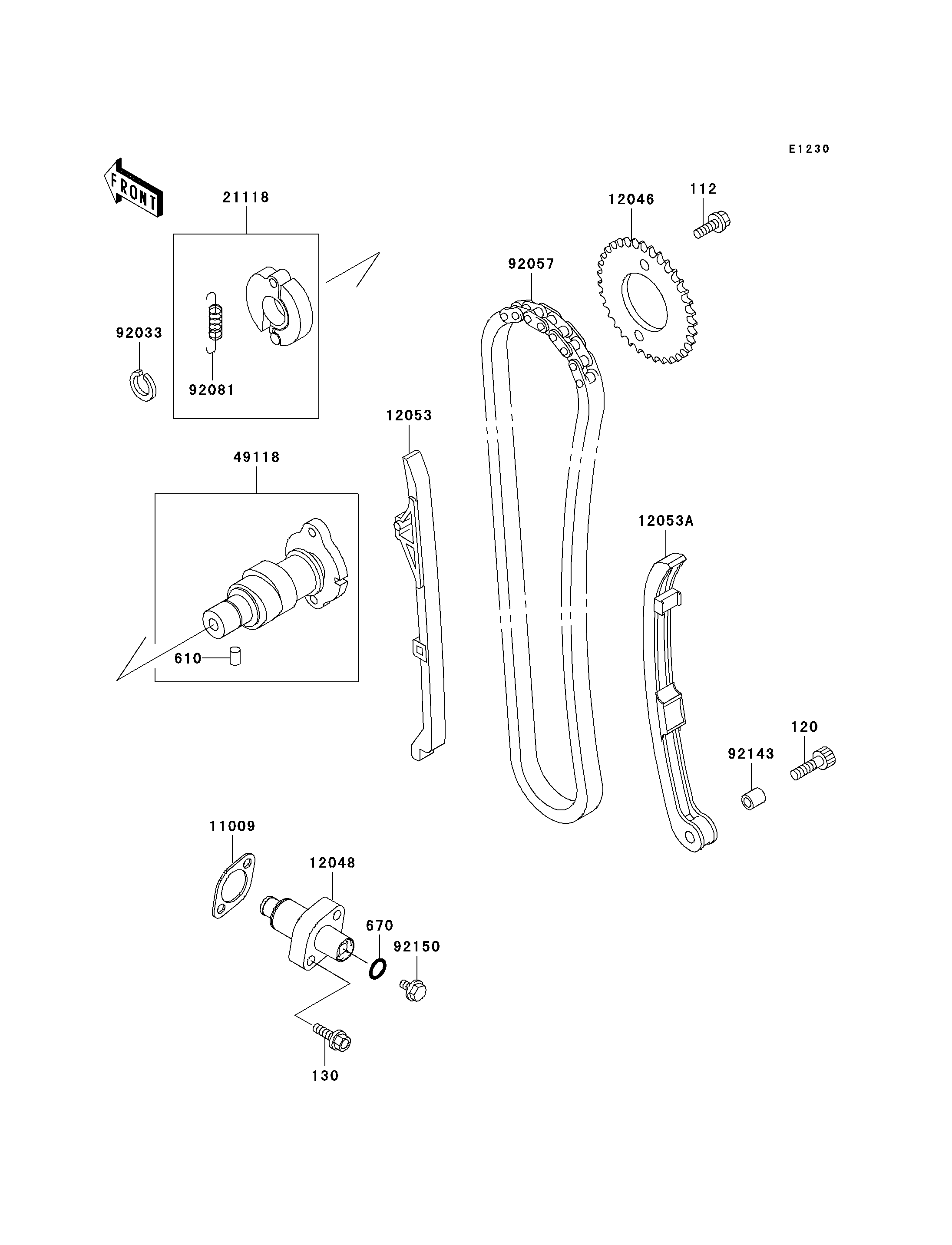

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X10 112 112G0610 2
BOLT-SOCKET,6X25 120 120P0625 1
BOLT-FLANGED,6X25 130 130J0625 2
ROLLER,4X6 610 610A0406 1
O RING 670 670D2010 1
GASKET,TENSIONER 11009 11009-1858 1
SPROCKET,CAM,38T 12046 12046-1131 1
TENSIONER-ASSY 12048 12048-1172 1
GUIDE-CHAIN,FR 12053 12053-1423 1
GUIDE-CHAIN,RR 12053A 12053-1424 1
DECOMPRESSOR 21118 21118-1082 1
CAMSHAFT-COMP 49118 49118-1201 1
RING-SNAP,18.7MM 92033 92033-1214 1
CHAIN,CAM,82RH2010-118L 92057 92057-1256 1
SPRING,DECOMPRESSOR 92081 92081-1674 1
COLLAR,6X8X10.2 92143 92143-1253 1
BOLT,TENSIONER 92150 92150-1381 1
