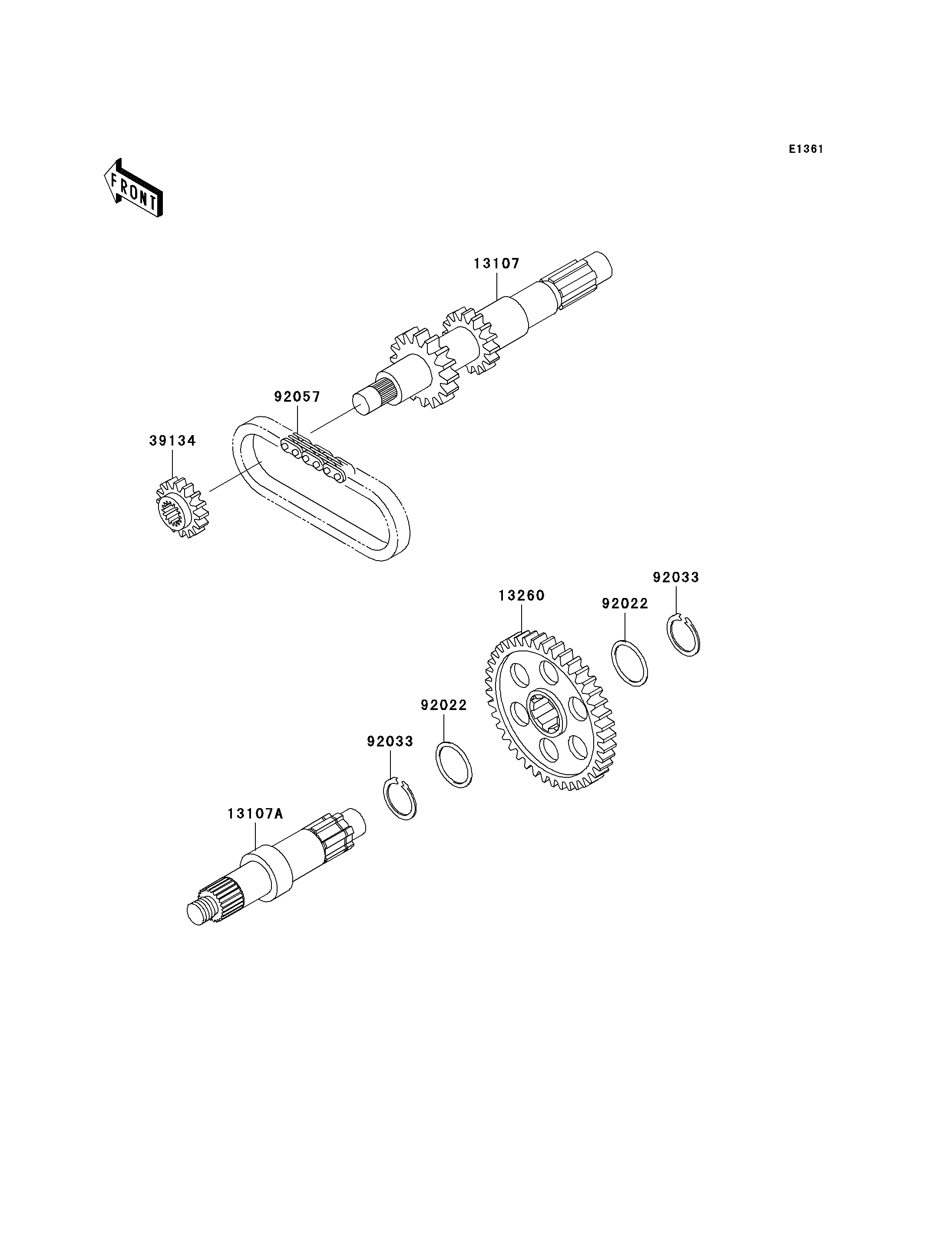

13107
13107A
13260
39134
92022
92022
92033
92033
92057
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,INPUT 13107 13107-1395 1
SHAFT,OUTPUT 13107A 13107-1396 1
GEAR,OUTPUT,44T 13260 13260-1736 1
SPROCKET-DRIVE,REVERSE,19T 39134 39134-1060 1
WASHER,28.1X34X1.0 92022 92022-1731 2
RING-SNAP,25.9X30.6X1.2 92033 92033-1037 2
CHAIN,REVERSE,81RH2520-52 92057 92057-1465 1
